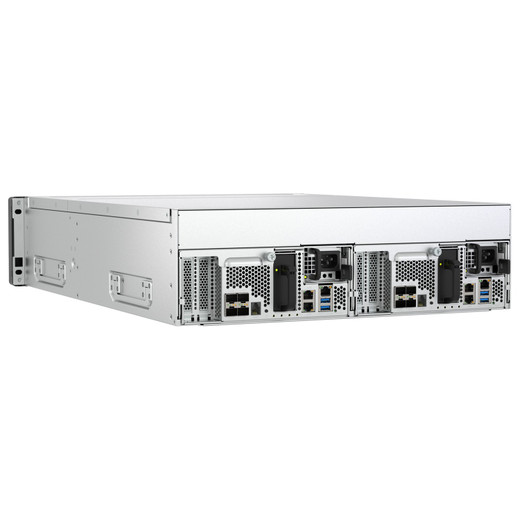

QNAP CTL-ES1686DC-2142IT-48G Dual-Controller FRU for ES1686dc R2

Overview

The CTL-ES1686DC-2142IT-48G is a replacement controller module assembly — a field-replaceable unit (FRU) — for the QNAP ES1686dc R2 enterprise NAS. Each unit ships as a matched pair of controllers, each carrying an Intel Xeon D-2142IT 8-core processor running at 1.90 GHz (burst to 3.0 GHz) with 48 GB of RAM per controller. This is the part to order when you need to restore dual-controller redundancy in a failed or degraded ES1686dc R2 chassis, or when upgrading from a legacy single-controller configuration. It is not a standalone device — it only operates inside the ES1686dc R2 chassis and has no function outside of it.

Compatibility

The CTL-ES1686DC-2142IT-48G is designed specifically for the QNAP ES1686dc R2 enterprise NAS array. The R2 chassis requires exactly two controller modules for active-active redundant operation; this FRU satisfies that requirement. Note that the legacy ES1686dc-2142IT-128G carries the same CPU and controller architecture but differs in total memory configuration — verify your chassis generation before ordering. This controller module is not interchangeable with other ES-series models or with QNAP's NAS storage desktop and rackmount lines outside the ES1686dc platform.

Installation Notes

Controller module replacement in the ES1686dc R2 is a hot-swap procedure in a live redundant configuration, but requires that the surviving controller remain fully operational and that the array is not in a degraded state before the swap begins. The Xeon D-2142IT is a 64-bit x86 architecture; firmware on the replacement module must match the running QES version on the surviving controller before reintegration. Consult the ES1686dc R2 hardware maintenance guide for slot orientation, ejector latch procedure, and post-insertion controller sync verification. No additional tools are required for the physical swap, but a console or SSH session to the surviving controller is necessary to confirm controller pairing completion.
