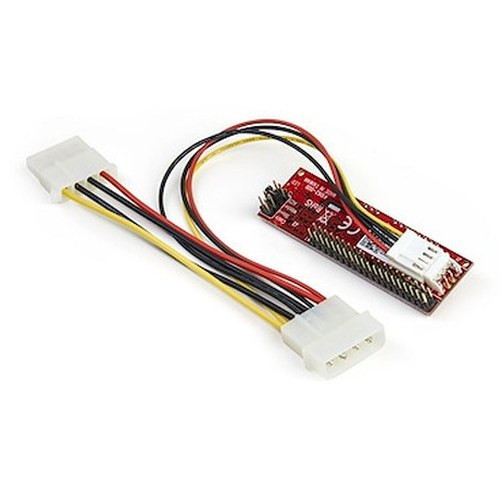

StarTech IDE2SAT2 IDE to SATA Hard Drive Adapter

Overview

The StarTech IDE2SAT2 is a compact adapter that bridges the gap between legacy IDE/PATA motherboards and modern SATA storage devices — whether that's a 2.5-inch or 3.5-inch SATA hard drive, optical drive, or Blu-ray/DVD/CD-ROM unit. If you're maintaining older workstations, industrial PCs, or embedded systems that shipped with IDE controllers and you need to drop in a current SATA drive without replacing the board, this adapter handles that conversion without requiring a PCIe slot or driver installation headaches. Built around the Marvell 88SA8052 chipset, it delivers a reliable translation layer rated to 133MB/s — matching the maximum throughput ceiling of the PATA/EIDE interface itself, so the adapter is never the bottleneck.

Key Features

• Marvell 88SA8052 Chipset: The 88SA8052 is a proven IDE-to-SATA bridge controller with wide drive compatibility. Choosing an adapter on a recognized chipset matters in environments where you can't afford to troubleshoot drive recognition issues after deployment.
• Up to 133MB/s Transfer Rate: The IDE2SAT2 supports the full ATA/133 ceiling — 133MB/s — so the adapter itself won't throttle your drive. Actual throughput is governed by the IDE controller on your motherboard, as it always has been.
• 2.5-Inch and 3.5-Inch SATA Drive Support: Works with both laptop-sized 2.5-inch SATA drives and full-size 3.5-inch SATA HDDs, giving you flexibility in tight chassis builds where you might be repurposing notebook drives to save space and power.
• Integrated SATA Data + Power Combo Connector (7+15 Pin): A single 22-pin SATA combo connector handles both data and power to the drive, keeping cable routing cleaner inside cramped legacy enclosures.
• 40-Pin IDE (EIDE/PATA) Interface: Connects directly to any standard 40-pin IDE header on the motherboard. No slot required, no driver disc needed in most cases — the board sees it as a standard IDE device.
• SP4 (Molex) Power Input: The adapter draws 5V and 12V from a standard 4-pin Molex connector already present in virtually every legacy system, so there's no power compatibility issue to solve.
• 5V Output to Drive: Regulated 5V output feeds the SATA drive's power requirements through the combo connector — relevant when using 2.5-inch SATA drives that run exclusively on 5V.
• Compact Form Factor — 3.0 x 0.8 x 0.9 Inches, 1 oz: At 29 grams and roughly the size of a matchbox, the IDE2SAT2 fits inside virtually any legacy chassis without physical clearance issues, even in small-form-factor systems.
• Operating Temperature 5°C to 50°C (40°F to 122°F): Suited to standard indoor rack rooms and office/industrial environments. Not rated for extended cold storage or high-heat industrial enclosures — plan accordingly.
• 2-Year Manufacturer Warranty: StarTech backs the IDE2SAT2 with a 2-year warranty, which is meaningful for adapters installed in long-running embedded or industrial systems where sourcing a replacement later can be disruptive.

Integration and Compatibility

The IDE2SAT2 is designed for 40-pin IDE (EIDE/PATA) controllers — the standard found on motherboards manufactured through the mid-2000s to early 2010s. It is not compatible with 44-pin IDE (the smaller connector used on 2.5-inch laptop IDE drives) without a separate adapter. SATA drive compatibility spans both 2.5-inch and 3.5-inch SATA hard drives as well as SATA optical drives including Blu-ray, DVD, and CD-ROM units. The Marvell 88SA8052 chipset is well-documented across community and industrial user bases, which is a practical advantage when integrating into a fleet of older machines where you want predictable behavior across units. Power requirements are modest: 5V and 12V from the Molex connector are standard in any ATX or legacy AT power supply, and the adapter outputs 5V to the SATA side, covering both 2.5-inch and most 3.5-inch SATA drives (note: some 3.5-inch SATA HDDs also require 12V — verify your specific drive's power requirements before assuming the combo connector alone will suffice).

For integrators maintaining aging NAS or surveillance recording appliances built on IDE platforms, the IDE2SAT2 provides a straightforward path to swapping in current SATA drives as IDE drives age out of service, extending equipment life without full hardware replacement cycles.

Frequently Asked Questions

Q: What drive sizes does the IDE2SAT2 support?

A: The IDE2SAT2 supports both 2.5-inch and 3.5-inch SATA drives, including hard drives and optical drives (Blu-ray, DVD, CD-ROM).

Q: What is the maximum data transfer rate of the IDE2SAT2?

A: The IDE2SAT2 supports up to 133MB/s — the full ATA/133 ceiling. Actual throughput is limited by the IDE controller on your motherboard, not by the adapter itself.

Q: What power connectors does the IDE2SAT2 use?

A: The adapter draws power from a standard 4-pin SP4 (Molex) connector accepting 5V and 12V DC inputs, and outputs 5V DC to the SATA drive via the 7+15-pin SATA combo connector.

Q: What chipset does the IDE2SAT2 use?

A: It uses the Marvell 88SA8052 IDE-to-SATA bridge controller, a well-supported chipset with broad drive compatibility.

Q: What is the warranty on the IDE2SAT2?

A: StarTech covers the IDE2SAT2 with a 2-year manufacturer warranty.

Q: What are the operating temperature limits for the IDE2SAT2?

A: The adapter is rated for operating temperatures between 5°C and 50°C (40°F to 122°F), suitable for standard indoor environments. Storage temperature range is -25°C to 80°C.

Karl Wilson

The IDE2SAT2 is one of those low-cost adapters that solves a very specific and increasingly common problem: you have a machine with a 40-pin IDE controller that still runs fine, but SATA drives have completely displaced IDE drives in the supply chain. The Marvell 88SA8052 chipset is the right foundation here — I've seen off-brand IDE-to-SATA adapters using undocumented controllers cause intermittent drive recognition failures that are nearly impossible to diagnose. The IDE2SAT2 at least gives you a known chipset to work with when something goes wrong.

Technical Highlights:

• 133MB/s ATA/133 ceiling: The adapter won't throttle you — it matches the maximum the IDE spec can deliver. If you're using a slower ATA/100 board, the controller governs throughput, not this adapter.
• Dual-voltage Molex input (5V + 12V): Standard in any legacy ATX power supply, so there are zero power compatibility surprises on installation day. The 5V output to the SATA drive side covers 2.5-inch SATA drives cleanly.
• 29g / 3.0 x 0.8 x 0.9-inch body: Small enough to mount in-line inside a small-form-factor chassis without blocking adjacent connectors or requiring any cable management heroics.

Deployment Considerations:

• Verify your specific 3.5-inch SATA drive's power requirements before installing. Some 3.5-inch SATA HDDs need 12V on the SATA power pins for spindle motor start-up — the IDE2SAT2 outputs 5V to the SATA side, which may not be sufficient for all 3.5-inch mechanical drives.
• Operating range tops out at 50°C (122°F). In poorly ventilated legacy rack enclosures where ambient temperatures can climb, confirm the installation environment stays within this ceiling during normal operation.

The IDE2SAT2 is best suited for IT asset life-extension projects — specifically older industrial PCs, embedded recording appliances, or workstations where the IDE motherboard is still functional and replacing it would mean re-qualifying the entire hardware stack. A 2-year warranty on a $20-range adapter installed in equipment that runs 24/7 is worth noting when you're budgeting maintenance cycles.
