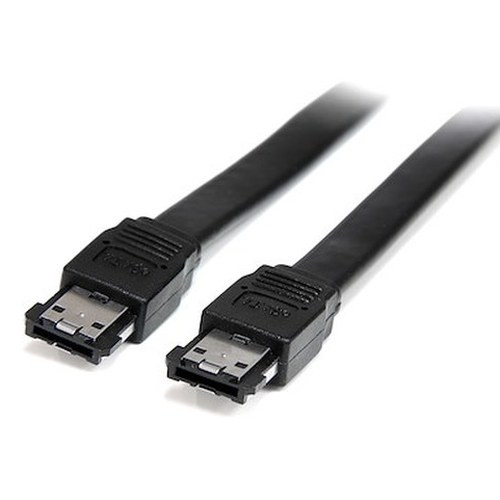

StarTech ESATA3 3ft eSATA to eSATA Data Cable

Overview

The StarTech ESATA3 is a 3-foot (36-inch) eSATA-to-eSATA cable built to Serial ATA III specifications, delivering up to 6 Gbps of data transfer throughput between a host system and an external SATA storage device. If you're connecting an external hard drive or SSD enclosure to a desktop or laptop with an eSATA port, this cable handles the full rated bandwidth of the SATA III interface — no adapters, no bandwidth bottlenecks from USB or Thunderbolt translation layers. At 0.6 in wide and 0.4 in tall, the cable profile is slim enough to route cleanly behind rack panels or through cable management channels without forcing awkward bends at the connector. Pair it with a compatible external storage enclosure for a direct, high-throughput connection.

Key Features

• 6 Gbps SATA III throughput: Certified to Serial ATA III Specifications, the ESATA3 passes the full 6 Gbps rated bandwidth of your drive interface — important when connecting modern SSDs or high-RPM hard drives where a slower cable would throttle sequential read/write speeds. No external power draw, no protocol overhead from USB-to-SATA bridges.
• 3-foot / 36-inch length: Long enough to reach an external drive sitting on a desktop shelf or inside a short-depth rack bay without slack loops that snag on other cables. Short enough that signal integrity stays clean — eSATA is sensitive to cable length, and 3 feet is well within the specification limit.
• Standard 7-pin eSATA connectors on both ends: Both Connector A and Connector B are 7-pin eSATA data connectors — the same interface on most laptop docking stations, desktop motherboards with eSATA headers, and external drive enclosures manufactured to SATA standards. No adapter required on either end.
• Slim 0.6 in x 0.4 in cross-section: The narrow cable body routes cleanly through cable management rings and behind rack blanks. In rack-mounted NVR or DVR environments where rear-panel space is tight, a cable this slim avoids the airflow obstruction that wider ribbon or bulk cables create.
• Rated operating range 20°C to 80°C: Covers the thermal envelope of most enclosed server rooms, desktop environments, and moderately warm equipment bays. If your rack cabinet runs hot — which is common in dense NVR deployments — the 80°C upper limit gives headroom that standard consumer-grade cables don't always provide.
• Storage conditions 23°C to 25°C, 40–60% humidity: These storage specs reflect the cable's tolerance for controlled warehouse or IT closet storage before deployment — relevant for integrators stocking spares in climate-controlled environments.
• Weighs 2.3 oz: Light enough that the cable exerts negligible mechanical stress on eSATA port connectors — a real concern on laptops and thin-bezel rack units where repeated cable pull stress can crack solder joints on the host port over time.

Integration and Compatibility

The ESATA3 is compatible with any device implementing the Serial ATA III specification on a standard 7-pin eSATA port. This includes external drive enclosures, laptop docking stations, desktop motherboards with rear eSATA headers, and rack-mounted storage units with eSATA interfaces. Note that eSATA does not carry power — if your external enclosure requires bus power, you will need a separate power source or an eSATAp (power over eSATA) adapter; standard eSATA ports and this cable carry data only. For integrators running network video recorders with eSATA expansion ports, this cable supports attaching external JBOD or single-drive enclosures for footage archive offload at full SATA III rates. Review your storage planning guide to size retention capacity before adding external drives to an NVR. For deployments requiring USB or NVMe-based external storage instead, see the broader data cable category for alternatives. If your system uses PoE-powered edge devices feeding a central recorder, also consider the recorder's PoE switch uplink capacity alongside storage throughput planning.

Frequently Asked Questions

Q: What is the maximum data transfer rate supported by the ESATA3?

A: The ESATA3 is rated for 6 Gbps, compliant with Serial ATA III Specifications. This is the maximum bandwidth the SATA III interface supports, so the cable does not create a bottleneck for any current SATA III drive.

Q: Does the ESATA3 cable carry power to the connected drive?

A: No. Standard eSATA connectors (7-pin data) carry data signals only. The connected external drive or enclosure requires its own power source. If you need power delivery over the cable, you would need an eSATAp port and a compatible eSATAp cable, which is a different product.

Q: What are the connector types on each end of the ESATA3?

A: Both ends use a 7-pin eSATA data connector — the same standard interface found on eSATA-equipped laptops, desktops, docking stations, and external drive enclosures. No adapters are needed for standard eSATA-to-eSATA connections.

Q: Is the ESATA3 suitable for use in warm equipment enclosures?

A: The cable is rated for operating temperatures between 20°C and 80°C, which covers the thermal range of most IT equipment bays, rack cabinets, and desktop environments. Verify that your enclosure does not regularly exceed 80°C ambient at the cable routing path.

Q: Can the ESATA3 be used with an NVR for external storage expansion?

A: Yes, provided the NVR has an active eSATA port that supports external drive attachment. Many NVRs include eSATA ports specifically for attaching external enclosures to expand footage retention capacity. The 6 Gbps rated throughput of the ESATA3 will not limit transfer speed for this application.

Q: Is the ESATA3 backward compatible with SATA II or SATA I devices?

A: The Serial ATA standard is backward compatible — a SATA III cable will work with SATA II (3 Gbps) or SATA I (1.5 Gbps) devices, but data transfer will operate at the lower speed supported by the connected device. The ESATA3 itself does not restrict backward compatibility.

Ted Perry

The ESATA3 is one of those cables that matters most when people overlook it. At 6 Gbps SATA III rated throughput, this cable won't throttle a modern SSD — and in NVR-adjacent storage expansion scenarios, that ceiling matters more than people realize. I've seen integrators wire up a capable NVR with a quality external enclosure and then discover the cable linking them was rated for SATA II, cutting available throughput to 3 Gbps. The ESATA3 eliminates that variable.

Technical Highlights:

• 6 Gbps SATA III compliance: Full Serial ATA III rated throughput — no speed-grade ambiguity, no partial compliance. If the NVR or host system supports SATA III, this cable is not the limiting factor.
• 80°C operating ceiling: Most data cables are spec'd to 70°C. The ESATA3's 80°C upper operating limit gives real margin in rack cabinets where exhaust heat accumulates near rear-panel cable runs — a detail worth noting in dense multi-NVR installs.
• 2.3 oz / slim 0.6 x 0.4 in profile: Lightweight and narrow enough to route without stressing connectors or blocking adjacent ports. On rack units with closely spaced rear eSATA headers, cable body width is a real constraint.

Deployment Considerations:

• The 3-foot length covers most desktop and 1U–2U rack scenarios cleanly, but plan your cable run before ordering — eSATA is not a long-haul interface, and routing an excessively long cable in a confined bay introduces signal integrity risk that a shorter run avoids entirely.
• No power delivery — this is a data-only cable. If your external enclosure requires bus power (common with single-drive portable enclosures), confirm it has its own AC adapter or USB power input before assuming the ESATA3 will bring it up.

For rack-mounted NVR deployments where an eSATA external archive enclosure needs to sustain burst write speeds during footage export or overflow recording, the ESATA3 is the right cable for that specific connection — spec-matched, thermally appropriate, and built to the standard that keeps the drive interface running at rated speed.
