StarTech USB3S2ESATA3 USB 3.0 to eSATA Adapter Cable

Overview

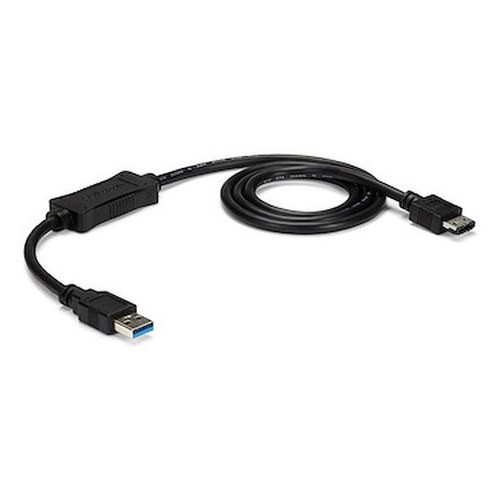

The StarTech USB3S2ESATA3 is a 1-meter adapter cable that bridges a USB 3.2 Gen 1 (5 Gbps) Type-A port to a 7-pin eSATA storage device — a direct, no-enclosure-required path for connecting external SATA drives to any laptop or desktop with a standard USB Type-A port. If you have an eSATA hard drive or dock sitting idle because your newer system dropped the dedicated eSATA interface, this cable solves the problem without adding a PCIe card or USB enclosure to the chain.

At 2.4 oz (67.5g) and just 0.4 inches thick, the USB3S2ESATA3 sits flat in a tool bag or laptop sleeve. The 35.8-inch cable gives you enough reach to connect a desktop drive bay or external dock without fighting cable tension at the port.

Key Features

• USB 3.2 Gen 1 Host Interface (5 Gbps): The USB Type-A host connector runs at USB 3.2 Gen 1 speeds — up to 5 Gbps — which means large sequential transfers to an external SATA drive won't bottleneck at the interface. Backing up a 2TB surveillance archive to an eSATA dock takes roughly the same time as a native USB 3.0 transfer.
• eSATA Device Side Rated to 6 Gbps: The 7-pin eSATA connector supports drives rated up to 6 Gbps (SATA III), so you're not underutilizing a fast drive. In practice, throughput is capped by the USB 3.2 Gen 1 link at 5 Gbps, but you won't introduce an additional bottleneck on the storage side.
• Up to 4TB Drive Support: Verified support for drives up to 4TB — sufficient for a single external surveillance storage drive, NAS expansion disk, or archival HDD in a dock. Drives larger than 4TB are not confirmed by the manufacturer for this adapter.
• OS-Independent Operation: No driver installation required. The adapter operates as a standard USB mass storage device across Windows, macOS, Linux, and other operating systems — useful in mixed-OS environments or when provisioning storage on embedded appliances that can't run third-party driver packages.
• 1-Meter Cable Length: At 35.8 inches (91 cm), the cable reaches comfortably from a desktop USB port to a drive dock on the same desk or rack shelf — long enough to avoid stress on the connectors, short enough to keep cable runs tidy in a wiring-conscious installation.
• Compact and Portable Form Factor: At 2.4 oz and 0.9 inches wide, this adapter travels easily. Field technicians moving between sites with an eSATA drive for data transfer or evidence offload can keep this in a kit bag without adding meaningful weight or bulk.
• Defined Operating Environment: Rated for 0°C to 60°C operating temperature and 40%–85% RH humidity — fine for standard office, server room, or data center environments. Not designed for outdoor or uncontrolled industrial environments.

Integration and Compatibility

Because the USB3S2ESATA3 presents as a standard USB mass storage device, it integrates with any host that supports USB 3.0 or later — including NVRs, DVRs, and embedded Linux appliances that expose a USB Type-A port for external storage expansion. This makes it a practical option for adding temporary eSATA-connected storage to a network video recorder during a footage export or archive operation, without needing a permanent internal modification.

The adapter does not supply power to the connected drive. eSATA is a data-only interface, so the external drive must have its own power source — either from the dock, an enclosure with an AC adapter, or a separate power supply. Plan for this before deployment; a bus-powered eSATA drive will not function with this cable alone.

For environments where you're building out or expanding external storage infrastructure alongside IP surveillance systems, this adapter pairs naturally with eSATA docks used for staged archival or evidence export workflows. Pair it with a USB hub if you need to free up a port on a host device with limited USB availability.

Frequently Asked Questions

Q: What is the maximum drive capacity supported by the USB3S2ESATA3?

A: StarTech specifies a maximum drive capacity of 4TB for the USB3S2ESATA3. Drives larger than 4TB are not confirmed to be supported.

Q: Does the USB3S2ESATA3 require driver installation?

A: No. The USB3S2ESATA3 is OS-independent and functions as a standard USB mass storage device without additional drivers on Windows, macOS, Linux, or other operating systems.

Q: Does this adapter supply power to the connected eSATA drive?

A: No. eSATA is a data-only interface. The connected drive must have its own external power source — typically an AC-powered dock or enclosure. Bus-powered drives will not operate through this cable alone.

Q: What is the actual data transfer speed of the USB3S2ESATA3?

A: The host USB interface operates at up to 5 Gbps (USB 3.2 Gen 1). The eSATA connector supports drives rated up to 6 Gbps (SATA III), but real-world throughput is limited to 5 Gbps by the USB link.

Q: What is the warranty on the USB3S2ESATA3?

A: StarTech provides a 2-year manufacturer warranty on the USB3S2ESATA3.

Q: How long is the USB3S2ESATA3 cable?

A: The cable is 1 meter (3.3 feet / 35.8 inches) in length.

James Everett

The USB3S2ESATA3 is the kind of cable that solves a specific problem cleanly: you have an eSATA-only drive or dock and a modern host with no eSATA port, and you need 5 Gbps throughput without adding enclosures or PCIe adapters to the equation. The USB 3.2 Gen 1 host interface delivers up to 5 Gbps — enough to push large video archive exports to an eSATA dock at rates that won't make a shift technician wait around.

Technical Highlights:

• 5 Gbps USB 3.2 Gen 1 Interface: Sustained transfers of large surveillance footage files — think multi-gigabyte H.264/H.265 recordings — complete in a fraction of the time compared to USB 2.0 adapters (480 Mbps). The throughput difference is tangible on any transfer over a few hundred gigabytes.
• 4TB Max Drive Support: Covers the full range of single-drive eSATA storage commonly deployed in NVR expansion or archival workflows — a 4TB drive holds roughly 20–30 days of continuous 1080p recording from a single camera at typical bitrates.
• OS-Independent Operation: No driver package to manage, which matters on locked-down appliances, embedded Linux NVRs, or Windows Server environments where adding unsigned drivers triggers policy exceptions.

Deployment Considerations:

• Plan for separate drive power before installing — the eSATA interface carries data only. An unpowered drive dock will not spin up through this cable, and this is the most common field error when deploying the adapter in a hurry.
• Operating temperature tops out at 60°C, which is standard for a conditioned server room but rules out unventilated enclosures or outdoor utility cabinets without active cooling.

This adapter fits best in a surveillance or IT environment where an operator needs to offload footage from an eSATA-connected storage device to a modern laptop or NVR host for evidence export, archive rotation, or drive migration — particularly when adding a PCIe eSATA card isn't an option on a sealed or compact system.
