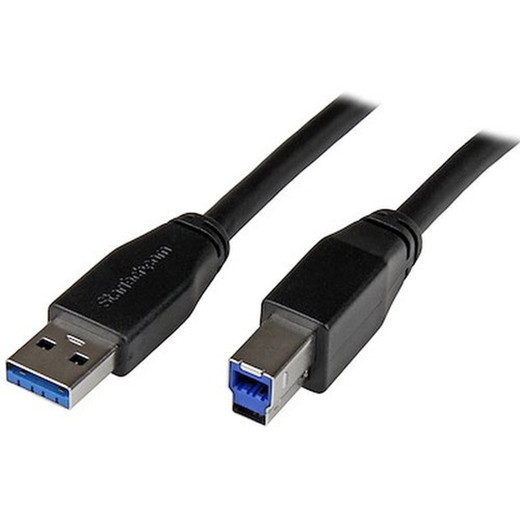

StarTech USB3SAB10M 10-Meter USB 3.0 Active Extension Cable

Overview

The StarTech USB3SAB10M is a 10-meter (33-foot) active USB 3.0 Type-A to Type-B cable built for deployments where USB peripherals need to sit well beyond the passive 3-meter limit — without a powered hub, without a repeater box on the desk, and without signal degradation at distance. It uses a VIA VL211 active chipset embedded in the cable itself to regenerate the signal inline, delivering the full USB 3.2 Gen 1 specification of 5 Gbps end-to-end. For security integrators wiring USB cameras, biometric readers, or enrollment stations to wall-mounted workstations, this cable closes the gap between where equipment physically needs to live and where USB signal normally dies.

The 24/28 AWG conductor configuration is meaningful here: 24 AWG for power lines means the peripheral at the far end receives adequate current even at full 10-meter extension, while 28 AWG data conductors keep the cable manageable and flexible for routing through conduit or cable trays. The aluminum-Mylar foil combined with braid shielding suppresses EMI from adjacent power runs — a real concern in server rooms and access-control head-end closets where switching power supplies and fluorescent ballasts share wall space with data cabling.

Key Features

• Active VIA VL211 Chipset — 10m Without a Hub: Passive USB 3.0 cables top out around 3 meters before signal integrity degrades. The VL211 repeater built into the USB3SAB10M regenerates the signal within the cable itself, so you get the full 5 Gbps throughput at 10 meters with no external repeater or powered hub required. That simplifies rack layouts and eliminates one more powered device to manage.
• 5 Gbps USB 3.0 / USB 3.2 Gen 1 Throughput: At 5 Gbps, this cable handles high-bandwidth USB peripherals without bottlenecking — think USB 3.0 cameras streaming uncompressed or lightly compressed video, fingerprint enrollment devices, or external SSDs used for on-site evidence backup. USB 2.0 devices are backward compatible, so enrollment readers and HID devices work on the same cable.
• USB Type-A to USB 3.2 Type-B Connectors: The Type-B end mates with the upstream port found on most USB docking stations, printers, scanners, and industrial peripherals. The Type-A end plugs into a standard host port on a workstation or NVR. No adapters needed for the most common peripheral connection in a security head-end.
• Dual-Layer Shielding — Aluminum-Mylar Foil + Braid: The foil layer blocks high-frequency EMI while the braid handles lower-frequency interference and adds mechanical protection. In environments with UPS units, PoE switches, and AC wiring in adjacent conduit, this shielding combination keeps data clean without requiring shielded conduit for the USB run itself.
• 24/28 AWG Conductor Gauge: The heavier 24 AWG power conductors matter at 10 meters — thinner wire would cause enough voltage drop to starve bus-powered peripherals. If you have had bus-powered devices randomly disconnect at distance on passive cables, insufficient power delivery at the peripheral is usually the cause. This gauge addresses that directly.
• PVC Jacket — 5°C to 70°C Operating Range: The PVC outer jacket is suited for indoor permanent installation in conduit or cable management. The 5–70°C operating envelope covers standard server room and office environments. This is not an outdoor-rated cable — keep it inside controlled spaces or inside conduit if routing through uncontrolled areas.
• 2-Year Manufacturer Warranty: StarTech backs the USB3SAB10M with a 2-year warranty, consistent with their commercial cable line. For permanent infrastructure installs, that provides a defined support window without relying on informal replacement arrangements.

Integration and Compatibility

The USB3SAB10M works with any USB 3.0 or USB 2.0 host — Windows, Linux, and macOS systems recognize the VIA VL211 active chipset without driver installation in virtually all modern operating systems. On the peripheral side, the USB Type-B connector is compatible with the upstream port on USB hubs, external drives, document scanners, label printers, and USB-connected access control enrollment devices. If your deployment uses a PoE switch infrastructure with USB-connected management workstations, this cable handles the workstation-to-peripheral run cleanly at distances that passive cables cannot reach.

For integrators pairing this cable with network video recorders or enrollment stations in head-end closets, the 10-meter reach means the peripheral can live at a user-accessible position (desk, counter, or kiosk) while the host machine stays in a locked rack. The operating humidity range of 10–80% (non-condensing) and storage temperature range of -25°C to 80°C mean it can be warehoused in a truck or storage room without issue between installations. Refer to a cable management guide for best practices on routing active USB cables alongside power and data infrastructure.

Frequently Asked Questions

Q: Does the USB3SAB10M require a driver to function?

A: No. The VIA VL211 active chipset is recognized natively by modern operating systems (Windows, Linux, macOS) without additional driver installation. It functions as a transparent USB 3.0 extension from the host's perspective.

Q: Can bus-powered USB devices operate reliably at the full 10-meter length?

A: Yes, in most cases. The 24 AWG power conductors are specifically sized to minimize voltage drop over the 10-meter run, which is the primary reason bus-powered devices fail at distance on thinner passive cables. That said, high-draw bus-powered devices near the USB specification limit may benefit from a self-powered hub at the peripheral end as a precaution.

Q: Is the USB3SAB10M backward compatible with USB 2.0 peripherals?

A: Yes. USB 3.0 is backward compatible with USB 2.0 devices. A USB 2.0 peripheral connected to the Type-B end will operate at USB 2.0 speeds over this cable without issue.

Q: What is the warranty on the USB3SAB10M?

A: StarTech provides a 2-year manufacturer warranty on the USB3SAB10M.

Q: Can this cable be used outdoors or in uncontrolled temperature environments?

A: The operating temperature range is 5°C to 70°C and the jacket is PVC — this is an indoor cable. It is not weather-rated for direct outdoor exposure. Route it through conduit if it must pass through uncontrolled spaces such as drop ceilings with variable temperature.

Q: Will the USB3SAB10M work if I need to extend beyond 10 meters?

A: No. A single USB3SAB10M is rated to 10 meters. USB active cables cannot be daisy-chained to extend range further — you would need a dedicated USB over Cat5/Cat6 extender or a USB-over-IP device for runs beyond 10 meters.

Ted Perry

The spec that matters most on the USB3SAB10M is the 24 AWG power conductor gauge — it's the detail that separates a cable that actually works at 10 meters from one that lets bus-powered peripherals brown out and disconnect intermittently. I've seen integrators burn hours troubleshooting what looks like a driver or firmware issue on an enrollment reader, only to find the root cause is voltage sag on an undersized passive extension. The VIA VL211 chipset handles signal regeneration, but without adequate wire gauge on the power pair, you're still starving the peripheral.

Technical Highlights:

• VIA VL211 Active Chipset: Regenerates the USB 3.0 signal inline at the cable level — no external repeater, no powered hub, no additional wall-wart. Reduces head-end clutter and eliminates one powered device from the failure surface.
• 5 Gbps Throughput at 10 Meters: Full USB 3.2 Gen 1 bandwidth maintained over the entire 10-meter run. Passive cables lose signal integrity well before 5 meters at USB 3.0 speeds — the active design closes that gap without compromise.
• Foil + Braid Dual Shielding: The aluminum-Mylar foil layer handles high-frequency EMI while the braid addresses lower-frequency noise and flex stress. In head-end closets with switching power supplies and PoE infrastructure on adjacent cable runs, this combination keeps USB data clean without requiring shielded conduit.

Deployment Considerations:

• The PVC jacket and 5–70°C operating temperature spec mean this cable is designed for indoor conditioned spaces — do not route it through exterior walls or unconditioned attic spaces without additional conduit protection.
• Active USB cables cannot be daisy-chained. If your run exceeds 10 meters, you need a USB-over-Cat6 extender, not a second USB3SAB10M in series — this is a common field mistake worth flagging during pre-installation planning.

This cable fits cleanly into security head-end builds where biometric enrollment stations, USB-connected label printers, or document scanners need to live at a user counter 8–10 meters from a locked equipment rack — the active design handles that distance reliably and the 2-year warranty provides a defined support window for permanent infrastructure installs.
