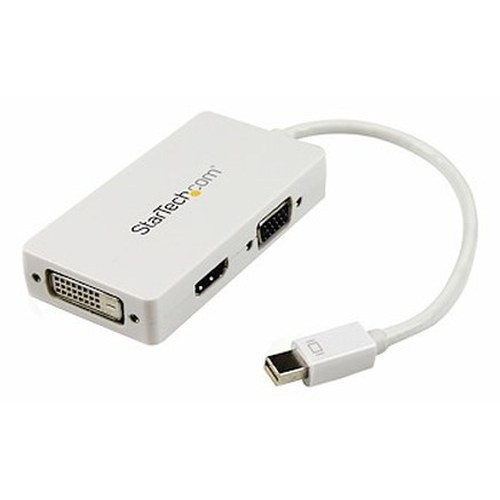

StarTech MDP2VGDVHDW Mini DisplayPort to HDMI/VGA/DVI Adapter

Overview

The StarTech MDP2VGDVHDW solves a problem every security integrator and IT tech runs into on install day: a workstation, NVR, or laptop with a Mini DisplayPort output and a monitor, projector, or video wall input that isn't Mini DisplayPort at all. Rather than stocking three separate single-purpose adapters, the MDP2VGDVHDW consolidates HDMI, VGA, and DVI-D output into one compact white adapter with a 5.9-inch integrated cable, so one part number covers three different destination connectors on a control-room cart or a field laptop bag.

Key Features

• Mini DisplayPort input: matches the Mini DP output found on many compact PCs, thin clients, and laptops used to drive monitoring station displays — no full-size DisplayPort adapter needed in the chain.
• 4K at 30Hz over HDMI: when connected to an HDMI display, MDP2VGDVHDW passes a 3840x2160 signal at 30Hz — enough for a 4K monitoring wall display running static camera tiles or a VMS dashboard where 60Hz motion smoothness isn't the priority.
• 1920x1200/1080p on digital and analog outputs: the DVI-D and VGA paths top out at 1920x1200/1080p, which covers the vast majority of legacy monitors and projectors still in service in control rooms and conference spaces.
• 7.1-channel HDMI audio: the HDMI leg carries surround audio alongside video, useful if the destination display or AV receiver handles both audio and video zone monitoring.
• Three output connectors, one adapter: HDMI, VGA, and DVI-D outputs mean a single MDP2VGDVHDW replaces three separate single-purpose adapters in a field tech's kit — fewer SKUs to stock, fewer wrong-adapter trips back to the van.
• Compact footprint: at 10.6 x 1.8 x 0.6 inches and 2.0 oz, it tucks behind a monitor or inside a rack without adding meaningful bulk or weight to the cable run.
• 0C to 70C operating range: rated for standard indoor equipment closets and control rooms; not a ruggedized outdoor part, but it tolerates a warm, poorly-ventilated rack better than consumer-grade adapters.
• 10 to 85% RH operating humidity: gives it headroom in mechanical rooms or non-climate-controlled equipment spaces where humidity swings more than a typical office.
• White housing: blends with light-colored workstation enclosures and wall plates instead of standing out as an obvious add-on cable.

Integration & Compatibility

MDP2VGDVHDW is a passive-format-converting adapter for any source device with a Mini DisplayPort output — common on compact form-factor PCs used to drive video management system (VMS) workstations and monitoring displays. Pair it with network video recorders or a monitoring PC where the graphics card outputs Mini DP but the available display only accepts HDMI, VGA, or DVI-D. For multi-monitor security operations centers running several displays off one IP camera system, check a VMS architecture guide before standardizing on adapter type across the room — mixing HDMI 4K and legacy VGA displays on the same workstation is common and this adapter handles both ends of that spread. The broader StarTech catalog carries matching cables and adapters if the install calls for extension runs beyond the 5.9-inch built-in lead.

What's in the Box

The MDP2VGDVHDW ships as a single adapter unit with the Mini DisplayPort input and HDMI, VGA, and DVI-D outputs built onto one 5.9-inch cable — no separate dongles or loose parts to lose in a field kit.

Frequently Asked Questions

Q: What is the maximum resolution the MDP2VGDVHDW supports?

A: Over HDMI it supports up to 4K (3840x2160) at 30Hz. Over the DVI-D and VGA outputs, maximum resolution is 1920x1200/1080p.

Q: Does the MDP2VGDVHDW carry audio?

A: Yes, when using the HDMI output the adapter supports 7.1-channel audio. The VGA and DVI-D outputs are video-only.

Q: Can I use this adapter with all three output types at once?

A: No — connect to one destination display at a time using whichever of the three output connectors (HDMI, VGA, or DVI-D) matches that display.

Q: What's the warranty on the MDP2VGDVHDW?

A: It carries a 3-year manufacturer warranty.

Q: What operating environment is the MDP2VGDVHDW rated for?

A: 0C to 70C operating temperature and 10-85% RH operating humidity, suitable for standard indoor equipment rooms and control room racks.

Eden Phillips

I keep an MDP2VGDVHDW in my install kit specifically for control-room jobs where the PC has Mini DisplayPort but I don't know in advance whether the wall monitor is HDMI, older VGA, or DVI-D — one adapter, three possible outcomes, zero return trips.

Technical Highlights:

• 4K at 30Hz over HDMI: enough pixel density for a static VMS dashboard tile wall; if you need 60Hz for smooth motion review, plan around that ceiling before you spec it for a live-motion monitoring wall.
• 1920x1200/1080p on VGA and DVI-D: matches the resolution ceiling of most legacy monitors still deployed in control rooms, so you're not leaving performance on the table on the analog leg.
• 0C to 70C operating range with 10-85% RH: comfortable in a warm equipment closet or rack that isn't perfectly climate-controlled, without needing an industrial-rated part.

Deployment Considerations:

• The 5.9-inch built-in cable is short by design — plan for the adapter to sit right at the PC's Mini DP port, not to span any real distance to the display; use a separate extension cable if the monitor is more than a few inches away.
• Only one output connector is active per connection — you can't feed HDMI and VGA displays simultaneously from a single MDP2VGDVHDW, so multi-display fanout still needs a dedicated splitter or multiple adapters.

This is the right part for a security operations center refresh where the new monitoring PCs output Mini DisplayPort but the room still has a mix of older VGA projectors and newer HDMI displays — one adapter type to stock instead of three.
