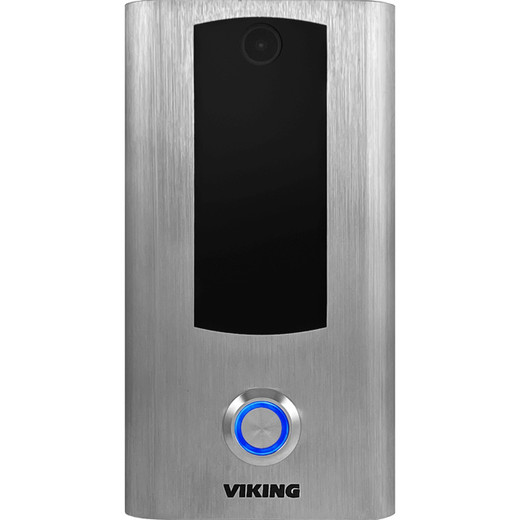

Viking X-205-SS 1080p IP Entry Phone Stainless Steel PoE

Viking Electronics X-205-SS Compact IP Entry Phone with HD Video

Overview

The Viking Electronics X-205-SS is a SIP-based IP video entry phone purpose-built for demanding entry-control applications where environmental exposure, aesthetics, and call quality all matter. The surface-mount stainless steel unit delivers 1080p video over standard SIP infrastructure — no proprietary server required — making it a practical fit for commercial buildings, industrial sites, and secure facilities already running a VoIP or access control platform. The X-205-SS (often searched as X 205 SS) mounts directly to a single-gang electrical box or flat wall/post surface, keeping the installation footprint minimal.

Key Features

• 1080p SIP Video Calling at 15 FPS: Full HD resolution over H.264 or MJPEG encoding means video evidence from entry events is forensically usable — faces, badges, and vehicle plates read clearly. At 15 FPS the stream stays bandwidth-friendly without dropping to slideshow territory on busy networks.
• 126° Wide Viewing Angle: A 126-degree horizontal field captures the full width of most vestibule and doorway approaches in a single fixed lens — no PTZ required, no blind corners on a standard door frame. Pair this with a NVR or VMS via the separate 1080p NVR stream with audio for continuous recording alongside active SIP calls.
• Dual NVR Stream with Audio: Unlike intercoms that only record during active calls, the X-205-SS supports a dedicated NVR stream with audio up to 1080p — continuous recording independent of call state. This matters for audit trails in access-controlled lobbies.
• PoE Class 1 Under 4 Watts: Drawing less than 4W, this is among the lowest-power PoE devices you will deploy. Standard 802.3af switches power it without any per-port budget concerns — a single PoE port handles the entire device including video and audio. No local power supply, no conduit for 120V.
• IP66 with EWP to 100% Humidity: The IP66 rating blocks direct rain and dust ingress. The Enhanced Weather Protection variant (X-205-SS-EWP) extends to 100% humidity for truly exposed outdoor installations. The -40°F to 140°F operating range covers northern Canadian winters and uncooled equipment rooms in desert climates equally.
• 316 Stainless Steel, #4 Brushed, 16-Gauge: 316 SS resists chloride corrosion — the right call for coastal, food-processing, and industrial-wash-down environments where 304 SS or powder-coated steel would pit or blister within a year. The #4 brushed finish reads as commercial-grade without looking institutional.
• 90 dB SPL Speaker at 1 Meter: Loud enough to cut through loading dock noise or a busy lobby without a separate amplifier. G.711u, G.711a, and G.722 audio codec support means wideband HD voice on systems that support G.722 — noticeably clearer than standard narrowband for visitor-to-receptionist calls.
• 2A Relay Contacts: The onboard relay contacts handle electric strikes and magnetic locks directly — no separate relay board or intercom controller needed for basic door-release applications. Confirm lock current draw against the 2A rating before wiring high-current mag-locks.
• SIP 2.0 RFC3261 and 1000BASE-T: Native SIP 2.0 compliance means the X-205-SS registers to any standards-based PBX or SIP proxy — Cisco, Avaya, FreePBX, 3CX. The gigabit network port handles any campus LAN without speed negotiation issues. Explore the full Viking Electronics intercom and entry phone line for companion indoor stations and system accessories.

Integration and Compatibility

The X-205-SS integrates with any SIP 2.0 RFC3261-compliant PBX or soft-switch for live video calling, while the independent NVR stream connects to ONVIF-compatible video management systems for continuous recording. Relay contacts support most electric strikes and fail-secure/fail-safe magnetic locks rated under 2A. For access control integration, the SIP path handles visitor-to-guard calling while the NVR stream handles evidence retention — both run simultaneously over a single PoE connection on any IEEE 802.3af switch.

Frequently Asked Questions

Q: What PoE standard does the X-205-SS require?

A: PoE Class 1, IEEE 802.3af. Total draw is under 4 watts, so any 802.3af-capable switch port will power it with margin to spare. No PoE+ (802.3at) required.

Q: Can the X-205-SS record video continuously, or only during active calls?

A: It supports a dedicated NVR stream with audio up to 1080p that runs independently of SIP call state. Connect it to any compatible NVR or VMS for continuous recording.

Q: What is the video resolution and frame rate?

A: Up to 1080p at up to 15 FPS using H.264 or MJPEG encoding.

Q: Is the X-205-SS suitable for outdoor installation in cold climates?

A: Yes. The operating temperature range is -40°F to 140°F (-40°C to 60°C) and the IP66 rating blocks rain and dust. For 100% humidity or wash-down environments, consider the X-205-SS-EWP variant.

Q: Will the X-205-SS work with my existing SIP PBX (Cisco, FreePBX, 3CX)?

A: The unit is SIP 2.0 RFC3261 compliant, so it registers to any standards-based SIP proxy or PBX. Vendor-specific SIP feature sets (attended transfer, BLF) depend on your PBX configuration.

Q: Can I use the relay contacts to control a magnetic lock directly?

A: The relay contacts are rated at 2 amps. Most fail-safe magnetic locks draw more than 2A — verify your lock's current rating and use a dedicated relay or lock power supply if it exceeds that limit.

Marty Allison

The spec that drives my recommendation of the X-205-SS for most commercial entry-phone deployments is the sub-4W PoE Class 1 draw — in a multi-door installation, that means every port on a standard 802.3af switch handles a fully functional 1080p video entry phone without any power budget arithmetic.

Technical Highlights:

• 316 Stainless, 16-Gauge: 304 SS and powder coat both fail within 18 months in coastal and food-processing environments. 316 SS handles chloride exposure that would pit lesser faceplates — the #4 brushed finish holds up under daily contact and cleaning cycles.
• Dual-Stream Architecture: SIP video call to your PBX plus independent NVR stream with audio to your recorder — both running simultaneously over one cable, one PoE port. Most entry phones force you to choose one or the other.
• -40°F to 140°F Range: That lower bound is genuine cold-weather spec, not a marketing estimate. Northern sites with unheated vestibule enclosures and equipment closets in hot climates are both covered without a heater kit or separate enclosure.

Deployment Considerations:

• The relay contacts top out at 2A — audit your electric strike or mag-lock current spec before wiring direct. High-current locks need an interposing relay or dedicated lock power supply in the door frame.
• At 15 FPS maximum, the video stream is not suited for fast-motion forensic analysis. For loading dock or vehicular gates where motion blur at speed matters, supplement with a dedicated IP surveillance camera on the same scene.

The X-205-SS is the right choice for commercial lobbies, industrial access points, and food-processing facilities where corrosion resistance, SIP integration, and continuous NVR recording need to coexist on a single low-power cable run.
