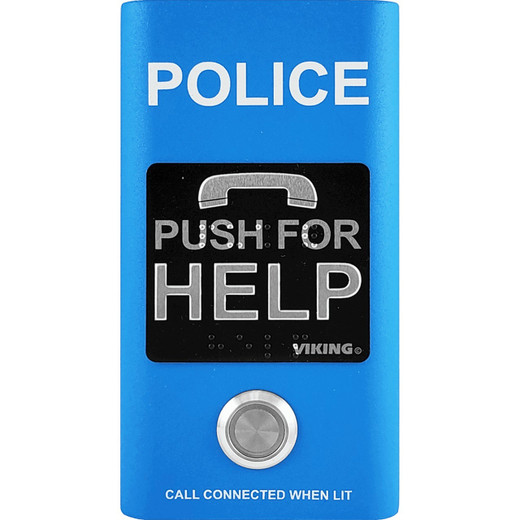

Viking Compact Emergency Phone Surface Mount Blue Police - E-1600-BLPA

Viking Electronics E-1600-BLPA Compact Blue Police Emergency Phone — Surface Mount

Overview

The Viking Electronics E-1600-BLPA is a compact, surface-mount emergency phone built for public safety applications — parking structures, campuses, transit platforms, and any facility where a visible, dedicated emergency call point is a code or policy requirement. At 5.75" x 3.08" x 1.05" and 2.5 lbs, the E-1600-BLPA (often searched as E 1600 BLPA) installs cleanly into tight wall-mount locations where a full-size call station won't fit, while the blue powder-paint finish with stamped POLICE verbiage ensures it reads instantly in an emergency. It draws power entirely from the phone line, which eliminates the need for a separate power circuit — a meaningful simplification when running conduit to remote locations. Explore the full Viking Electronics emergency communications line for additional configurations in the 1600A Series.

Key Features

• Phone-Line Powered Operation: The E-1600-BLPA requires no dedicated power supply or electrical circuit — it runs entirely off the telephone line. That means no transformer, no conduit for 120V, and no coordination with an electrician for the power rough-in. For parking deck columns, stairwells, and remote campus locations, this is a real installation cost reduction.
• 5 Programmable Emergency Numbers + 2 Central Station Numbers: Stored in non-volatile memory, so a power interruption or line surge won't wipe your call routing. You can dial-sequence through five emergency destinations (campus police, 911, dispatch) and two dedicated central station numbers — useful when your monitoring center needs a separate reporting path from the public-facing emergency line.
• Non-Volatile Memory: Programming survives power loss without a battery backup or capacitor. Once configured, the unit retains all seven stored numbers indefinitely. This matters in seasonal or intermittently powered installations where memory loss on restart would create a liability gap.

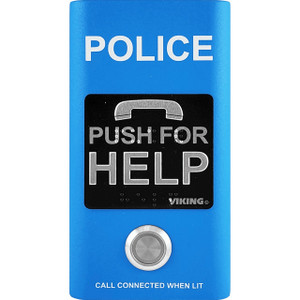

• Operating Range -15°F to 130°F (-26°C to 54°C): Rated for genuine outdoor exposure across most North American climates — covered parking decks, shaded exterior walls, and northern campuses all fall within spec. For installations exposed to direct weather with potential ice loading or sustained sub-zero cold, evaluate the E-1600-BLPA-EWP variant, which adds Enhanced Weather Protection and extends humidity tolerance to 100%.
• Compact Chassis — 5.75" x 3.08" x 1.05": The small-chassis form factor fits surface-mount locations where a larger housing would be impractical — concrete columns, narrow wall sections between doors, or recessed alcoves. At 0.060" steel construction, it's not a decorative box; it will handle the incidental contact a public-facing device takes over years of service.
• Blue Powder Paint with POLICE Verbiage: The finish is functional, not cosmetic. Blue is the universally recognized color for police/emergency call stations in parking and campus standards (IACLEA, IBC references). The stamped POLICE text ensures the station is legible at distance and in low light, reducing the response-delay risk when a caller is disoriented or unfamiliar with the facility.
• Gel-Filled Butt Connector Terminations: Field terminations use gel-filled butt connectors rather than screw terminals or IDC blocks, which provides a moisture-resistant splice point at the wiring connection. This is particularly relevant in damp environments like parking structures where condensation migrates into junction boxes over time.
• 5% to 95% Non-Condensing Humidity Rating (Standard): Covers the vast majority of indoor and semi-sheltered outdoor applications. For fully exposed installations subject to rain intrusion or pressure washing, specify the EWP variant, which is rated to 100% humidity. Deploying the standard unit in a direct-weather location voids the environmental rating and risks corrosion of the internal PCB.
• 304 Stainless Steel Housing: The small-chassis version ships in 304 stainless steel — corrosion-resistant and appropriate for coastal or high-humidity semi-outdoor environments. The blue powder-paint finish adheres well to stainless and provides consistent color for ADA and code compliance across a multi-station campus deployment.

Integration & Compatibility

The E-1600-BLPA is designed to integrate with standard analog telephone infrastructure — POTS lines, analog ports on a PBX or hybrid phone system, or an analog telephone adapter (ATA) bridging a VoIP system to the 2-wire interface. No proprietary controllers or software is required. Pair with a blue-light emergency phone system for coordinated campus-wide deployment, and consider the matching 1600A Series large-chassis or panel-mount housings where conduit routing or enclosure depth requirements differ by location. For facilities moving to IP infrastructure, Viking's 1600-IP Series offers PoE class 1 operation at under 4W and fits the same deployment context with SIP integration. See our access control and emergency communications category for complementary door-control and intercom products that can be co-located with call stations at entry points. When planning multi-station coverage, reference a campus emergency phone placement guide for code-compliant spacing and visibility standards.

Frequently Asked Questions

Q: Does the E-1600-BLPA require a separate power supply?

A: No. The E-1600-BLPA is phone-line powered — it draws all operating power from the connected telephone line. No external power supply, transformer, or electrical circuit is needed.

Q: How many emergency numbers can be programmed into the E-1600-BLPA?

A: The unit stores up to 5 emergency numbers and 2 central station numbers, all retained in non-volatile memory that survives power interruptions without a backup battery.

Q: What is the operating temperature range of the E-1600-BLPA?

A: The standard E-1600-BLPA is rated from -15°F to 130°F (-26°C to 54°C). For installations requiring wider temperature tolerance or 100% humidity rating, the E-1600-BLPA-EWP variant adds Enhanced Weather Protection.

Q: Can the E-1600-BLPA be used outdoors?

A: Yes, within its rated environmental limits: -15°F to 130°F and 5% to 95% non-condensing humidity. For fully exposed outdoor locations subject to direct rain, ice, or pressure washing, the EWP variant is the correct choice — the standard unit is not rated for 100% humidity or direct weather exposure.

Q: What chassis material is used on the E-1600-BLPA?

A: The compact small-chassis version is constructed from 304 stainless steel with a blue fine-texture powder-paint finish and POLICE verbiage. It ships at 2.5 lbs with dimensions of 5.75" x 3.08" x 1.05".

Q: Does the E-1600-BLPA work with VoIP or SIP systems?

A: The E-1600-BLPA is designed for standard 2-wire analog telephone connections. It can operate on a VoIP system if an analog telephone adapter (ATA) is used to provide an analog FXS port. For native SIP/IP integration without an ATA, Viking's 1600-IP Series is the appropriate alternative.

Eden Phillips

The E-1600-BLPA earns its place in campus and parking security deployments primarily because of one underappreciated spec: it runs entirely off the phone line. That single design decision — no external power required — eliminates a substantial portion of the installation cost and coordination overhead on a multi-station rollout. When you're running 20 call stations across a parking structure, not pulling 120V to each column location is a real project budget difference, not a footnote.

Technical Highlights:

• Phone-Line Power: Zero watts from building electrical — all operating power drawn from the 2-wire telephone circuit. Simplifies conduit planning and removes the need for electrical permits at each station location.
• Non-Volatile Memory for 7 Stored Numbers: 5 emergency + 2 central station numbers survive any power event without a battery or capacitor. Configure once; no re-programming after outages or seasonal shutdowns.
• 304 Stainless Steel at 5.75" x 3.08" x 1.05": Small enough to fit a parking deck column without surface preparation, robust enough for the incidental contact a public-facing device accumulates over a 10–15 year service life.

Deployment Considerations:

• The -15°F to 130°F rating covers most covered parking and semi-sheltered campus locations, but fully exposed rooftop or open-air locations in northern climates should be spec'd with the E-1600-BLPA-EWP — the standard unit is rated to 95% non-condensing humidity, not full weather exposure.
• This unit requires an analog telephone connection. If your facility has migrated fully to SIP/VoIP with no analog ports remaining on the PBX, budget for an ATA at each station or evaluate the 1600-IP Series instead — deploying the E-1600-BLPA on a digital-only system without an analog interface will result in a non-functional station.

For a mid-size campus or medical center replacing aging blue-light infrastructure on an analog phone system, the E-1600-BLPA is the straightforward, code-recognizable choice — blue finish, POLICE verbiage, compact footprint, no power circuit required. It's particularly well-suited to phased rollouts where stations go in ahead of a full IP migration, since analog-to-IP bridge adapters preserve the investment when the PBX eventually turns over.
