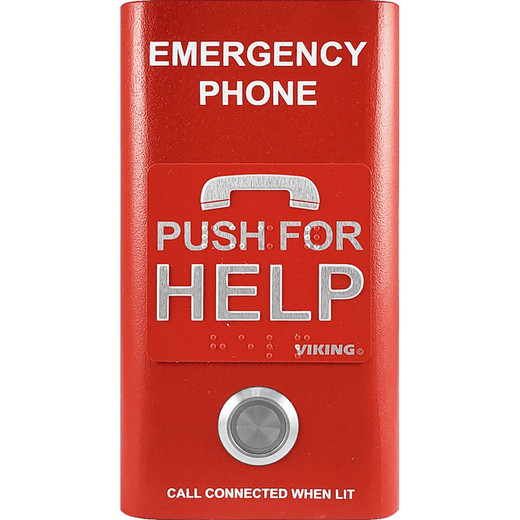

Viking Electronics E-1600-RD-IP Compact ADA Compliant VoIP Emergency Phone
The Viking Electronics E-1600-RD-IP is a flush- or surface-mountable SIP 2.0 emergency phone engineered for code-compliant deployments in harsh environments — parking structures, elevator lobbies, remote stairwells, and industrial facilities where a standard intercom simply won't hold up. Red powder-coat housing signals emergency use at a glance, and every key specification is aimed at installations that need to work without maintenance intervention for years. If you're spec'ing Viking Electronics emergency communications into a new construction or retrofit project, the E-1600-RD-IP covers the full range of indoor-to-outdoor edge conditions in a single SKU.
Key Features
- ADA Compliance Out of the Box: Designed to meet ADA emergency phone requirements, so you're not retrofitting compliance after the fact. Covers both the audible and visual signaling aspects expected in commercial and municipal projects without additional hardware.
- SIP 2.0 (RFC 3261) on a Standard PoE Drop: Registers directly to any SIP-compliant PBX or hosted UCaaS platform over a single Cat5e/Cat6 run. PoE Class 1 draw is under 4 watts — well within 802.3af budget on virtually any managed switch port, and no separate power supply or transformer is needed. For VoIP emergency phone retrofits where conduit is already pulled for data, this is the cleanest possible install path.
- G.722 Wideband Audio at 95 dB SPL: G.722 delivers noticeably clearer speech than G.711 in noisy environments — relevant in mechanical rooms, loading docks, and parking decks where ambient noise competes with the caller. The 95 dB SPL output at 1 meter means the called party can be heard even in loud surroundings without leaning into the unit. G.711u and G.711a are also supported for compatibility with legacy SIP endpoints.
- IP66 Ingress Protection: Dust-tight and rated against direct water jets from any direction — covers covered walkways, covered parking, and semi-exposed mounting locations. IP66 is not full submersion (that's IP67+), so avoid floor-level mounting in areas subject to standing water or washdown. For fully wet environments, Viking offers the EWP variant (E-1600-RD-IPEWP) rated to 100% humidity.
- Extended Operating Temperature — -40°F to 140°F: Most SIP endpoints are rated to 32°F (0°C) at the cold end; this unit goes to -40°F. That matters for unheated parking structures in cold-climate regions, outdoor elevator lobbies, and rooftop mechanical areas where the phone sits through freeze-thaw cycles without a heated enclosure. The 140°F upper limit handles sun-baked south-facing exterior walls and unconditioned equipment rooms.
- Dual Relay Contacts (2 Amp): Two dry-contact relay outputs let you integrate a strobe light, door release, or access control trigger directly from the phone — no additional relay module required. In a stairwell or parking structure scenario, the phone can simultaneously alert dispatch and activate a visible strobe, both over the same PoE connection.
- Flush or Surface Mount Flexibility: The 5.0″ × 5.0″ × 2.25″ footprint mounts directly to a standard electrical box for flush installation or surface-mounts to any flat wall. Both options are supported without separate back-box adapters, which simplifies rough-in coordination with electricians on new construction.
- RJ45 + Gel-Filled Butt Connectors: The primary network connection is a standard RJ45 jack. Three gel-filled butt connectors are included for field splicing — useful in outdoor or conduit-entry scenarios where a direct plug termination isn't practical and moisture ingress at the splice point is a concern.
- Regulatory Compliance — CE, FCC Part 15, ICES-003 Class A: CE and FCC marks cover commercial deployment in North American and EU markets. ICES-003 Class A is the industrial emissions classification — appropriate for commercial and light industrial environments, and a requirement in some Canadian municipal projects.
Integration and Compatibility
The E-1600-RD-IP (often searched as E 1600 RD IP) communicates over SIP 2.0 RFC 3261 on a 100BASE-Tx network, making it compatible with any standards-based SIP PBX — on-premises platforms like FreePBX, Cisco CUCM, Avaya, and 3CX, as well as hosted SIP trunking and UCaaS services. No proprietary protocol or licensing is required on the call manager side. For access control integration, the two 2-amp relay contacts can be wired to door hardware, strobes, or building management systems. The 802.3af PoE requirement is met by virtually any managed or unmanaged PoE switch; refer to your PoE switch port budget — at under 4W per phone, you can run a large number of emergency stations off a single switch without hitting power budget limits. For broader emergency communication planning, review the emergency phone category to compare single-button, keypad, and blue-light variants in the Viking line. If your project requires weatherproof access control hardware alongside the emergency phone, pair with access control readers and panels that support dry-contact integration for unified door-and-call response.
Frequently Asked Questions
Q: Does the E-1600-RD-IP require a separate power supply?
A: No. The E-1600-RD-IP is powered entirely via PoE (IEEE 802.3af Class 1, under 4 watts). A single Cat5e or Cat6 cable carries both network data and power. No transformer, power adapter, or separate conduit run for power is needed.
Q: What SIP platforms is the E-1600-RD-IP compatible with?
A: The E-1600-RD-IP supports SIP 2.0 (RFC 3261), which is the industry-standard protocol. It is compatible with any SIP-compliant PBX or hosted SIP service, including Cisco CUCM, FreePBX, Avaya, 3CX, and most UCaaS providers. No proprietary licensing is required on the call manager side.
Q: What is the IP rating on the E-1600-RD-IP, and is it suitable for outdoor installation?
A: The E-1600-RD-IP carries an IP66 rating — dust-tight and protected against direct water jets. It is suitable for covered outdoor locations such as parking structures, covered walkways, and exterior building entrances. It is not rated for full submersion. For fully wet or washdown environments, the EWP variant (E-1600-RD-IPEWP, rated to 100% humidity) is the appropriate choice.
Q: What are the relay contacts used for?
A: The E-1600-RD-IP includes two 2-amp dry-contact relay outputs. These can trigger a door release, visible strobe/light, or building management system input — allowing a single phone activation to simultaneously alert dispatch and operate local hardware without a separate relay module.
Q: What audio codecs does the E-1600-RD-IP support?
A: The unit supports G.711u (PCMU), G.711a (PCMA), and G.722. G.722 provides wideband (HD) audio for clearer speech intelligibility in noisy environments. G.711 variants ensure backward compatibility with standard SIP endpoints and older PBX systems.
Q: How cold can the E-1600-RD-IP operate?
A: The operating temperature range is -40°F to 140°F (-40°C to 60°C). This covers unheated parking structures, cold-climate outdoor lobbies, and rooftop installations without requiring a heated enclosure — a specification most consumer and light-commercial SIP phones cannot match.
The E-1600-RD-IP earns its place on commercial emergency communication specs because of one combination that's genuinely rare in a single-unit SIP phone: -40°F cold-start capability paired with IP66 weatherproofing and G.722 wideband audio — all drawing under 4 watts off a standard 802.3af port. I've seen projects try to cobble that together from separate components; this unit is a cleaner answer for parking structures and cold-climate exterior locations.
Technical Highlights:
- PoE Class 1 (<4W): At under 4 watts, you can populate an entire parking structure with emergency stations and barely move the needle on your switch's power budget. A 150W PoE switch could theoretically feed over 37 of these phones — budget headroom is essentially never the constraint.
- 95 dB SPL at 1 Meter: That's loud enough to cut through a running engine in an enclosed parking deck. Combined with G.722 wideband codec, both sides of the call stay intelligible — not just the speaker side, which is where most emergency phones fall short.
- Dual 2-Amp Relay Contacts: The on-board relays eliminate the need for an external relay module in the vast majority of door-release or strobe-trigger scenarios. Wiring the relay to a visible strobe alongside the SIP call gives you a compliant audio-visual alert from a single homerun cable.
Deployment Considerations:
- The RJ45 connection is the primary interface; the three included gel-filled butt connectors are intended for field splicing where a direct plug termination isn't practical. Plan your conduit entry point before rough-in — the butt connectors solve a real field problem but shouldn't be the primary termination method if a clean RJ45 jack is achievable.
- IP66 is not a submersion rating — avoid floor-level or sump-area mounting. If the phone will be installed in a location subject to standing water, hose-down, or 100% humidity condensation, specify the E-1600-RD-IPEWP variant instead. Swapping after installation is an avoidable cost.
This unit is the right specification for covered parking structures, elevator lobbies, and cold-climate exterior emergency stations on university campuses, hospitals, and municipal facilities — anywhere the combination of extreme temperature range, IP66, ADA compliance, and SIP interoperability needs to come pre-engineered rather than assembled from parts.
