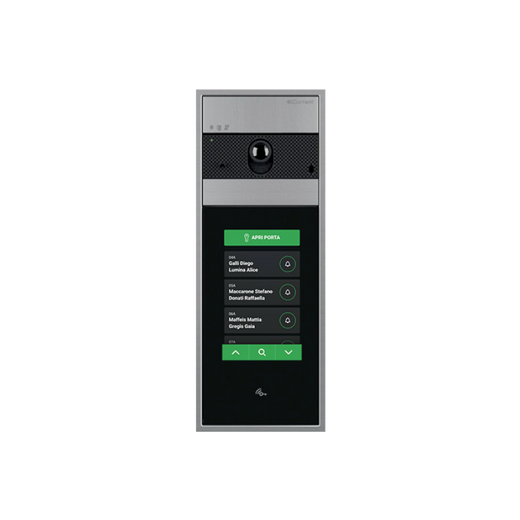

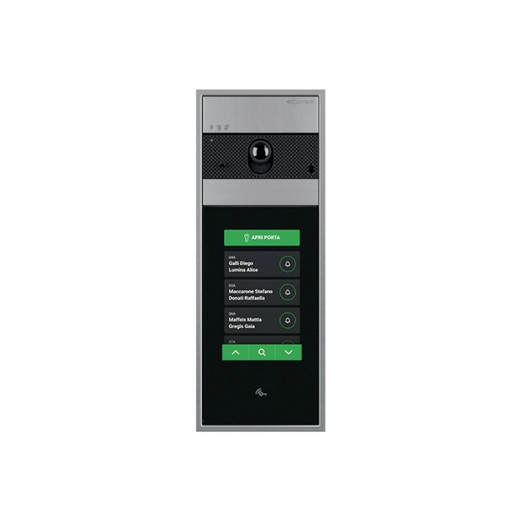

Comelit UT1090S Surface Mount Ultra Touch Display
Overview
The Comelit UT1090S is a surface-mounted audio/video entrance panel engineered for Simplebus 1 intercom and access control systems. It combines a 5-inch capacitive touchscreen display with an integrated wide-angle video camera (120° horizontal, 90° vertical field of view), omnidirectional digital microphone, and dual loudspeakers — all housed in a 35 mm shallow profile wall-mounted enclosure. This unit handles visitor authentication, access control activation, video entry verification, and two-way audio communication from a single wall location, eliminating the need for separate audio or video intercoms at building entrances.
Compatibility
The UT1090S is designed for Comelit Simplebus 1 systems and requires a compatible power supply unit (art. 1595). It integrates with Comelit access control modules via Wiegand output for credential-based door release, supports RFID reader activation (Comelit card or key format), and includes Bluetooth connectivity for mobile device interaction. The display's user-customizable graphic interface allows configuration of virtual call buttons, direct dial keypads, and welcome messages — adapting to single-family residences, commercial lobbies, or multi-tenant environments. Consult the system integrator or Comelit documentation to verify compatibility with your specific Simplebus 1 installation and power supply unit model.
Installation Notes
Mount the UT1090S on a vertical wall surface within 35 mm of the wall plane. The unit requires connection to a Simplebus 1 power supply (art. 1595) and integration with your access control wiring (Wiegand output for door strike/magnetic lock activation). A twilight sensor manages touchscreen backlighting automatically, reducing power draw in bright daylight. The 5-inch impact-proof glass and theme selection (black or white) allow aesthetic matching to lobby or entrance decor. Standard installation tools and the mounting template (if included) facilitate alignment and fastening.
What's in the Box
- 1x UT1090S surface-mounted housing (UT9173)
- 1x audio/video module (UT1020)
- 1x 5-inch touch module (UT9270)
- Mounting template and fastening hardware
