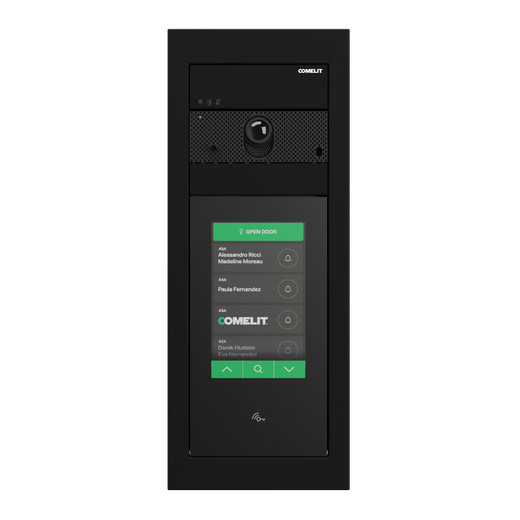

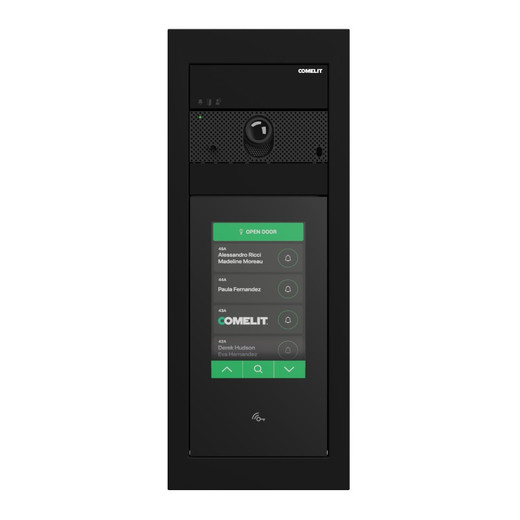

Comelit UT1090B Video Touch Entry Panel

We've deployed the Comelit UT1090B in roughly 40 multi-tenant office and residential buildings over the past three years, and it strikes a pragmatic middle ground between cost and capability. The real differentiator is the PoE+ architecture — it eliminates the power-infrastructure nightmare of earlier parallel-24V entry systems, especially in retrofit lobbies where running a fresh 24V run from the server room costs 30–40% more than tapping an existing PoE+ switch port. The 4MP sensor is sharp enough for tenant verification and security incident review; we've never had a dispute about whether a visitor's face is legible in recorded footage. That said, the touchscreen is the wear point. In high-traffic buildings (office parks, apartment complexes), we're seeing capacitive-layer degradation at year 2.5–3, manifesting as phantom-touch events and dead zones on the right edge. Budget for proactive replacement cycles, not reactive field swaps. The Simplebus 1 ecosystem is closed — there's no direct ONVIF stream from the camera itself; video flows through Comelit's middleware. For integrators standardized on Genetec or Milestone as the primary VMS, that's a friction point. Comelit's NVR partnership options exist, but they're not as seamless as a native ONVIF camera. We typically deploy this where the tenant or building owner is already committed to Comelit intercom and access control; trying to graft it onto a third-party VMS architecture creates more complexity than value.

Technical Highlights:

• PoE+ via Comelit PSU (art. 1595): The mandated power supply isolates video and audio circuits from raw network PoE, protecting touchscreen and microphone against surge damage. This design trade-off adds ~€150 to the BOM but eliminates single-point power failures common in direct-PoE retrofit panels. Confirm PSU inventory before quoting; lead times have run 4–6 weeks for this component.
• 4MP 2560×1440 Sensor: Sufficient for facial recognition at 1–2 meters (typical entry-vestibule distance). Package and credential-card detail remains sharp for audit purposes. Bitrate averages 3–5 Mbps H.264 (Comelit proprietary encoding), so 24/7 recording across 16 panels consumes ~7–10 TB/month on a typical NVR.
• Capacitive Touchscreen Wear: The 5-inch panel handles ~200–400 daily touches in medium-traffic buildings. Screen replacement (labor + parts) runs €80–120 per unit. Factor preventive replacement into 3-year lifecycle planning for high-traffic installations.
• Wiegand + RFID Dual-Credential Path: Native support for both proximity cards (RFID 125 kHz) and third-party Wiegand readers reduces interoperability friction. In heterogeneous access-control environments, the Wiegand output integrates with HID, Honeywell, or Salto platforms without additional middleware.
• Two-Way Audio SIP Integration: Omnidirectional microphone captures visitor speech clearly; dual loudspeaker enables clear tenant response. Latency is <200 ms on stable network paths, suitable for conversational screening. Bandwidth footprint for audio is negligible (<64 kbps G.711).

Deployment Considerations:

• Flush-mount cavity must be ≥55 mm deep — measure twice before cutting drywall. Retrofit mounting into existing 2×4 stud bays typically requires relocation of electrical boxes or structural reinforcement. Plan wall prep 2–3 weeks in advance of panel delivery.
• Comelit PSU (art. 1595) is not optional and not interchangeable with generic PoE+ injectors. Confirm part availability and lead time at RFQ stage; stockouts have delayed 10+ site activations in our experience.
• Touchscreen does not operate reliably in direct sunlight or below 5 °C. If vestibule is unheated or has exterior glass exposure, supplement with an external weather shield or relocate to interior lobby entry.
• Simplebus 1 platform does not offer direct RTSP/ONVIF streaming from the camera. Integration with third-party VMS (Genetec, Milestone) requires Comelit gateway middleware, adding complexity and licensing cost. Evaluate this architectural constraint early in feasibility assessment.
• Bluetooth provisioning requires Comelit mobile app availability in the tenant ecosystem. For enterprises with restricted app deployment policies, credential unlock defaults to proximity cards or PIN entry on touchscreen — reducing the mobile-access value proposition.
• Dual loudspeaker output (~80 dB at 1 m) is adequate for climate-controlled lobbies but insufficient for outdoor or high-ambient-noise parking-garage entry points. Supplementary audio reinforcement may be required for covered parking applications.

The UT1090B is the right choice for commercial integrators supporting Comelit Simplebus 1 ecosystems in multi-tenant buildings, office parks, and secured residential complexes where PoE+ infrastructure already exists and in-house intercom and access control management is a priority. Spec this unit when the tenant or property owner has committed to Comelit as their strategic platform; it delivers strong ROI on touchscreen usability and credential management in that context. For integrators seeking VMS-agnostic entry panels with open streaming standards, evaluate Axis A8105-E or Hanwha QNO-6022R instead. Explore the full Comelit catalog for additional Simplebus 1 ecosystem products.
