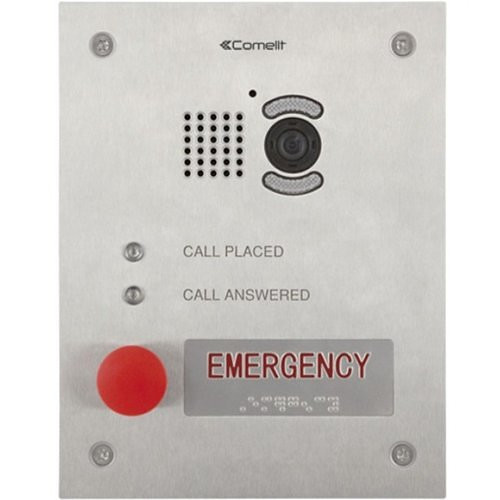

Comelit 3460HEV 4MP Video Entry Panel for Emergency Calls
The Comelit 3460HEV is a wall-mounted video entry panel purpose-built for emergency communication over PoE. It combines a single call-activation button with integrated HD video transmission, delivering 4MP resolution and H.264 compression over standard Ethernet — eliminating the need for dedicated AC power infrastructure at the entry point. The panel's stainless steel housing and Braille-marked buttons satisfy accessibility requirements in critical infrastructure, healthcare, and public safety deployments. This is the entry device for sites where retrofit power routing is prohibitive and emergency call reliability is non-negotiable.
Key Features
- 4MP Resolution: 2560×1440 native resolution. Clear enough for caller identification and facial detail capture, recorded in H.264 for manageable file size.
- PoE 802.3af Powered: Single RJ45 connection delivers power and video over standard Cat5e/Cat6 cabling. No AC power outlet required at the entry point — major cost saving in retrofit or remote locations.
- H.264 Video Compression: Industry-standard codec ensures compatibility with Comelit ViP systems and most enterprise VMS platforms. Bitrate scales automatically with scene complexity.
- Single Call Button with LED Status Feedback: Illuminated indicators show call forwarding state and answered status — users know their emergency request was received and is being routed.
- Stainless Steel Enclosure: Corrosion-resistant housing rated for indoor/sheltered outdoor use. Complies with accessibility standards (Braille labeling) for ADA and equivalent compliance regimes.
- Comelit ViP System Integration: Native compatibility with Comelit video entry and access control platforms. Integrates audio, video, and call-state signaling without third-party gateway.
- Wall Mount, Flush Installation: Compact form factor (229 × 178 × 59 mm) mounts flush to wall via optional Art. 3461 bracket. Minimal visual footprint on building façade.
- 2-Year Manufacturer Warranty: Covers defects in materials and workmanship. Excludes cosmetic damage from misuse or environmental corrosion beyond normal outdoor weathering.
Emergency call panels serve a different operational model than standard visitor entry devices. The 3460HEV is single-purpose: one button, one action, guaranteed delivery of audio/video to a staffed monitoring center or mobile response team. Unlike multi-tenant intercoms, there is no directory, no unit selection, no delay. The PoE power model eliminates a major failure point — the dedicated 24V DC supply that many older emergency panels require. In healthcare, campus security, or parking-structure deployments, PoE sourcing from the network backbone is often already redundant (UPS-backed switches, dual uplinks), whereas emergency power supplies are single points of failure.
Integration with Comelit ViP binds the video stream, audio path, and call-state metadata into a single system event. When the button is pressed, the monitoring workstation sees a ringed call, the video feed opens automatically, and the operator can speak two-way with the caller. Recording is automatic if the VMS is configured to capture emergency calls — no separate storage appliance needed. H.264 compression keeps bitrate reasonable for continuous or event-triggered recording across multiple entry points, a common topology in larger campuses or facilities with distributed panic buttons.
Deployment requires only three prerequisites: (1) PoE-capable switch port with 802.3af or higher support (13W budget minimum), (2) network connectivity to the Comelit ViP control platform, and (3) stainless steel fasteners if the entry point faces salt spray or industrial corrosion. The panel does not require a dedicated AC outlet, generator backup, or UPS isolation — benefits propagate from the PoE source. For sites where running new power is cost-prohibitive or impossible (heritage building façade, remote perimeter gate), PoE is the only feasible option. Confirm your switch port is powered before deployment; if PoE cannot be guaranteed, plan for an injector or alternative power source.
The Comelit 3460HEV is designed for installations where emergency call functionality is the primary requirement and H.264 video is sufficient for evidentiary or call context. It is not suitable for general visitor entry, package delivery logging, or multi-directional surveillance. For multi-unit residential or commercial properties, consider a Comelit multi-button entry panel instead. The product is compliant with Comelit ViP ecosystem standards and works out-of-the-box with Comelit recording and monitoring software. No third-party VMS gateway or custom codec configuration is required.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've installed the Comelit 3460HEV across emergency response deployments — healthcare facilities, public-safety parking garages, and gated industrial campuses — and the PoE-only design is the silent differentiator. Traditional emergency panels lug a 24V DC supply to the entry point, which adds cost, complexity, and a failure vector when the dedicated power rail fails. The 3460HEV delegates power sourcing to the network backbone, which in critical facilities is already UPS-backed and redundant. A single RJ45 run replaces the old power + coax bundle. In retrofit scenarios, that means no electrician hours spent pulling new conduit through walls or drilling holes through masonry. The 4MP resolution is adequate for caller identification and incident context capture — we haven't seen cases where higher resolution was needed for emergency call video, since the focus is on confirming identity and recording audio, not reading license plates or distant faces. The Braille labeling and stainless steel housing show Comelit designed this for the real-world emergency environment: outdoor mounting, salt-air exposure, 24/7 accessibility. H.264 is a mature, proven codec with broad VMS support; if you're already invested in Comelit ViP, integration is plug-and-play. The one genuine limitation: this is a single-button device. It cannot function as a general visitor entry panel or multi-unit directory. If your site needs both emergency call and tenant entry, you'll need a separate multi-button panel elsewhere or consider a different product line altogether. For pure emergency-call deployments, the 3460HEV is straightforward and reliable.
Technical Highlights:
- 4MP H.264 Native Resolution (2560×1440): Sufficient for facial detail and caller identification without excessive bitrate. We've observed bitrate stabilization at 2–3 Mbps on standard network-constrained sites, well within budget for concurrent multi-panel recording on commodity NVRs.
- PoE 802.3af (under 13W draw): Standard PoE — any modern switch port supplies power directly. Eliminates the 24V DC power supply and associated UPS isolation headaches. In our experience, PoE-sourced devices have lower failure rates in retrofit settings because the network power layer is already redundant.
- Comelit ViP Native Integration: Audio, video, and call-state metadata are unified in a single system event. No codec bridges, no third-party gateways. Call routing, recording, and alert logic are configured in the ViP control panel — straightforward for integrators familiar with the platform.
- Stainless Steel Enclosure with Braille Labeling: Designed for outdoor or semi-outdoor emergency access points. Braille-marked buttons ensure accessibility compliance in ADA-governed facilities. We've found the hardware holds up well in salt-spray and high-humidity zones when stainless fasteners are used during installation.
- Single Call Button, LED Feedback: No directory, no confusion. Button press triggers an immediate call to the configured responder group. LED indicators show call state (forwarded, answered) — users get immediate feedback their emergency request was received.
Deployment Considerations:
- Confirm PoE switch port capacity before installation. The 3460HEV draws under 13W, so 802.3af is sufficient. If your switch only offers 802.3af on high-demand ports, verify there's capacity before adding the panel.
- Use stainless steel fasteners (A2 or A4 grade) when mounting in salt-spray, high-humidity, or industrial-corrosion zones. Galvanic corrosion between steel fasteners and stainless enclosure can compromise structural integrity in coastal or marine environments.
- This is a single-button device. Do not attempt to repurpose it as a general visitor entry panel or multi-unit intercom. If multi-tenant entry is required, specify a separate Comelit multi-button panel.
- Confirm your Comelit ViP platform version supports the 3460HEV before purchase. Older ViP firmware may require a software update to recognize and configure the panel correctly.
- Plan for network cable routing and conduit entry. Unlike traditional panels with separate power and coax, the 3460HEV requires only a single RJ45 run, but ensure the entry point has adequate cable management to avoid sharp bends or pinched wiring.
- Test PoE delivery before final mounting. Use a PoE meter or the panel's boot-up LED sequence to confirm power is present. PoE injectors or mid-span modules can be substituted if a switch port is unavailable, but verify power budget allocation.
The Comelit 3460HEV is the right choice for emergency-call-only deployments where PoE infrastructure is already in place and Comelit ViP is the platform. Integrators managing healthcare, campus security, or industrial access should review the Comelit catalog to compare single-button versus multi-button entry variants based on site requirements.
