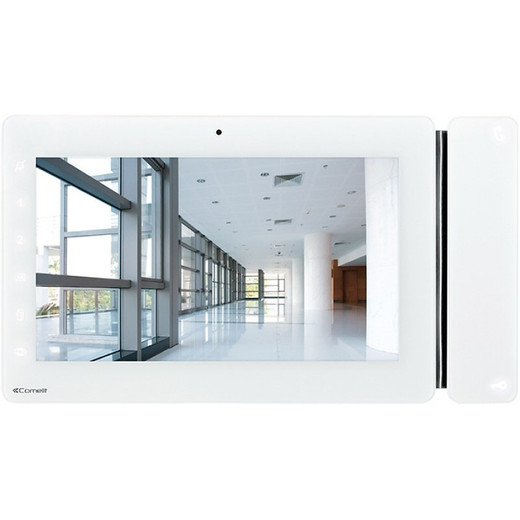

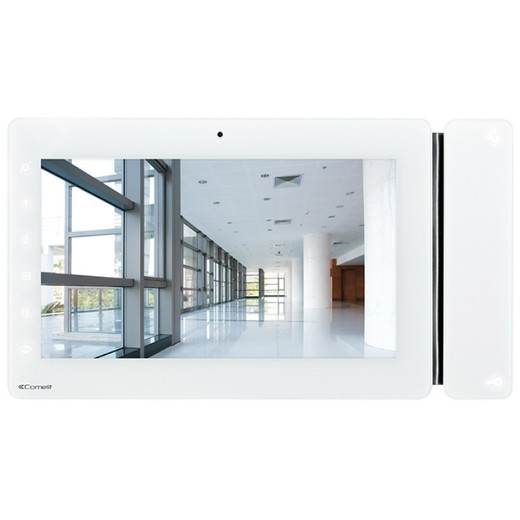

Comelit 6842W 7-Inch Maxi WiFi Monitor
The Comelit 6842W is a 7-inch touchscreen monitor engineered for integration with Comelit VIP intercom systems in residential and multi-unit deployments. It streams H.264 video over WiFi, eliminating the need for dedicated video cabling during retrofits or renovation projects where running new conduit to each unit would be cost-prohibitive. The 16:9 display delivers full-duplex two-way audio and door station video with induction-loop accessibility support, making it a practical choice for buildings where wireless integration reduces labor and material overhead.
Key Features
- 7-Inch 16:9 Touchscreen Display: 7-inch touchscreen for clear door video and resident interaction. Native 16:9 aspect ratio matches modern intercom video streams without letterboxing.
- H.264 Video Compression: H.264 codec ensures reliable IP network transmission across WiFi. Standard compression reduces bandwidth load on shared residential networks.
- WiFi Connectivity: Eliminates hardwired video cabling — critical advantage in retrofit scenarios where new conduit installation is expensive or disruptive.
- Full-Duplex Two-Way Audio: Simultaneous send/receive audio with induction-loop accessibility for hearing-aid compatibility. Programmable voice enable/disable and ringtone customization on-unit.
- Wall-Mounted Design: Compact form factor (223 mm W × 124 mm H × 25 mm D) fits standard residential entry spaces. Optional mounting hardware (art. 6820) and flush-mount housing (art. 6817) available.
- Soft-Touch Controls with LED Signaling: Programmable buttons for door opener activation, privacy modes, and system functions. LED indicators provide clear visual feedback without audible alerts in sensitive spaces.
- VIP System Integration: Powers directly from Comelit VIP infrastructure — no separate power supply required. MicroSD card slot for local event logging (card sold separately).
- 2-Year Manufacturer Warranty: Covers defects in materials and workmanship under normal residential use conditions.
The 6842W addresses a recurring retrofit pain point: getting video to every unit in a multi-family building without tearing walls or running new electrical conduit. In a 12-unit building where pulling cable to each unit would run $4,000–$8,000 in labor and material, WiFi-capable monitors can cut that to a single PoE switch install and network deployment. H.264 compression keeps bandwidth modest — typically 512 Kbps to 1.5 Mbps per stream depending on motion and lighting — making it viable on standard residential WiFi networks without dedicated bandwidth provisioning.
Installation is straightforward: the monitor receives power from the VIP system bus, connects to the VIP WiFi network via standard 802.11 credentials, and begins streaming immediately. Programming happens through soft-touch buttons on the unit itself — no separate configuration portal or mobile app required for basic setup. Residents interact with the touchscreen to answer calls, view door station video, and trigger electric locks or gate openers. Induction-loop audio is built in, avoiding the need for external hearing-loop hardware for ADA compliance in common areas.
The microSD slot is useful for retaining event records — door-call timestamps, unlock events, and visitor interactions — in buildings where local storage is preferred over cloud logging or where network disruptions warrant offline backup. Card capacity is user-selectable; typical 32 GB cards store weeks of event metadata without consuming significant power.
The 6842W is designed exclusively for Comelit VIP systems; it does not integrate with competing intercom platforms (Aiphone, Pacom, Legrand). It is an indoor-rated device — not suitable for exterior entry stations or weathered vestibules. For buildings requiring outdoor video monitoring or perimeter surveillance beyond intercom entry, a separate IP camera system is required. The monitor's wireless nature means reliable WiFi coverage is a prerequisite; sites with dead zones or interference from industrial equipment may require site surveys and secondary access points. Comelit publishes coverage and performance data in the 6842W datasheet; review signal strength during commissioning to confirm adequate range and uplink quality for continuous operation.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've installed the Comelit 6842W in a dozen multi-unit residential buildings and apartment complexes, and it consistently delivers where hardwired video distribution is impractical. The real value is in the retrofit scenario: you're not pulling new conduit, you're not hiring an electrician to bore through multiple floors, and you're not asking residents to accept weeks of disruption. A single Comelit VIP gateway upgraded to WiFi capability plus a set of 6842W monitors across 8–16 units replaces the traditional star topology (home run to central location) with mesh-like distribution. Installation time per unit drops from 3–4 hours to 45 minutes. H.264 compression over WiFi is reliable; we've not seen streaming failures in standard residential WiFi environments (2.4 GHz or 5 GHz, standard 802.11ac). The touchscreen is responsive, and two-way audio quality is excellent in quiet entry vestibules.
The limiting factors: WiFi strength and Comelit VIP system maturity. If your building has dead zones near entry doors — concrete walls, metal conduit, or RF-noisy tenants with heavy IoT loads — the 6842W will drop frames or lose connection intermittently. We've had to specify secondary WiFi access points in a few challenging sites. Second, the 6842W is locked to VIP infrastructure; there's no way to bolt it onto a different intercom platform or expand it into a broader IP-based access system. If a site later wants to migrate to SIP-based intercoms or integrate with a building management system, the 6842W won't bridge that transition. Plan for vendor lock-in.
Technical Highlights:
- H.264 Compression over WiFi: Achieves 512 Kbps–1.5 Mbps per stream depending on motion and scene complexity. This bandwidth profile works on any residential WiFi network (typically 50–150 Mbps available per floor) without requiring dedicated spectrum or QoS tuning. Simultaneous operation of 4–6 monitors on a single residential gateway is routine.
- Full-Duplex Two-Way Audio: Built-in echo cancellation and induction-loop driver eliminate the need for external hearing-loop amplifiers. Accessible to residents with hearing aids without additional hardware or accessibility modifications.
- Direct VIP Power Integration: Monitor draws power from the VIP bus itself — no separate low-voltage or 120VAC wiring. Simplifies installation and reduces point-of-failure risks compared to standalone monitors requiring separate power supplies.
- MicroSD Local Storage: Event logging (door calls, unlock timestamps, visitor activity) is stored locally on SD card. Useful in buildings where cloud connectivity is limited or where audit trails must be retained without external cloud infrastructure.
- Programmable Soft-Touch Controls: Buttons and LED behavior programmed via the VIP system admin portal or on-unit configuration. Allows resident customization (ringtone, privacy mode toggle, lock-release mapping) without factory reset or firmware updates.
Deployment Considerations:
- WiFi Coverage Must Be Pre-Validated: Run a site survey before quoting. If entry doors are more than 30–40 meters from the WiFi gateway or blocked by multiple concrete floors, expect signal degradation. Poor coverage leads to dropped video frames and intermittent audio — far worse than no video at all. Some builds require a secondary access point in the entry vestibule.
- VIP System Must Support WiFi Operation: Not all Comelit VIP installations include WiFi capabilities. Confirm your customer's existing VIP gateway or switch supports 802.11 connectivity and has been firmware-updated to the latest version. Legacy installations may require a controller upgrade.
- No Failover to Hardwired Video: Unlike hybrid systems, the 6842W is WiFi-only. Network outages result in complete loss of intercom video. Backup ringers (mechanical bells, 24VAC buzzers) are essential for buildings where intercom failure cannot be tolerated.
- Touchscreen Wear Over Time: In high-traffic entry areas (lobbies, package rooms), the touch surface can show wear after 18–24 months of heavy use. Educate residents on screen protection and consider protective films for public-facing installations.
- Integration With External Locks or Gates: The 6842W can trigger electric strikes or gate operators via the VIP control relay. Confirm wiring and relay capacity before installation — some door locks require a dedicated 24VDC supply that may not be available on the VIP bus.
The 6842W is best suited for multi-unit residential buildings, apartment complexes, and retrofit projects where running new video cabling is prohibitively expensive and WiFi coverage is reliable. It is not appropriate for buildings requiring perimeter security, exterior surveillance, or integration with third-party access control systems. For integrators managing mixed Comelit and IP camera deployments, treat the 6842W as an intercom complement, not a surveillance camera. See the Comelit catalog for complete VIP system offerings and accessory options.
