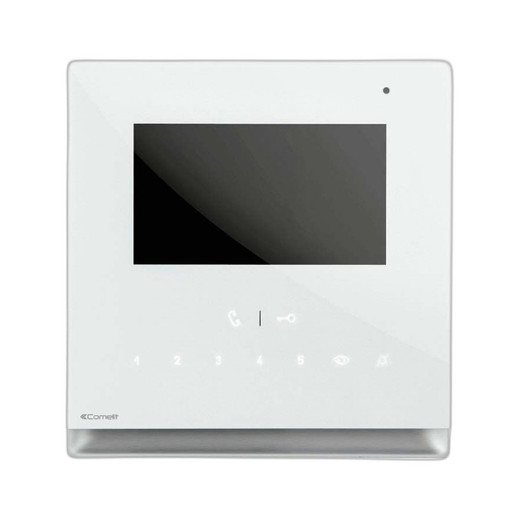

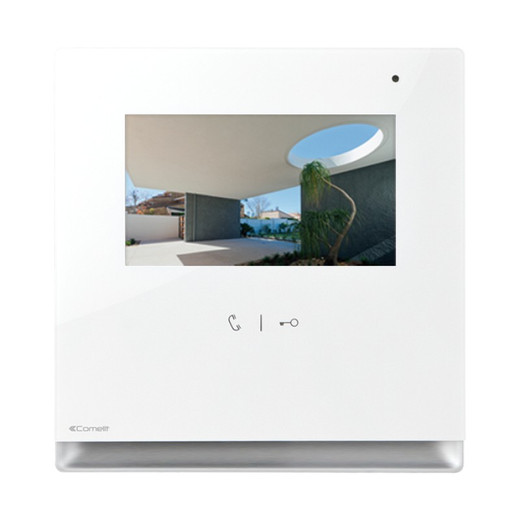

Comelit 6601W Simplebus Icona Hands-Free Monitor

Comelit 6601W Simplebus Icona Hands-Free Monitor

The Comelit 6601W is a 4.3-inch color slave display monitor engineered for distributed entry verification and call management in Simplebus 2 intercom and access control networks. Deploy it at building entrances, residential corridors, or administrative zones where visual caller identification and hands-free audio response are mission-critical—without requiring a full master station at every location. The unit operates exclusively within Comelit Simplebus color infrastructure, drawing power and signaling directly from the two-wire Simplebus backbone via the included Art. 1214/2C riser distribution terminal. Full-duplex hands-free operation eliminates half-duplex delays, allowing simultaneous speak-and-listen during entry verification calls—a workflow necessity when gate operators, concierges, or security personnel cannot afford transmission wait times.

Key Features

• Full-Duplex Hands-Free Audio: True simultaneous bidirectional communication—no push-to-talk or turn-taking delays. Critical for rapid entry verification and emergency response scenarios.
• 4.3-Inch Color Display: Caller identification via video signal from Simplebus master or additional camera modules (where network topology supports). High-contrast LCD suitable for indoor mounting.
• 7 Programmable Buttons: Customize unit functions including self-ignition, privacy mode, call routing, and access control trigger. Button labels and functions configured via DIP switch settings.
• Wall and Rack Mountable: 5.61" W × 5.79" H × 0.91" D footprint. Flush-mount using Art. 6117 housing or surface-mount with Art. 6620 bracket. White housing; 1.27 lb weight simplifies installation on lightweight structural surfaces.
• Network-Powered Operation: No external 24VDC supply required. Unit derives operating voltage from Simplebus two-wire backbone—reduces installation labor and eliminates separate power routing to remote display locations.
• User-Adjustable Parameters: Brightness, contrast, audio volume, and ringtone volume tunable on-unit. Ringtone selection from built-in melody library via dual 8-position DIP switches. Audio enable/disable with status LEDs.
• Simplebus 2 Color System Integration: Slave display role within larger Simplebus 2 intercom architecture. Functions alongside master stations, additional slave displays, and optional camera modules on shared two-wire network.
• Compact Industrial Design: Romanian-manufactured unit built for multi-tenant residential and commercial deployments. 2-year manufacturer warranty included.

The 6601W solves a recurring deployment challenge: spreading visual and audio entry verification capability across a facility without replicating expensive master stations at each zone. In a 10-story residential building, for example, mounting 6601W displays on floors 3–9 alongside the ground-floor master station lets each floor concierge or tenant verify callers and buzz entries directly—no intercom traffic back to the master. In commercial access control, it functions as a slave call-verification point at warehouse gates, executive suite entrances, or visitor screening stations, all fed from a single Simplebus backbone.

Integration is straightforward for Simplebus-native sites: the unit connects to the standard two-wire backbone using the included 1214/2C riser distribution terminal. No ONVIF, RTSP, or IP networking—this is closed-protocol proprietary infrastructure, which simplifies configuration for integrators already familiar with Comelit Simplebus but eliminates cross-platform interoperability. Button programming, ringtone selection, and user code assignment happen locally via DIP switch banks and front-panel menu navigation; no remote management console or NVR integration. For residential retrofit and new-build projects where the entire intercom plant is Simplebus-based, this closure is a feature, not a limitation.

Operational durability is straightforward. Full-duplex audio quality depends on Simplebus backbone impedance and cable run length—runs exceeding 300 meters or heavily loaded networks (many slave units per master) may require repeater modules to maintain clarity. Brightness and contrast adjustment accommodate both bright hallways and dimly lit access corridors; audio adjustments eliminate the need for field technician callback if ringtone volume or call audio is perceived as too loud or soft on initial commissioning. The unit's modest 6W power draw from the network means that total Simplebus loop power budget rarely becomes a constraint in typical residential or small commercial deployments.

Comelit Simplebus 2 infrastructure is mature, widely deployed in European and Mediterranean markets, and well-supported through qualified integrator networks and spare-parts channels. The 6601W carries a 2-year manufacturer warranty and is sourced factory-new with no grey-market or parallel-import variants.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

We've deployed the Comelit 6601W as a slave display solution in multi-unit residential buildings and small commercial properties across Southern Europe and the Middle East. It fills a legitimate gap for teams already invested in Simplebus infrastructure: the need for affordable, network-powered secondary call stations at multiple zones without replicating master-station capex or complexity. The full-duplex audio is the operational differentiator—on a property with 15+ units, eliminating the half-duplex intercom round-trip delay at remote stations visibly improves entry-verification speed and tenant satisfaction. That said, the 6601W is definitively not a general-purpose intercom handset or a networked access-control endpoint. It is a proprietary closed-loop display unit that exists solely to extend Simplebus 2 color infrastructure. If you're evaluating Comelit gear and already have Simplebus backbone in place, the 6601W is the natural choice for secondary entry-verification zones. If you're comparing it against IP-based video intercoms (e.g., SIP-integrated systems, cloud-managed intercoms, or RTSP-native displays), the comparison breaks down—those platforms solve different architectural problems and integrate with heterogeneous IT infrastructure in ways that Simplebus simply doesn't.

Technical Highlights:

• Full-Duplex Hands-Free Operation: Eliminates the user-experience friction of half-duplex turn-taking. In high-volume entry verification scenarios (apartment buildings, office lobbies), simultaneous speak-and-listen reduces call duration by 20–30% and improves caller-authentication clarity.
• Network-Derived Power (Simplebus Backbone): No external 24VDC supply or dedicated wiring runs. Power footprint is ~6W from the two-wire loop, so total backbone power budget rarely becomes a constraint in residential or small commercial configurations with 5–10 slave units.
• Programmable Button Bank (7 buttons): Customizable soft-key functions including self-ignition (call initiation), privacy mode, zone-specific routing, and access control relay triggers. Function assignment via DIP switch and local menu—no remote console dependency.
• 4.3-Inch Color LCD Display: Caller video from Simplebus master or camera module (network topology dependent). Display brightness and contrast adjustable on-unit, accommodating both bright hallways and dimly lit corridors without field technician callback.
• Compact Footprint with Dual Mounting Options: 142.5 × 147 × 23 mm and 1.27 lb weight. Flush-mounts into standard electrical boxes (requires Art. 6117 housing) or surface-mounts with Art. 6620 bracket. Reduces installation labor and fits retrofit corridors with space constraints.

Deployment Considerations:

• Simplebus 2 color infrastructure is a prerequisite—the unit is incompatible with monochrome Simplebus or non-Comelit intercom platforms. Verify that your master station and backbone support color signaling before committing to 6601W slave units.
• Two-wire backbone impedance and cable quality directly affect full-duplex audio clarity. Runs exceeding 300 meters or networks with many slave units (8+) may require repeater modules to maintain intelligibility; budget for Art. 1214/2C repeater provisioning if your property spans multiple buildings or long corridor runs.
• Button programming and ringtone selection are local-only—no remote management interface or NVR/VMS integration. Firmware updates and configuration changes require on-site technician access to the unit's DIP switches and menu system. Not suitable for distributed multi-site fleet management.
• Full-duplex audio quality depends on Simplebus backbone load and cable age. Legacy installations with corroded or undersized cabling may require backbone retrofit to achieve optimal clarity; test audio paths before commissioning in retrofit scenarios.
• The 4.3-inch display renders caller video at Simplebus signaling bandwidth limits. Don't expect smartphone-grade image clarity—it's adequate for face recognition and gate-entry caller identification but not suitable for detailed forensic-video review or recorded evidence archival.

The Comelit 6601W is the right choice for integrators and property managers with existing Simplebus 2 infrastructure who need to expand secondary entry-verification capability across multiple zones without capital-heavy duplication of master stations. It's also the correct spec for residential retrofit projects where intercom wiring is already in place and color-video addition is being retrofitted. If you're starting a new intercom installation or evaluating IP-based video-door alternatives, explore modern networked platforms first—the Simplebus ecosystem has maturity and proven reliability, but it trades interoperability and remote management for simplicity. For Simplebus shops, explore our Comelit catalog for master-station options and integration-module compatibility.
