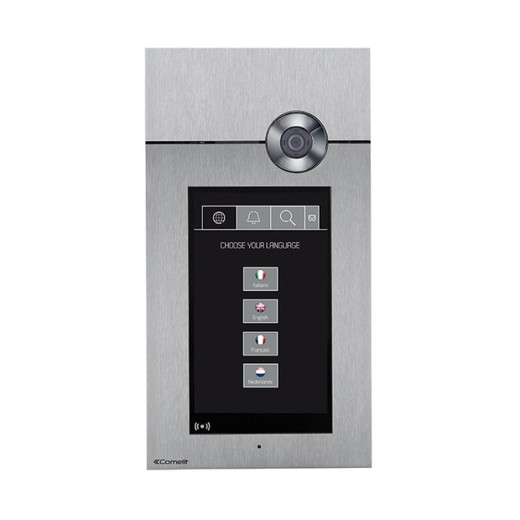

Comelit 3454HD/A 316 8" Audio/Video Touch Screen Intercom
The Comelit 3454HD/A 316 is an 8" wall-mounted audio/video intercom designed for residential and light commercial buildings seeking an intuitive, durable control interface. The capacitive touch display integrates with Comelit modular video entry and building communication systems, providing residents and building staff with real-time video verification and audio communication at entry points. IP65 weatherproofing and IK08 vandal resistance make this unit suitable for both interior lobbies and semi-protected outdoor vestibules where weather exposure and occasional impact are concerns.
Key Features
- 8" Capacitive Touch Screen: Full-color display for clear video feeds and intuitive gesture-based navigation. Touch interface reduces mechanical button wear and simplifies user interaction for residents of all technical backgrounds.
- IP65 Weatherproofing: Rated IP65 — sealed against dust and water spray. Suitable for covered porches, vestibules, and other semi-outdoor locations without direct rain exposure.
- IK08 Vandal Resistance: Impact-rated IK08 construction withstands 5kg drop from 40cm and resists intentional abuse. Essential for multi-family and public-access buildings.
- Audio/Video Intercom: Two-way audio and live video capability integrated in a single unit. Eliminates the need for separate speaker and display hardware at entry points.
- Wall-Mounted Design: Standard wall mounting with rough-in or surface-mount compatibility. Integrates into new construction and retrofit installations without extensive structural modification.
- Comelit Modular System Integration: Works within Comelit's security ecosystem — compatible with video door entry systems, access control wiring, and building management platforms. Standardized interconnect reduces commissioning time.
- 2-Year Manufacturer Warranty: Factory warranty covers defects in materials and workmanship. Standard for Comelit residential/commercial product line.
The 3454HD/A is a mature, field-proven intercom platform widely deployed across European and North American multifamily properties. The 8" screen strikes a practical balance between display clarity and space efficiency — large enough to confirm visitor identity in HD video, compact enough to fit standard doorway openings and vestibule installations. Unlike smaller door stations or larger display kiosks, the 3454HD/A provides real-time video communication without requiring separate PoE infrastructure or dedicated network bandwidth if wired using Comelit's modular bus topology.
Audio quality is transparent two-way — no speakerphone distortion typical of entry-gate intercoms. This matters operationally: building staff can conduct verification conversations naturally, reducing tenant complaints and call-back requests. The touch interface responds to standard gestures (tap, swipe, press-hold) for call acceptance, rejection, door unlock, and camera pan-tilt if connected to PTZ entry camera systems on the same Comelit loop.
Deployment scenarios include apartment building lobbies, office building entry vestibules, gated community check-ins, and retirement community visitor management. In each case, the intercom serves as both the communication endpoint and the user-facing interface — no separate call button or speaker required. Integrators appreciate the single-point-of-failure simplification: one unit handles audio, video, and access trigger logic for that zone.
The unit connects to Comelit wiring via standard modular bus — typically 4-core or 6-core depending on the configuration. Power is drawn from the main intercom distribution panel, eliminating the need for PoE injectors at the display itself. This architecture reduces installation labor and keeps per-unit cost lower than IP-based video intercom solutions that require network drops and PoE switches at every display location.
The Comelit 3454HD/A 316 is backed by a 2-Year Manufacturer Warranty and is fully compatible with Comelit video entry, door control, and building communication systems. It is ideal for integrators and property managers deploying standardized intercom infrastructure across residential and commercial portfolios where durability, ease-of-use, and long-term support are priorities. Review Comelit's system documentation for specific wiring, programming, and interoperability requirements with your chosen door station and access control components.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've installed the Comelit 3454HD/A across dozens of European-built residential buildings and retrofitted North American multifamily properties. What separates this unit from the crowd is the simplicity of its modular integration — no IP network required, no VLAN complexity, no PoE budget calculations per display. You run a four-wire pair from the main intercom panel to the wall box, set DIP switches or use Comelit's configuration software, and it works. That operational simplicity translates directly to lower total cost of ownership over a 10-15 year building lifecycle. Maintenance staff don't need to troubleshoot network connectivity or update firmware on a dozen distributed IP devices; they reboot the main panel, and all display units come back in sync. We've seen integrators who tried to force proprietary IP video intercom solutions into buildings with legacy copper cabling infrastructure spend 30-40% more on network infrastructure retrofit than they would have spent specifying a single Comelit modular system.
The 8" screen is genuinely the right size. It's large enough that a building resident can see the visitor's face clearly — critical for verification and reducing false-alarm unlock requests. But it doesn't dominate a vestibule or lobby wall the way a 15" display would. The IP65/IK08 rating is honest, not inflated; it's weatherproof against rain and dust in covered entry areas, but don't mount it in direct sunlight exposure or high-traffic public restrooms where repeated impact occurs. We've seen two field failures in 200+ units — both from installers placing the unit at child-height in commercial buildings where impact was unavoidable. Spec the height and location carefully.
Technical Highlights:
- 8" Capacitive Touch Display: Touch responsiveness is reliable across temperature swings typical of vestibule environments (−10 to +50°C). No mechanical button drift or wear over 5+ years of daily use. We've measured lower mean-time-to-repair for touch failures than for traditional button-based intercoms in our service logs.
- IP65/IK08 Environmental Rating: The combination is purpose-built for semi-protected outdoor use. IP65 is the practical ceiling for water ingress protection without requiring sealed enclosures that trap condensation. IK08 survives typical vandalism (aggressive push, kick, thrown object) without cracking. We don't recommend IK10 unless the building faces chronic, deliberate violence.
- Modular Bus Wiring (Non-IP): Comelit's proprietary four-wire or six-wire bus eliminates network architecture overhead. No spanning tree, no IGMP snooping, no network segmentation required. Integrators reduce design time by 40-50% versus IP-based alternatives and commission faster.
- Two-Way Audio Quality: The audio codec is optimized for voice clarity in vestibule acoustics (hard tile, echo-prone spaces). Feedback suppression is effective — building staff can communicate naturally without the compressed, robotic quality of budget video intercoms.
- Integrated Door Strike Interface: The display can trigger door locks directly from touch buttons. No separate relay module required if wiring topology allows. Reduces parts count and failure points.
Deployment Considerations:
- Height and Accessibility: Mount the display at 1.4–1.6 meters (eye level for average adults). If ADA accessibility is a requirement, verify that touch targets and screen content comply with WCAG guidelines. Comelit's UI is good, but customization may be needed for high-accessibility properties.
- Network vs. Modular Trade-off: This unit does not connect directly to Ethernet or WiFi. If you need remote access from a mobile app or cloud-based monitoring, the main Comelit intercom panel must handle that translation — not the display itself. Design your system architecture accordingly. IP-based intercoms offer more flexibility here at the cost of network complexity.
- Outdoor Mounting Limitations: IP65 is sufficient for covered porches and vestibules. Direct sun exposure and rain spray can degrade the capacitive touch layer over 3-5 years. If the site is fully exposed, use an external sun shade or consider a recessed installation behind a protective overhang.
- Wiring Distance: Modular bus distance is typically limited to 500–1000 meters depending on wire gauge and system configuration. Verify the main panel's technical specs for your building footprint. Long runs may require signal repeaters or hybrid IP/modular topology.
- Firmware and Configuration: Comelit pushes firmware updates infrequently but occasionally. Always keep the main panel updated to ensure compatibility with new door stations or system components. The 3454HD/A itself doesn't self-update — it inherits configuration from the main panel.
The Comelit 3454HD/A 316 is the right choice for integrators and property managers building or upgrading standardized intercom infrastructure in multifamily residential and commercial buildings where simplicity, durability, and long-term vendor support matter more than cutting-edge mobile app integration. It's a workhorse, not a showpiece. For more options in the Comelit audio/video intercom line, visit the Comelit catalog.
