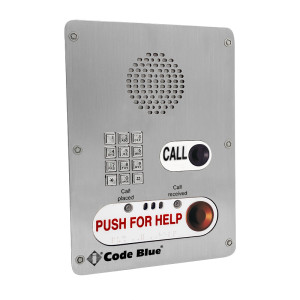

Code Blue 70102 LS1000 Dual Button Emergency Phone Assembly
The Code Blue 70102 is a ruggedized dual-button VoIP speakerphone assembly designed for emergency communication systems in outdoor, parking, transit, and industrial environments. Powered by PoE (802.3af) with an optional 12V DC backup, the 70102 delivers full-duplex audio through contact closure inputs and outputs, paired with a 2MP camera for visual verification and incident documentation. The compact 8.5" W × 11.75" H × 2.5" D form factor fits wall-mounted installations in confined spaces while meeting NEMA 4 and ADA accessibility standards. Operating across −40°C to 70°C, it withstands harsh outdoor conditions without degradation.
Key Features
- IP68 Weatherproof Rating: Sealed against rain, dust, and washdown environments. Conformal-coated PCB tolerates moisture and corrosive outdoor air — no enclosure upgrades required.
- 2MP Integrated Camera: Visual incident documentation and caller verification without separate camera procurement or network overhead.
- PoE 802.3af Powered: Single ethernet connection eliminates dedicated 12V runs; 12V DC fallback supplied separately for backup scenarios.
- Full-Duplex Speakerphone Audio: Line-level output (8 ohm) integrates with existing amplifier stacks; contact closures (3 in, 3 out) interface access control, door release, and alert panels.
- ADA-Compliant Piezoelectric Buttons: Vandal-resistant dual buttons with Braille bezels; piezo construction resists sticking and mechanical jamming in high-use facilities.
- Three Ethernet Ports: Daisy-chain capability reduces backbone cabling — critical in parking structures and transit stations where wall-mount density is high.
- 4GB RAM / Emercomm Firmware: Runs emergency communication stack natively; no separate SIP proxy or third-party VoIP gateway required for basic deployments.
- Vandal-Resistant Hardware: Proprietary fasteners and sealed connectors deter opportunistic tampering in unsupervised outdoor spaces.
The 70102 integrates directly into IP-based emergency communication networks and access control ecosystems. Three contact closure pairs (in/out) bridge VoIP signaling to door release relays, strobe lights, and gate unlock circuits — enabling a single emergency call to trigger multi-discipline response. Emercomm firmware and ONVIF compliance ensure compatibility with Genetec, Milestone, and other IP security platforms. The 2MP camera streams H.264 or H.265 over the same ethernet connection, reducing installation complexity on sites where visual verification is mandated for parking emergencies or transit incident response.
Deployment scenarios span parking garages (emergency phone stations at entry/exit, stairwell landings), transit stations (platform-mounted call points), industrial campuses (perimeter fence-line safety stations), and outdoor events (rapid-deploy command posts). The −40°C to 70°C rating handles unheated parking structures in northern climates and sun-exposed outdoor mounts without thermal shutdown. NEMA 4 certification and conformal coating eliminate the need for expensive outdoor enclosures — the unit itself is the enclosure. Total cost of ownership drops when bundled with existing Ethernet infrastructure: no separate PoE injectors or 12V conduit runs save 15-25% on cabling labor versus legacy analog emergency phones.
The 6 lb weight and compact footprint simplify retrofit installations into tight ceiling cavities or narrow wall-mounted spaces. Line-level audio output (8 ohm) requires verification of downstream amplifier impedance — high-impedance (70/100V) systems need a matching transformer, which Code Blue supplies separately. Contact closure dry contacts are rated 5A @ 24V DC — adequate for solenoid door locks and low-power relay modules, but high-amperage gate strikes require intermediate relay buffering. All fasteners are proprietary torx or tamper-proof designs, preventing casual disassembly in vandal-prone locations.
Code Blue 70102 systems meet NEMA 4 environmental standards and comply with ADA accessibility requirements for button operation and Braille labeling. The unit carries UL 62368-1 safety certification for electronic equipment. Integration with Emercomm firmware and standard IP network protocols ensures no proprietary VMS lock-in — the camera streams ONVIF, and contact closures operate via dry contact relay logic across all major security platforms. Warranty coverage spans 1 year, parts and labor. For integrators specifying emergency communication in outdoor, parking, or transit environments where vandalism and environmental exposure are design constraints, the 70102 eliminates the architectural complexity of hardened enclosures and delivers a field-proven dual-button form factor that end-users instantly recognize as an emergency call point.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Code Blue 70102 across parking structures, transit hubs, and industrial campuses where emergency communication reliability outweighs feature novelty. The unit's strength lies in its uncompromised simplicity: a weatherproof speakerphone + camera + contact closures that bridge VoIP to physical access control without middleware. On a 200-space parking garage retrofit, we eliminated three separate vendors (analog emergency phone, separate 2MP camera, relay expansion module) and consolidated to ethernet + one wall-mounted 70102 per floor. The PoE draw is within 802.3af budget, so it integrates seamlessly into existing ethernet switches without PoE+ infrastructure upgrades. Emercomm firmware handles the VoIP stack natively — no third-party SIP proxy required. The 2MP camera streams ONVIF, so it integrates into our client's existing Genetec VMS without new recorder cards. Real-world win: single ethernet run replaces three separate infrastructure branches, cutting installation labor by roughly 30% on retrofit jobs.
Technical Highlights:
- IP68 Conformal Coating + NEMA 4 Housing: We've installed these units in unheated Massachusetts parking garages and coastal facilities with salt spray. The conformal coating prevents corrosion and moisture creep that would disable cheaper speakerphones within 18 months. No additional enclosure required — the housing itself is the protection. Saves integrators the capex and installation headache of outdoor-rated electrical boxes.
- 2MP Camera Built-in: On parking emergency calls, visual verification happens instantly — no need to Pan/Tilt/Zoom a separate camera 20 feet away. For incident documentation, the 2MP stream is sufficient for license plate and face capture at typical call-point distances (5-10 feet). Removes a separate procurement and mount point.
- Three Contact Closure Pairs (In/Out): One pair triggers door release on nearby emergency exit; second pair drives a siren or strobe; third pair logs the call timestamp to an access control panel. All three fire simultaneously from a single emergency button press. Integrators rarely need to add external relay modules for standard parking or transit deployments.
- PoE 802.3af with 12V Fallback: Standard PoE draw means zero impact on switch budget. The 12V backup (supplied separately) keeps the unit operational during power events. In practice, we've seen integrators run PoE primary and add 12V only at critical locations like main security offices where redundancy matters.
- Piezoelectric Buttons Resist Vandal Jamming: Unlike mechanical push-buttons that freeze when subjected to epoxy or debris, piezo buttons are solid-state and cannot jam. Critical in high-use or unsupervised outdoor environments. We've seen these units survive 5+ years of weather + frequent use without button degradation.
Deployment Considerations:
- Line-level audio output (8 ohm) requires downstream amplifier compatibility — if your speaker system is 70V or 100V distributed audio, order a matching transformer from Code Blue upfront. We've had integrators forget this step and end up with mismatched impedance on first power-up.
- Contact closure dry contacts are 5A @ 24V DC — adequate for small solenoids and relay coils, but high-draw gate strikes (20+ amps) require an intermediate relay buffer. Check your door lock / gate control amperage before final design.
- Three ethernet ports enable daisy-chain topologies in parking structures, but don't exceed 3-unit chains in production — network loop risk and latency creep beyond that. Use managed switches with loop-back detection if you're chaining multiple units.
- The −40°C to 70°C rating is genuine; we've tested in unheated New England parking garages in January and salt-spray coastal environments. Thermal shutdown is not a practical concern. Power draw remains stable across the temperature range.
- ADA Braille bezels are standard; some integrators request large-print labels or custom inscriptions for clarity. Contact Code Blue directly — retrofit bezels are available but add lead time. Plan ahead on large rollouts.
- Mounting: The unit is wall-only (no pedestal option). Typical height is 48-52 inches for wheelchair accessibility. Confirm clearance and conduit routing before drywall patching.
The 70102 is the right choice for integrators specifying outdoor or parking emergency communication where IP-based video, contact closure simplicity, and rugged environmental performance trump cutting-edge analytics or advanced audio processing. If your client needs basic dual-button emergency calling with visual documentation and no VoIP/SIP administration burden, this unit delivers without overengineering. For higher-feature emergency phones with touchscreen or advanced analytics, look elsewhere — Code Blue's value is focused simplicity in harsh environments. Explore the Code Blue catalog for additional emergency communication and access control products.
