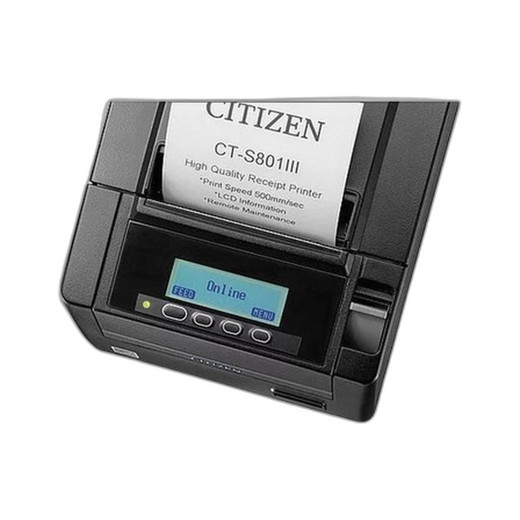

Citizen IF1-PA01 Parallel Interface Card

Overview

The Citizen IF1-PA01 is a parallel interface expansion card for the CTS801 platform and compatible Citizen thermal printer series. This accessory adds parallel port connectivity to printers that require legacy parallel communication — solving integration scenarios where your existing warehouse management system, point-of-sale terminal, or label application communicates exclusively via Centronics or standard parallel protocol rather than USB or Ethernet.

Compatibility

Install the IF1-PA01 into printers from the following Citizen families: CT-S600/800 series, CL-S400DT, CL-S6621, and CL-E720. Verify your specific printer model supports interface card installation before ordering — not all variants in these families accept optional interface modules. Consult your printer's internal documentation or contact the manufacturer's technical line if you are uncertain whether your unit has an interface card slot.

Installation Notes

Interface cards for this platform typically require powering down the printer and removing the access panel. Insert the IF1-PA01 into the designated interface slot until fully seated. Secure with any provided retention clips or screws. Reapply power and verify the printer recognizes the new interface in the printer's menu system before connecting legacy parallel cables. Use standard 36-pin Centronics or DB-25 parallel cabling appropriate to your control device.
