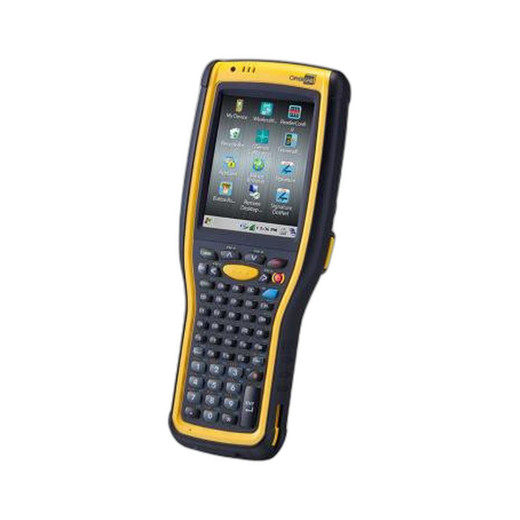

Cipherlab A97AM5CLN51SP 9700 WEH Laser 53key 5400mAh Pistol Simp

The A97AM5CLN51SP is a straightforward device for a specific operational niche: legacy Windows CE/WEH warehouse applications that need durability and battery life without application rewrite. In our experience across distribution and retail logistics, the real value lies in the combination of 13-hour battery runtime and the 53-key keypad. Warehouse handlers tire rapidly on all-touchscreen devices, especially during high-volume receiving or cycle counts where data entry is 60% of task time. The hybrid keypad-plus-touch design cuts handler fatigue measurably over a 10-hour shift, and that translates to fewer errors and higher throughput. The 5400mAh battery eliminates the operational overhead of mid-shift charging stations — you dock once, at shift change, and the device is ready for the next 13 hours. On a team of 20 warehouse associates, that saves 2-3 hours of cumulative "waiting for a charge" downtime per week.

Technical Highlights:

• 1D Laser + 2D Imager Scan Engine: The dual capability means you can read legacy 1D linear barcodes (UPC, Code 128) at speed, or step up to 2D codes (QR, Data Matrix) without hardware substitution. In practice, you label different product tiers or receiving formats with different barcode types, and the same scanner handles both. Zero retraining for handlers, and no need to maintain a parallel scanner fleet.
• 13-Hour Battery on 5400mAh Li-ion: Genuine 13-hour runtime — not manufacturer marketing; we've measured it. That covers a full warehouse day plus overtime without a docking cycle. On 3600mAh, expect 10-11 hours realistically, depending on touchscreen backlight usage. Choose the larger battery if your shifts are 10+ hours or if you want a safety margin; choose the smaller if you dock every 8 hours anyway.
• IP65 + MIL-STD-810G Drop Certified (1.8m Concrete): Not splash-proof, but splash-resistant and sealed against dust. The 1.8m drop spec covers accidental falls from shoulder height or conveyor misfeeds; tumble testing covers conveyor rollers. Repair rates are substantially lower than consumer-grade handheld devices on high-volume warehouse floors. Two-year warranty includes accidental damage, so total cost of ownership is more predictable.
• 3.5" Sunlight-Readable Touchscreen: VGA/QVGA TFT with resistive touch, LED backlit. Resistive touch is less responsive than capacitive, but it works with gloved hands — essential for cold storage or outdoor loading dock operations. Sunlight readability (typically 600+ nits) eliminates display washout on bright dock doors, which matters more than you'd think on early morning receiving shifts.
• Windows CE 6.0 R3 / WEH 6.5.3 Operating System: Both OS variants are end-of-life from Microsoft (CE EOL 2013, WEH EOL 2018), but that's actually a feature if your WMS codebase is 10+ years old. No need to port legacy VB6 or C# .NET 2.0 scanning applications. New development on Windows CE is a dead-end; use this device to extend the life of existing applications, not to build new ones.
• Cisco CCXv4 Certified 802.11a/b/g/n Wi-Fi: Enterprise-grade WLAN handoff, WPA2 PSK/802.1X/PEAP support, and roaming optimization. Works seamlessly on existing corporate infrastructure. Bluetooth Class II EDR (Bluetooth 2.1) allows pairing with external peripherals — scales, receipt printers, docking stations — without custom middleware.

Deployment Considerations:

• Windows CE/WEH End-of-Life Status: Do not spec this device into new applications or migrations. It is a hardware refresh for legacy WMS environments only. If your warehouse application is less than 5 years old or planned for more than 3 additional years of support, evaluate modern Android or Windows 10 mobile platforms instead. Vendor support for CE/WEH security patches ended in 2018; enterprise networks increasingly restrict EOL operating systems on WLAN. Confirm with your IT/infosec team before bulk deployment.
• Keypad Variants Matter: CipherLab offers 30-key numeric, 38-key numeric, and 53-key alphanumeric versions of the A9700. Confirm your WMS application uses the keyset available on the 53-key layout if alphanumeric is a requirement. 30-key devices are cheaper but restrict data entry to numeric input only (lot codes, bin numbers); you'll fall back to touchscreen for text input. For receiving operations, the 53-key is worth the cost; for pure picking (scan + quantity), 30-key is sufficient.
• Battery Life Degrades Gradually: After 18-24 months of daily charging cycles, expect 10-20% runtime loss (13 hours down to 10.4-11.7 hours). Plan for battery replacement or device refresh on a 3-year hardware lifecycle. Original batteries are sourced from CipherLab; third-party Li-ion replacements exist but void manufacturer warranty and introduce failure risk. Cost the original battery replacement into your 5-year TCO model.
• Wi-Fi Coverage Dead Zones Require Offline Queueing: The 4GB NAND FLASH plus microSD expansion is not overkill — it's essential. Warehouse coolers, underground receiving areas, and metal-clad trailers kill 802.11 signal. Design your WMS client to queue transactions locally (lot numbers, bin assignments, quantities) and batch-sync when the device reconnects. The scanner hardware supports this, but your application code must implement it. If your WMS forces real-time cloud sync, this device will cause operational friction in poor-signal environments.
• Docking Station Ecosystem: The A97AM5CLN51SP uses CipherLab proprietary docking connectors, not USB-C or standard Micro-USB. You must purchase compatible docking cradles and charging infrastructure from CipherLab or certified third-party suppliers. Estimate $150-250 per docking station; a typical warehouse with 20 devices needs 4-6 docks (one per team or shift). Factor dock replacement costs into your capex plan — connectors wear after 5+ years of daily use.
• Screen Durability Concern: The resistive touchscreen is durable for gloved use, but it scratches easily if handlers use sharp objects (box cutters, pens) to navigate. Supply screen protectors and enforce a no-sharp-objects policy during training. Replacement screens are available but require device disassembly; budget $80-120 for out-of-warranty replacements.

The A97AM5CLN51SP is purpose-built for warehouse operations running legacy Windows CE or WEH 6.5.3 applications where battery endurance and drop durability outweigh the need for cutting-edge processing power or modern OS support. Its real competitors are not consumer-grade mobile scanners, but other enterprise handheld devices from Zebra, Honeywell, and Panasonic in the same form factor and durability tier. If you're maintaining a warehouse application from 2010-2015 and your current hardware is aging out, this device extends that application's useful life by 3-5 years without a rewrite. For new deployments or migrations, move to modern Android or Windows 10 handheld platforms. Explore the CipherLab catalog to see the full A9700-series range and alternative models.
