Cipherlab A97AM1CFN31UP 9700 WEH X2 30key 3600mAh Pistol USB Kit
Cipherlab A97AM1CFN31UP 9700 WEH X2 30key 3600mAh Pistol USB Kit
Cipherlab A97AM1CFN31UP 9700 WEH X2 30key 3600mAh Pistol USB Kit
Cipherlab A97AM1CFN31UP 9700 WEH X2 30key 3600mAh Pistol USB Kit
Product images are provided for reference and may not represent the exact model, configuration, or included components.

No Bots, Just Experts

Questions about this product? Free pre-sales support from a senior specialist — product questions, compatibility checks, BOM quotes, price confirmation — typically answered within one business day. Need camera placement or system design work? Engineering time is $175 per hour (qty 1 = 1 hour). Hardware buyers get up to one hour ($175) credited back on their order.

Get Free Pre-Sales Support Buy Design Hours ($175/hr)
Description

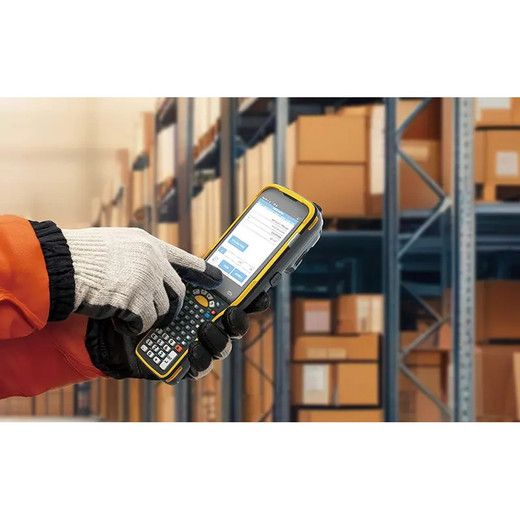

Cipherlab A97AM1CFN31UP Handheld Mobile Computer

Overview

The Cipherlab A97AM1CFN31UP 9700 is a rugged handheld mobile computer designed for warehouse, logistics, and field operations. This device combines 2D barcode scanning, WiFi connectivity, and industrial durability into a compact form factor. The 3.5" touchscreen display operates in high-light environments, while the IP65 rating and 1.8m drop certification support demanding warehouse conditions.

Technical Specifications

Powered by TI OMAP 3730 1GHz processor with 512MB DDR SDRAM and 4GB NAND Flash storage, expandable via microSD (up to 32GB). Runs Windows CE 6.0 R3 or Windows Embedded Handheld 6.5.3. The 3600mAh lithium-ion battery delivers up to 13 hours of operation. WiFi connectivity enables real-time data synchronization. 30-key numeric keypad with LED backlight provides tactile input in low-light conditions.

Durability & Connectivity

IP65 rating protects against dust and water immersion. SGS-certified drop performance: 1.8m multiple drops to concrete per MIL-STD-810G standards. Weighs 447g, fitting ergonomically for extended handheld use.

Package Contents

  • Cipherlab A97AM1CFN31UP mobile computer
  • USB charging/data cable
  • Pistol grip cradle
Expert Analysis
Specifications
Product Type: Handheld Scanner
Connectivity: Wi-Fi
IP Rating: IP65
Dimensions: 214 mm x 87 mm x 47 mm
Weight: 447g (3600 mAh) / 478g (5400 mAh)
Scan Engine: 2D
Battery Capacity: 3600mAh
CPU: TI OMAP 3730 1GHz
RAM: 4GB Nand FLASH / 512MB DDR SDRAM
Operating System: Windows® CE 6.0 R3 / Windows® Embedded Handheld 6.5.3
Battery Life: 13
Display: 3.5" VGA TFT LCD touchscreen
Drop Spec: 1.8 m drop, IP65, MIL-STD-810G
Expansion Slots: Micro SD Slot With SDHC Support (up to 32 GB)
Keypad: 30-key, 38-key numeric, 53-key alphanumeric
Power Supply: Battery
Battery: 3600mAh
Warranty: 2-Year Warranty
Package Contents: Cipherlab A97AM1CFN31UP mobile computer; USB charging/data cable; Pistol grip cradle
Processor: TI OMAP 3730 1GHz
Memory: 4GB Nand FLASH / 512MB DDR SDRAM
Wireless: WLAN: Cisco® CCXv4 Certified IEEE 802.11 a/b/g/n WPAN: Bluetooth® Class II, V2.1 with Enhanced Data Rate (EDR)
Q&A
Reviews
Product Video
Have Questions?

Cipherlab A97AM1CFN31UP 9700 WEH X2 30key 3600mAh Pistol USB Kit

$2,362.23
$1,799.99
Add to Cart

RELATED PRODUCTS

Save $540.28
Cipherlab A97AM1CFN31SP 9700 WEH X2 30key 3600mAh Pistol Simple
Add to Cart The item has been added

CipherLab A97AM1CFN31SP

Cipherlab A97AM1CFN31SP 9700 WEH X2 30key 3600mAh Pistol Simple

Rugged 2D scanner with 13-hour battery and IP65 dust/water protection

  • Standard-range 2D imager for warehouse rack labels and receipts
  • 13-hour single daily charge on 3600mAh covers full shift cycles
  • IP65 3600mAh pistol-grip 9700 WEH X2 30-key handheld scanner
Usually Ships in 2-3 Weeks Free shipping over $499
$2,270.27 $1,729.99 Save $540.28
Add to Cart
The item has been added Add to quote
$2,270.27 $1,729.99 Save $540.28
Save $540.28 Add to cart Add to quote
Save $425.49
Cipherlab A97AM1CLN31UP 9700 WEH Laser 30key 3600mAh Pistol USB
Add to Cart The item has been added

CipherLab A97AM1CLN31UP

Cipherlab A97AM1CLN31UP 9700 WEH Laser 30key 3600mAh Pistol USB

Rugged 2D laser scanner with 13-hour battery for warehouse operations

  • Windows-based rugged handheld mobile computer for warehouse use
  • 2D laser scan engine with real-time data capture capability
  • IP65 3600mAh pistol-grip 9700 WEH laser USB kit handheld
Usually Ships in 2-3 Weeks Free shipping over $499
$1,787.48 $1,361.99 Save $425.49
Add to Cart
The item has been added Add to quote
$1,787.48 $1,361.99 Save $425.49
Save $425.49 Add to cart Add to quote
Save $519.06

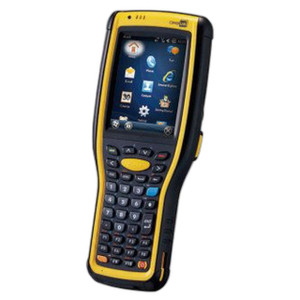

Cipherlab A97AM1CFN31S1 9700 WEH X2 30key 3600mAh Simple Pack
