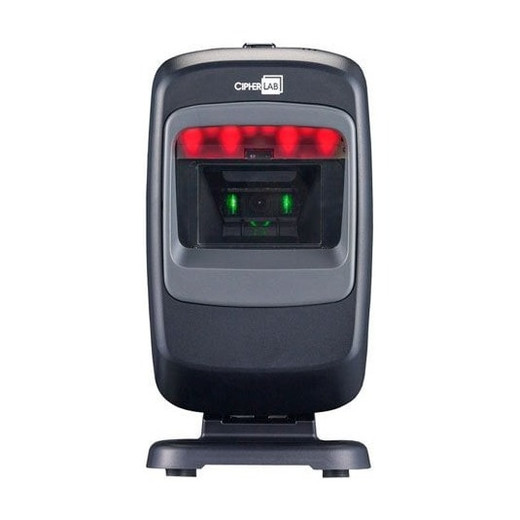

Cipherlab A2220UBDN0001 2D UHF USB Barcode Scanner

The Cipherlab A2220UBDN0001 is a fixed-position 2D barcode scanner designed for warehouse, retail, and logistics environments where reliable data capture from presentation-style workflows is required. Built with IP52-rated housing and military-grade durability, this scanner integrates directly into point-of-sale, fulfillment, and inventory systems via USB connectivity.

Overview

This 2D area imager captures both 1D and 2D barcode symbologies with consistent accuracy in medium-range presentation scanning applications. The A2220UBDN0001 is engineered for fixed-mount or counter-top placement where operators present items or barcoded documents to the scanner window. Its compact footprint (83 × 80 × 150 mm) and black finish integrate seamlessly into standard checkout or receiving workstations. IP52 protection shields against dust and water splash—common in warehouse environments where humidity, light cleaning, and ambient debris are present. The 1.5 m (4.9 ft) concrete drop specification confirms ruggedness across multiple drops, meeting the reliability demands of high-volume logistics operations.

Key Features

• 2D Area Imager Engine: Captures both 1D and 2D barcode formats simultaneously without repositioning
• Presentation Mode Scanning: Optimized for fixed-position, operator-presented barcode workflows typical of point-of-sale and shipping/receiving stations
• Comprehensive 1D Symbology Support: Codabar, Code 39, Code 93, Code 128, GS1 DataBar (RSS), Industrial 2 of 5, Interleave 2 of 5, ISBT-128, Italian and French Pharmacodes, Matrix 2 of 5, MSI, Plessey, Telepen, UPC/EAN/GS1-128, Code 11, and Chinese25 (N4680)
• Comprehensive 2D Symbology Support: PDF417, MicroPDF417, Data Matrix, QR Code, Micro QR Code, Aztec, MaxiCode, Composite Codes, and HanXin (N4680)
• IP52 Dust and Moisture Protection: Withstands dust ingress and water spray in active warehouse environments
• Drop-Tested Durability: Survives 1.5 m (4.9 ft) multiple drops onto concrete without performance loss
• USB Connectivity: Direct connection to workstations, POS terminals, and logistics management systems without additional gateways
• Compact Black Housing: 83 × 80 × 150 mm dimensions fit standard counter and mounting configurations

Integration & Compatibility

The A2220UBDN0001 connects via standard USB, making it compatible with Windows-based POS systems, inventory management software, and warehouse control systems. No special drivers or middleware are required for most ERP and logistics platforms. The fixed presentation mode design eliminates the need for operator training on scanning angles—items are simply presented to the scanner window for rapid capture. Multi-barcode reading capability supports both legacy 1D inventory systems and modern 2D supply chain workflows, enabling gradual migration paths for facilities managing mixed barcode environments.

Deployment Considerations

The IP52 rating and concrete drop durability make the A2220UBDN0001 suitable for high-traffic warehouse, fulfillment, and retail environments where frequent cleaning and occasional impacts are expected. Presentation mode operation is ideal for fixed-position checkout, shipping/receiving, and quality-assurance scanning stations. The compact form factor minimizes counter space while maintaining ergonomic operator access. USB power and data connectivity simplify installation in existing workstations without requiring battery management or wireless infrastructure.

Karl Wilson

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've evaluated the Cipherlab A2220UBDN0001 for several logistics clients transitioning from single-format (1D-only) barcode systems to multi-format capture. This scanner delivers solid value for fixed-position, high-volume presentation workflows where durability and cost efficiency matter more than portability.

Technical Highlights:

• 2D Area Imager with Dual-Format Support: Reads both 1D and 2D codes without repositioning, supporting legacy UPC/EAN systems and modern QR Code / Data Matrix workflows simultaneously
• IP52 Ruggedness: Withstands warehouse-grade humidity, dust, and occasional water spray; drop-tested to 1.5 m on concrete, confirming durability in active fulfillment environments
• USB Direct Integration: Eliminates wireless complexity and battery dependency—plug into any POS terminal or warehouse control system with native USB support

Deployment Considerations:

• Presentation mode design requires fixed mounting or counter placement; not suitable for mobile or handheld scanning operations
• IP52 protection is sufficient for typical warehouse and retail spray/dust exposure but not for sustained submersion or high-pressure wash-down environments

The A2220UBDN0001 is a reliable workhorse for facilities needing durable, multi-format barcode capture at fixed checkpoints. Pair it with standard USB cable management and it requires minimal ongoing support. Recommended for shipping/receiving, point-of-sale, and quality-assurance stations in mid-to-high-volume logistics and retail operations.
