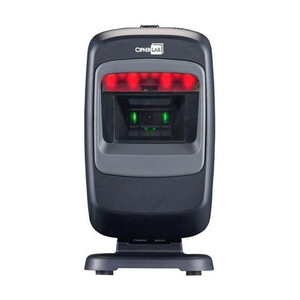

Cipherlab A2200NBUN0201 2D USB Barcode Scanner

Cipherlab A2200NBUN0201 2D USB Barcode Scanner

Overview

The Cipherlab A2200NBUN0201 is a compact, wired 2D barcode scanner designed for point-of-sale, retail, and warehouse applications requiring reliable decode performance across multiple barcode formats. This presentation-mode scanner connects via USB, eliminating battery management while delivering consistent scan capture in high-throughput environments. With an IP52 rating and 1.5 m drop durability, the A2200NBUN0201 balances ruggedness with portability for integration into fixed checkout stations and mobile scanning workflows.

Key Features

• 2D Scan Engine: Captures both 1D linear and 2D matrix barcode formats in a single device, eliminating the need for separate scanners
• Presentation Mode: Hands-free scanning capability—position barcodes in front of the scanner window for automatic detection and capture
• USB Connectivity: Direct connection to host systems via USB interface; no wireless pairing or battery charging required
• IP52 Protection: Dust and splash resistance rated to IP52, suitable for retail and light warehouse environments with occasional exposure to moisture and dust
• Drop Durability: Withstands multiple 1.5 m (4.9 ft) drops onto concrete, meeting the physical demands of busy retail and logistics operations
• Compact Form Factor: Dimensions of 83 × 80 × 150 mm (3.3 × 3.2 × 5.9 in) enable flexible desktop mounting and space-constrained counter installations
• Black Finish: Professional appearance suitable for customer-facing retail environments

Comprehensive Symbology Support

The A2200NBUN0201 decodes a broad range of 1D and 2D symbologies, making it suitable for multi-industry deployments:

• 1D Symbologies: Codabar, Code 39, Code 93, Code 128, GS1 DataBar (RSS), Industrial 2 of 5, Interleave 2 of 5, ISBT-128, Italian and French Pharmacodes, Matrix 2 of 5, MSI, Plessey, Telepen, UPC/EAN/GS1-128, Code 11, Chinese25 (N4680)
• 2D Symbologies: PDF417, MicroPDF417, Data Matrix, QR Code, Micro QR Code, Aztec, MaxiCode, Composite Codes, HanXin (N4680)

Integration & Deployment Considerations

USB connection simplifies installation in retail POS terminals, self-checkout kiosks, and warehouse scanning stations. No wireless configuration, security provisioning, or battery management is required. The scanner operates as a plug-and-play HID (Human Interface Device), recognized by standard operating systems without custom drivers. Presentation mode enables hands-free workflows where operators position items for scanning, reducing fatigue during high-volume transaction processing. The IP52 rating and drop durability provide confidence in retail and light-industrial environments where spills, drops, and dust exposure are common operational realities.

Karl Wilson

Perspective based on aggregated and affiliated engineering team experience.

During a recent retail integration project, I evaluated the Cipherlab A2200NBUN0201 for a chain planning to upgrade their point-of-sale scanning infrastructure. The device's presentation-mode design and comprehensive symbology support make it a straightforward choice for environments running GS1-compliant supply chains or mixed retail/pharmacy operations.

Technical Highlights:

• 2D Imaging Engine: Eliminates the need for separate 1D and 2D scanners, reducing capital expenditure and simplifying spare-parts inventory
• IP52 Durability: Handles typical retail wear—spilled beverages, dust from cardboard handling, and accidental floor contact—without requiring enclosures or protective cases
• Symbology Breadth: Supports 1D formats (UPC, Code 128, DataBar) and 2D formats (QR, Data Matrix, PDF417), enabling use across retail, healthcare, and logistics verticals

Deployment Considerations:

• USB connection mandates proximity to host hardware—suitable for fixed checkout or mobile carts with docking stations, less ideal for roaming warehouse applications
• Presentation mode reduces operator strain during high-throughput scanning but requires clear sightline positioning; ensure adequate counter/mount space
• IP52 rating provides splash and dust resistance but does not guarantee submersion capability; avoid washdown-intensive environments

For retailers, convenience stores, pharmacies, or small-to-medium logistics operations requiring reliable 2D barcode capture without wireless complexity, the A2200NBUN0201 delivers solid performance at a competitive price point. Its drop durability and IP52 rating justify the investment in environments where scanner replacement costs matter.
