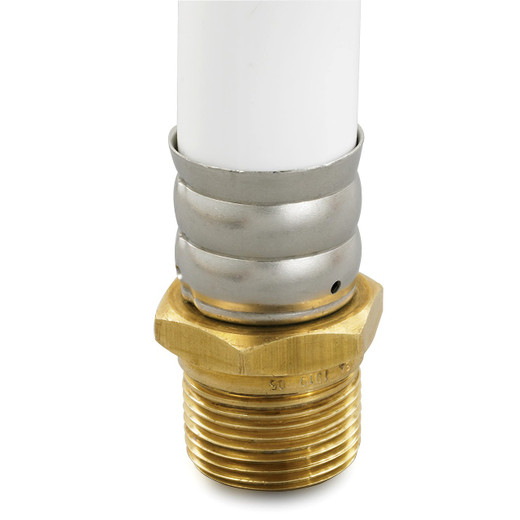

APC by Schneider Electric ACAC20006 CDU Flexible Fluid Piping Couplings
Overview
The ACAC20006 is a pack of four flexible fluid piping couplings designed for use with APC Cooling Distribution Units (CDUs) in rack-based liquid cooling deployments. At 3" W × 3" D × 1.5" H and 1.50 lb per pack, these are purpose-built connection fittings for data center environments where direct liquid cooling infrastructure connects server racks to facility-side chilled water or coolant loops. If your facility is transitioning high-density compute racks to liquid cooling — whether for AI workloads, HPC clusters, or dense blade chassis — having the correct flexible coupling on hand is a prerequisite before commissioning the CDU circuit.
Explore the full APC by Schneider Electric catalog for compatible CDUs, power distribution, and data center infrastructure components.
Key Features
- 4 Couplings Per Pack: Supplied in a quantity of four, so a single order of the ACAC20006 covers both supply and return connections on two racks, or provides spares for maintenance — reducing the risk of a CDU commissioning delay because of a missing fitting.
- Flexible Design: The flexible construction tolerates minor misalignment between rack-mounted CDU ports and facility piping — practical in raised-floor environments where piping runs can shift slightly between rack moves or floor tile repositioning.
- Rack-Mount Form Factor: Designed to integrate directly within the rack footprint at 3" × 3" × 1.5", these couplings don't require additional bracket hardware or extended plumbing runs that would complicate in-row cooling layouts.
- Compact and Lightweight: At 1.50 lb for the four-pack, logistics and on-site handling are straightforward — relevant when technicians are working overhead or in tight aisle configurations common to high-density deployments.
- APC CDU Ecosystem Fit: Engineered for APC CDU product lines, meaning thread spec, pressure rating, and connector geometry are matched to APC's liquid cooling architecture — eliminating the guesswork and leak risk of using generic plumbing adapters in a pressurized coolant circuit.
- Distribution Frames and Racks Category: Classified within rack infrastructure, these couplings are ordered and stocked alongside rack PDUs and cable management — simplifying procurement for facilities teams managing multi-vendor rack builds under a single purchase order.
Integration and Compatibility
The ACAC20006 is specific to APC CDU (Cooling Distribution Unit) deployments within rack environments. These couplings are not universal fluid fittings — they are sized and threaded for APC's liquid cooling ecosystem. Before ordering, confirm the CDU model in your deployment supports the ACAC20006 coupling interface. Consult APC's CDU compatibility documentation or your APC liquid cooling infrastructure team to verify fitment against your specific CDU model and coolant loop design.
For data centers moving toward direct liquid cooling for high-density compute and networking infrastructure, having compatible couplings pre-staged before a CDU installation prevents scheduling delays — CDU commissioning typically cannot proceed until all piping connections are confirmed leak-free and properly torqued. Keep at least one additional pack on site as a maintenance spare, particularly in facilities with active liquid cooling circuits where an unplanned coupling replacement needs to happen quickly.
Pair these couplings with APC CDU units and supporting rack power distribution components to build out a complete in-rack liquid cooling infrastructure. For planning guidance on liquid cooling architecture and capacity requirements, review data center cooling planning resources before specifying CDU count and coupling inventory.
What's in the Box
- 4× CDU Flexible Fluid Piping Couplings (ACAC20006)
Frequently Asked Questions
Q: How many couplings are included in one order of the ACAC20006?
A: Each pack of the ACAC20006 contains four flexible fluid piping couplings.
Q: What APC product line are these couplings designed for?
A: The ACAC20006 couplings are designed for use with APC CDU (Cooling Distribution Unit) products in rack-based liquid cooling deployments. They are not universal fluid fittings and should be verified for compatibility with your specific APC CDU model before ordering.
Q: What are the dimensions and weight of the ACAC20006 pack?
A: The pack measures 3" W × 3" D × 1.5" H and weighs 1.50 lb.
Q: Can the ACAC20006 be used with third-party or non-APC CDUs?
A: The ACAC20006 is engineered for APC CDU systems. Compatibility with third-party cooling distribution units is not established in available evidence — confirm thread and connector specifications with APC before attempting to use these couplings outside the APC CDU ecosystem.
Q: Are these couplings rack-mounted?
A: Yes — the ACAC20006 couplings are designed for rack-mount installation, integrating within the rack footprint at 3" × 3" × 1.5" without requiring external bracket hardware.
Q: How many packs should I order for a typical dual-rack CDU installation?
A: A single pack of four couplings covers supply and return connections for two racks. For a standard dual-rack CDU setup, one pack typically provides the required fittings, with any remaining couplings available as on-site maintenance spares.
The ACAC20006 is one of those parts that only matters when it's missing — four flexible fluid piping couplings per pack, sized for APC CDU rack installations where every connection point on a pressurized coolant circuit needs to be the right fitting. I've seen CDU commissioning stall for a full day over a single mismatched coupling, so stocking these alongside the CDU itself is standard practice on any liquid cooling build-out.
Technical Highlights:
- 4-Per-Pack Quantity: Covers supply and return on two racks in a single order — or one rack with two maintenance spares on the shelf, which is the right posture for any live liquid cooling circuit.
- Compact Rack Footprint: At 3" × 3" × 1.5", these integrate flush within the rack without extending into aisle space — important in high-density in-row cooling layouts where every inch of aisle clearance matters for airflow management.
- 1.50 lb Pack Weight: Negligible logistics overhead — technicians can stage these at the rack without dedicated lifting equipment, relevant when working in overhead or confined aisle configurations.
Deployment Considerations:
- Confirm coupling compatibility against your specific APC CDU model number before installation — the ACAC20006 is engineered for APC CDU systems, and thread/pressure ratings must match the CDU's piping interface exactly.
- Order at least one additional pack as a site spare before commissioning a live coolant circuit; sourcing a replacement coupling after a circuit is pressurized and active is a higher-urgency, higher-cost procurement than pre-staging a spare pack.
The ACAC20006 is the right specification for facilities teams commissioning APC CDU-based direct liquid cooling in high-density AI or HPC rack environments where unplanned downtime during coolant circuit work carries real operational cost.
