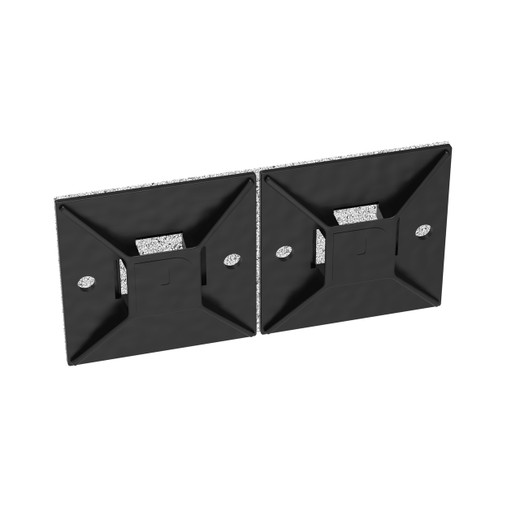

Panduit ABM3H-AV-L0 Cable Tie Mount with VHB Adhesive Base
The Panduit ABM3H-AV-L0 is a black nylon 6.6 cable tie mount with a factory-applied VHB (very high bond) adhesive backing — the go-to choice when drilling or fastening into a surface is not an option but you still need a secure, permanent anchor for cable tie bundles. At 1.5 in. × 1.5 in. (38.1 × 25.4 mm) footprint and only 0.23 in. (5.8 mm) tall, it sits nearly flush once pressed in place. Sold in packs of 50, with a carton quantity of 250, it fits naturally into structured cabling jobs and wire management installations where you're mounting in bulk. The ABM3H-AV-L0 (often searched as ABM3H AV L0) is part of Panduit's broad Panduit cable management line and ships factory-new from verified supply.
Key Features
- VHB Adhesive Backing: The pre-applied very high bond adhesive eliminates the need for screws, anchors, or drilling — press onto a clean, flat surface and the mount stays. This is what separates it from screw-base mounts in retrofit or finished-surface installations where puncturing a surface isn't acceptable.
- Nylon 6.6 Construction: Nylon 6.6 is the workhorse polymer in professional cable management — higher melting point and better tensile strength than nylon 6. Relevant in equipment rooms or above-ceiling runs where temperatures and mechanical stress on bundles are a real concern.
- 1.5 in. × 1.5 in. Base (38.1 mm × 38.1 mm): A larger footprint than compact mounts distributes adhesive contact area across the surface, improving peel and shear resistance on smooth panels, cable trays, and enclosure walls. If you've had small-base mounts pop off after a few months, the larger contact patch here is the spec to notice.
- 0.23 in. (5.8 mm) Profile Height: Low-profile design keeps bundles close to the mounting surface, reducing leverage on the adhesive joint and giving a neater finished appearance inside panels and raceways.
- Compatible Tie Cross-Sections — Miniature Through Light-Heavy: Works with Panduit miniature, intermediate, standard, and light-heavy cross-section ties. That range covers the vast majority of Panduit's catalog ties, so you're not locked into a single tie series — one mount SKU handles mixed cable gauge installations.
- RoHS Compliant: Meets RoHS requirements, which matters for projects delivered into the EU or any customer spec that bans restricted hazardous substances. No substitution required for compliant builds.
- cULus Listed — 62275 Type 1 & 11 (E136577): UL 62275 listing covers cable management systems for electrical installations. Type 1 and 11 listings under file E136577 give specifying engineers and AHJs (authorities having jurisdiction) a verifiable certification reference — important when the install has to pass inspection.
- Pack of 50 / Carton of 250: The 50-unit pack aligns with typical pull quantities for a single rack or enclosure. The 250-unit carton makes sense for larger structured cabling projects or maintaining stocked inventory on the bench.
Integration & Compatibility
The ABM3H-AV-L0 is designed for use with cable ties spanning miniature, intermediate, standard, and light-heavy cross-sections — covering Panduit's own Pan-Ty tie families. The VHB adhesive base is engineered for smooth, clean surfaces: painted steel, powder-coated panels, ABS plastic enclosures, and similar hard substrates. Porous, textured, or contaminated surfaces will reduce adhesion; surface prep (clean, dry, temp above 60°F / 15°C at time of application) is essential for a lasting bond. For applications requiring mechanical fastening rather than adhesive, Panduit offers screw-mount variants in the same mount family — evaluate based on surface type and vibration exposure. The mount's tie slot accepts the range of cross-section sizes noted, making it a practical pairing alongside rack and enclosure cable management runs where multiple tie sizes appear in the same job.
What's in the Box
- 50× Panduit ABM3H-AV-L0 cable tie mounts with VHB adhesive backing
Frequently Asked Questions
Q: What tie sizes does the ABM3H-AV-L0 accept?
A: The ABM3H-AV-L0 is rated for use with miniature, intermediate, standard, and light-heavy cross-section cable ties. This covers the majority of Panduit's Pan-Ty series and most common commercial tie cross-sections.
Q: What surface types work best with the VHB adhesive on the ABM3H-AV-L0?
A: The VHB adhesive is designed for smooth, clean, hard surfaces — painted steel, powder-coated enclosures, ABS plastic, and similar substrates. Porous, oily, or rough-textured surfaces will reduce bond strength. Clean the surface and apply at temperatures above approximately 60°F (15°C) for best adhesion.
Q: Is the ABM3H-AV-L0 RoHS compliant?
A: Yes. The ABM3H-AV-L0 is RoHS compliant, making it suitable for projects requiring compliance with EU restricted hazardous substance regulations.
Q: What certifications does the ABM3H-AV-L0 carry?
A: The ABM3H-AV-L0 meets cULus 62275 Type 1 and Type 11 under UL file E136577, and is RoHS compliant. The 62275 listing covers cable management systems used in electrical installations and provides a verifiable reference for inspection and specification purposes.
Q: How many mounts are in a pack, and what is the carton quantity?
A: Each package contains 50 mounts. The full carton quantity is 250 units (5 packs per carton).
Q: What are the dimensions of the ABM3H-AV-L0 mount base?
A: The mount base measures 1.5 in. × 1.5 in. (38.1 mm × 38.1 mm) with an overall height of 0.23 in. (5.8 mm), providing a low-profile, large-contact-area footprint.
The ABM3H-AV-L0 gets specified when a drilled or screwed mount simply isn't practical — finished surfaces, pre-wired enclosures, or any situation where you're managing cables after the fact and can't put a fastener through the substrate. The 1.5 × 1.5 in. VHB adhesive base is what earns it a spot on the BOM: that footprint spreads the load enough that it doesn't peel off a painted panel after a few months of bundle tension, which is the failure mode you see with smaller-base adhesive mounts.
Technical Highlights:
- cULus 62275 Type 1 & 11 (E136577): Inspectable certification reference for electrical installations — gives your AHJ something to verify rather than a generic UL mark. Type 11 specifically covers bundling applications, which is exactly what this mount is doing.
- Nylon 6.6 at 0.23 in. Profile: At 5.8 mm tall, the low-profile head keeps bundles tight to the surface, reducing the lever arm that works against the adhesive joint under cable weight or movement. Nylon 6.6 holds shape better than nylon 6 in warmer equipment rooms.
- Miniature Through Light-Heavy Tie Compatibility: A single mount SKU spans the full practical range of Panduit's tie cross-sections, so a structured cabling project with mixed cable gauges doesn't require stocking multiple mount part numbers.
Deployment Considerations:
- Surface prep is non-negotiable with VHB: clean, dry, and above 60°F (15°C) at time of application. On cold loading docks or unheated data closets in winter, warm the surface before pressing the mount — the adhesive won't cure properly below threshold temperature.
- The VHB bond is essentially permanent — once pressed and cured, removal typically damages the surface or the mount. Plan routing before committing, especially inside finished enclosures or on painted panels you can't repaint.
Best fit for structured cabling installations in finished interiors, retrofit equipment rooms, or any enclosure environment where post-install cable dress-out needs a clean, drill-free anchor point. The 50-unit pack quantity aligns well with a single rack or cable tray run — stock a carton of 250 if you're working through a multi-rack deployment.
