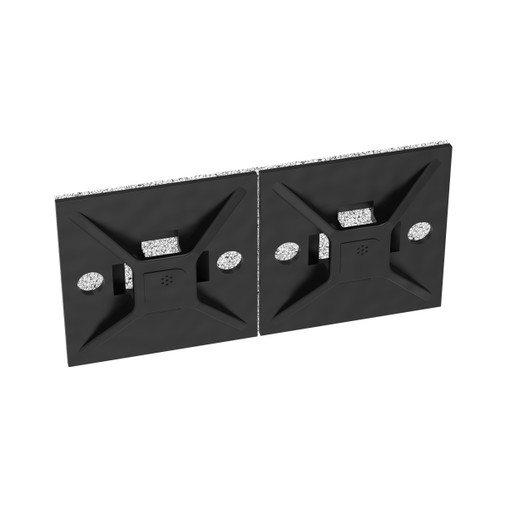

Panduit ABM112-AV-C0 VHB Adhesive Cable Tie Mount, 1.12 in. x 1.12 in., 100-Pack
Overview
The Panduit ABM112-AV-C0 is a 1.12-inch square, VHB (very high bond) adhesive-backed cable tie mount engineered for securing cable bundles to flat surfaces without drilling, fasteners, or surface penetration. Built from Nylon 6.6 in black, it handles miniature, intermediate, and standard cross-section cable ties — making it a versatile anchor point across most common tie sizes. If you're routing low-voltage wiring, security cabling, or data runs in finished spaces where you can't put holes in walls or ceilings, the ABM112-AV-C0 delivers a clean, code-compliant solution that won't require a drill or a return trip to patch drywall.
Each pack ships with 100 mounts (carton quantity: 500), so stocking a project or filling a van is straightforward. The mount body is kept compact at just 0.2 in. (4.9 mm) tall, keeping wire runs close to the surface and out of the way.
Key Features
- VHB Adhesive Backing: The very high bond adhesive base bonds directly to clean, flat surfaces — drywall, metal enclosures, conduit backboards — eliminating the need for fastener hardware. This matters on finished drop ceilings, cable trays, and anywhere penetrating the surface is not an option or creates re-work.
- 1.12 in. x 1.12 in. Footprint (28.6 mm wide): The wide, square base distributes pull-out force across more adhesive surface area than smaller round mounts. On surfaces with moderate texture, a larger base area means better long-term retention, especially when managing heavier or tightly bundled cable runs.
- Nylon 6.6 Construction: Nylon 6.6 offers higher tensile strength and better thermal stability than standard Nylon 6 — relevant in equipment rooms, above suspended ceilings, or anywhere ambient temperature or UV exposure causes cheaper plastics to embrittle and fail. The black pigmentation also helps it disappear in darker cable management environments.
- Compatibility with Miniature, Intermediate, and Standard Cross-Section Ties: The ABM112-AV-C0 accepts the full range of common tie cross-sections, so you aren't locked into a single tie size. Mix bundle diameters across the same install without swapping mount types.
- cULus Listed (E136577) — cULus 62275 Type 1 and Type 11: UL listing under the 62275 cable management standard means this mount has been independently tested and is acceptable for use in UL-compliant installations. For commercial builds where the AHJ or GC requires listed components, this clears that hurdle without a product substitution conversation.
- RoHS Compliant: Materials comply with the Restriction of Hazardous Substances directive — relevant for any project with environmental or export requirements, and standard expectation for enterprise and government deployments.
- Low Profile at 0.2 in. (4.9 mm) Height: The minimal stack height keeps cable bundles flush to the surface, which matters in tight conduit spaces, inside enclosures, or in finished areas where protruding hardware looks unprofessional and can snag cabling during future pulls.
- 100-Pack Packaging (Carton Qty 500): Buying in 100-unit packs makes it practical to stock by job size or kit a truck without over-committing. Full cartons of 500 make sense for larger integrators running multiple concurrent low-voltage installs.
Integration & Compatibility
The ABM112-AV-C0 (often searched as ABM112 AV C0) is designed for use with Panduit's miniature, intermediate, and standard cross-section cable ties — covering the most common tie sizes used in structured cabling and low-voltage security installations. If you're using Panduit ties elsewhere on a project, these mounts integrate cleanly into the same material standard.
For surface prep: VHB adhesive requires a clean, dry, and reasonably smooth substrate for full rated bond strength. Porous, oily, or textured surfaces (rough concrete, painted cinderblock) will reduce adhesion — plan for mechanical fasteners or a surface primer in those cases.
These mounts are a natural companion to structured cable management runs, particularly inside telecom rooms, above drop ceilings, and along metal cable trays where drilling anchor points into the tray flange is impractical. See the full Panduit wire management line for compatible ties, straps, and conduit fittings.
What's in the Box
- 100x Panduit ABM112-AV-C0 VHB Adhesive Cable Tie Mounts
Frequently Asked Questions
Q: What cable tie cross-sections are compatible with the ABM112-AV-C0?
A: The ABM112-AV-C0 is rated for use with miniature, intermediate, and standard cross-section cable ties. It does not specify compatibility with heavy-duty or extra-wide ties — use a larger mount for those bundle sizes.
Q: Is the ABM112-AV-C0 UL listed?
A: Yes. It meets cULus 62275 Type 1 and Type 11 under UL File E136577, making it acceptable for use in cULus-compliant cable management installations.
Q: Is the ABM112-AV-C0 RoHS compliant?
A: Yes, the ABM112-AV-C0 carries RoHS compliance, so it meets restricted hazardous substances requirements for commercial and enterprise installations.
Q: How many mounts come in a package, and what is the carton quantity?
A: Each standard package contains 100 mounts. Full cartons contain 500 mounts (5 packages per carton).
Q: What are the dimensions of the ABM112-AV-C0 mount?
A: The mount measures 1.12 in. wide (28.6 mm), 1.13 in. long, and 0.2 in. (4.9 mm) tall — a low-profile, square base designed to keep cable bundles close to the mounting surface.
Q: What surfaces does the VHB adhesive bond to?
A: VHB adhesive performs best on clean, smooth, and dry surfaces such as painted metal, smooth drywall, and plastic enclosure panels. Rough, porous, or contaminated surfaces will reduce bond strength — prepare the surface before mounting for reliable long-term retention.
The ABM112-AV-C0 is the mount I reach for when the job requires a clean cable run and the surface can't be drilled — the 1.12-inch square VHB base gives you enough adhesive footprint to hold real cable weight without the mount walking or peeling over time, which is the failure mode you see with smaller round adhesive mounts loaded with a dense bundle.
Technical Highlights:
- Nylon 6.6 vs. Nylon 6: The material upgrade matters in equipment rooms and above ceilings where operating temps vary — Nylon 6.6 holds structural integrity better under thermal cycling than commodity Nylon 6, so these won't become brittle and snap when you come back to re-route a cable two years later.
- cULus 62275 Type 1 & 11 (E136577): Both Type 1 (general purpose) and Type 11 (plenum/environmental) listings are covered under a single UL file, which means you can spec the ABM112-AV-C0 without a separate plenum-rated SKU conversation on above-ceiling installs — one SKU, two covered use cases.
- 0.2 in. (4.9 mm) Profile: At under a quarter inch tall, these mounts keep bundles essentially flush. In a crowded enclosure backboard or inside a J-channel raceway, that low stack height means you're not fighting clearance issues every time you route a new run over an existing one.
Deployment Considerations:
- Surface prep is the variable that makes or breaks VHB adhesive performance — wipe down with isopropyl alcohol before bonding, especially on painted metal backboards where oils and dust accumulate. Budget 60 seconds per mount during layout and you'll avoid re-dos.
- The mount accepts miniature through standard cross-section ties, but does not call out heavy-duty or wide-body ties. If your bundle diameters are pushing into that range, step up to a larger Panduit adhesive mount rather than loading this one past its intended tie compatibility range.
For AV and low-voltage security installs — camera runs, access control wiring, alarm loops — where the finished ceiling or wall is already painted and the GC won't allow penetrations, the ABM112-AV-C0 is the right tool. It passes UL inspection, keeps runs tidy, and comes in quantities that make it practical to stock across a multi-site rollout without special ordering.
