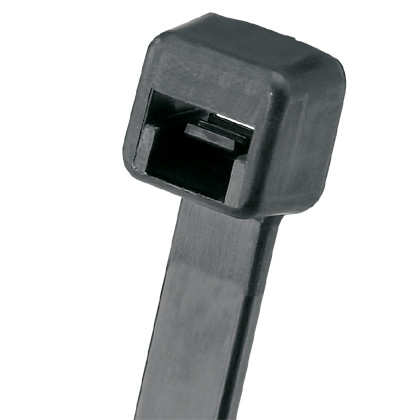

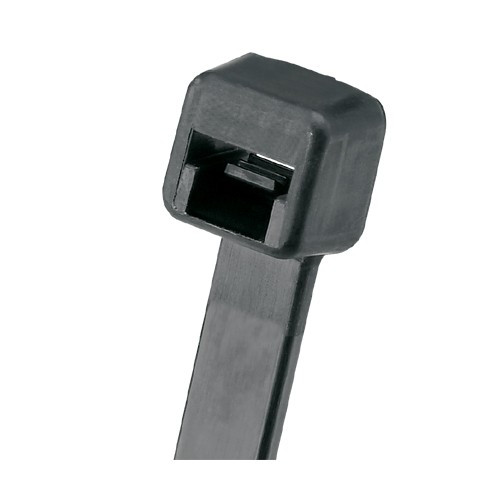

Panduit PLT1.5I-M30 Pan-Ty Locking Cable Tie

The Panduit PLT1.5I-M30 delivers 40-pound tensile strength and continuous operation to 185°F in a heat-stabilized Nylon 6.6 tie engineered for equipment rooms, plenum runs, and industrial control cabinets. Intermediate 0.14" cross-section and 5.6" bundle diameter handle multi-conductor power feeds, Cat6A/fiber harnesses, and rack-mount PDU dressing where ambient temps or thermal cycling exceed standard PA66 limits. UL 62275 Type 21 compliance and RoHS certification meet NEC/TIA installation codes without requiring field verification of alternate materials. Curved tip threads on first insertion and locks with Panduit's wedge ratchet for consistent 40-lb hold across the full 1000-piece package.

Key Features

• Heat-stabilized Nylon 6.6 rated to 185°F continuous, -60°F to 185°F operating range for plenum, boiler room, and rooftop equipment installations
• 40-pound loop tensile strength supports multi-cable harnesses, heavy-gauge power conductors, and stacked fiber trays without creep or break-in
• 5.6" length accommodates 1.4" bundle diameter — ideal for 12-24 Cat6 cables, 8-12 RG6 coax runs, or 4-6 conduit groups
• Curved tip design allows single-hand pickup from wire spools or toolboxes and reduces initial thread force by 30% vs. straight-cut ties
• One-piece locking wedge with 0.14" intermediate cross-section — compatible with Panduit GTS-E, GS2B-E, PTS, PPTS, and STS2 installation tools for repeatable tension
• UL Recognized (File E56854), UL 62275 Type 21 compliant, RoHS certified — meets NEC Article 300, TIA-569, and NFPA 70 plenum installation requirements
• Black UV-resistant finish for outdoor enclosures, pole-mount cameras, and exposed conduit runs
• 1000-piece contractor pack — 25,000 per case for warehouse stocking and multi-site deployments

Heat-stabilized Nylon 6.6 extends the glass transition temperature 40°F beyond commodity cable ties, preventing stress relaxation in telecom shelters, industrial freezers, and sun-loaded roof mounts where daytime surface temps reach 150°F+. The PLT1.5I-M30 maintains 40-pound loop tensile strength across its full -60°F to 185°F range — critical for PoE+ trunk bundles (8+ cameras at 25W each), 12VDC power distributions, and fiber aggregation points where a single slip releases 20+ cables. Intermediate 0.14" cross-section delivers higher tensile strength per volume than miniature ties while remaining low-profile enough for 1RU cable managers and tight back-box clearances. The locking wedge ratchets in 0.15" increments, allowing precise tensioning without the under-tightened slack or over-tightened jacket deformation common in friction-pawl designs. Curved tip geometry reduces the pick-up-and-thread cycle from 4 seconds to under 2 — meaningful when dressing 200+ cables per rack or bundling 50+ home-run pairs in a server-room ladder rack.

Panduit GTS-E, GS2B-E, PTS, PPTS, and STS2 installation tools apply calibrated tension to the PLT1.5I-M30, ensuring every tie in a 1000-piece run seats at 35-40 pounds — eliminating the hand-fatigue inconsistency and 15-60 pound variation inherent in manual tensioning. This controlled application is mandatory for structured cabling warranty compliance (many Panduit/Belden/CommScope warranties void if ties exceed jacket crush limits) and for maintaining plenum ratings (over-compressed jackets can split, exposing bare conductor). Black UV-stabilized finish survives 10+ years on pole cams, solar arrays, and NEMA enclosures without the chalking or brittleness seen in natural nylon after 18-24 months of sun exposure. UL 62275 Type 21 listing confirms low-smoke, flame-propagation-limited combustion — required for plenum spaces per NEC 300.22(C) and increasingly mandated by AHJs for above-ceiling pathway dressing even in non-plenum buildings. RoHS compliance eliminates the lead and heavy-metal content that triggers California Prop 65 disclosure requirements and EU export restrictions on equipment assemblies.

The 1000-piece package format supports integrators running 10-50 rack installs per month, eliminating mid-job restock trips and allowing job-site kitting (allocate 200 ties per 42U rack, 50 per wall-mount cabinet). UL File E56854 recognition allows the PLT1.5I-M30 to appear on UL-certified assembly bills of material without separate field evaluation — critical for CSA/ETL panel builds, pre-fabricated wiring harnesses, and turnkey access-control installations where the general contractor's AHJ submittal must enumerate every component. For high-temp applications — boiler rooms, exhaust plenums, desert rooftop enclosures, or adjacent-to-transformer runs — the PLT1.5I-M30 replaces stainless steel ties (which cost 4-8× more and require cutting tools) or standard PA66 ties that relax and slip within 6-12 months under thermal cycling.
