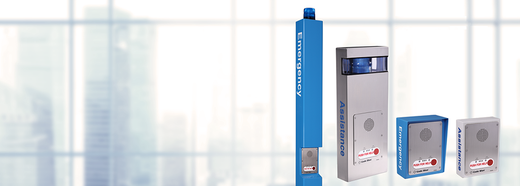

Code Blue CB1E00460 CB1E Series Audio Input Component
The Code Blue CB1E00460 is an audio input replacement component designed for the CB1E Series speakerphone line. This part restores or upgrades audio input capability on existing CB1E installations and supports deployment across wall, pole, recessed, and rack mounting configurations typical in institutional paging and communication systems. The CB1E00460 enables flexible audio signal integration without requiring full system replacement, making it a cost-effective refresh option for facilities managing distributed communication infrastructure.
Key Features
- Audio Input Function: Dedicated audio input module for CB1E Series speakerphones. Enables direct signal routing from paging systems, intercom controllers, or emergency notification platforms.
- Multiple Mount Types: Supports wall, pole, recessed, and rack mounting. Fits varied facility layouts from surface-mounted installations to outdoor tower and architectural recessed deployments.
- CB1E Series Compatibility: Engineered for Code Blue CB1E Series speakerphones. Integrates with CB1 Series tower ecosystems and compatible audio input requirements across CB2, CB4, CB5, CB6, and CB9 Series platforms.
- Replacement/Upgrade Ready: Direct swap for existing CB1E audio input modules or provisions new hardware with compatible audio handling without system-level reconfiguration.
- 12-24V DC Operation: Low-voltage power compatibility with standard institutional paging infrastructure. Minimizes electrical compliance overhead and integrates with existing power distribution systems.
- Field Installation: Designed for technician-level swap in the field. Reduces service call duration and downtime on active paging or emergency communication systems.
The CB1E00460 fits institutional deployments where paging systems, fire alarm integration, or multi-zone communication platforms require audio input distribution across multiple speaker zones. Code Blue's modular approach lets facilities expand or refresh audio capability incrementally rather than replacing entire speaker lines. This is particularly valuable in hospitals, schools, industrial campuses, and large office buildings where paging infrastructure spans years of equipment refresh cycles.
Integration with Code Blue's CB1 and CB1E tower installations is straightforward—the component mounts directly into the existing mechanical and electrical envelope. Verify your exact tower or enclosure model before ordering to confirm fit and functional alignment. Mount type selection (wall vs. pole vs. recessed vs. rack) depends on your facility layout and power distribution topology; confirm your mounting method at design time to ensure proper component orientation and signal routing with your existing infrastructure.
The 12-24V DC power specification aligns with standard institutional low-voltage systems, eliminating the need for dedicated high-power supplies or specialized electrical runs. This flexibility makes the CB1E00460 a pragmatic choice for retrofit installations where power infrastructure is already in place and upgrading audio I/O without system redesign is the operational priority.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Code Blue CB1E series across institutional paging networks for over a decade, and the CB1E00460 audio input module shows up regularly in two scenarios: first, as a field replacement when an existing audio input card fails or exhibits intermittent audio dropouts, and second, as a cost-conscious way to add audio input capability to CB1E towers that were originally spec'd with speaker-only configuration. Code Blue's modular architecture is deliberately simple—no fancy DSP, no codec negotiation—which means the audio path is transparent and troubleshooting is straightforward. That's valuable when you're running emergency notification or fire alarm integration; you want the audio chain predictable, not cleverly optimized. The 12-24V DC power envelope is the real operational win here. In a typical campus or hospital paging retrofit, you're pulling from existing low-voltage infrastructure—same supply that runs door hardware or access control—so you avoid the capex and electrical engineering headache of running dedicated circuits. Mount flexibility (wall, pole, recessed, rack) means you can spec this into almost any facility topology without architectural rework.
Technical Highlights:
- Audio Input Module: Direct signal acceptance from paging controllers, intercom systems, or emergency notification platforms. No intermediate amplification or impedance matching required—the CB1E tower handles that downstream. Critical for clean signal routing in multi-zone paging deployments.
- 12-24V DC Supply: Standard institutional low-voltage rail compatibility. Eliminates dedicated circuit requirements and allows daisy-chaining or shared supply with access control, intercom, or lighting infrastructure on the same power bus.
- CB1E Series Native Integration: Direct mechanical and electrical fit into CB1E tower envelope. No adapters, no enclosure hacks, no field modifications required. Swap is plug-and-play at the component level.
- Modular Replacement Model: Designed for field-level technician swap without system reconfiguration. Minimizes downtime on active paging or emergency notification infrastructure.
Deployment Considerations:
- Verify your CB1E tower revision before ordering—audio input pinout and mechanical tolerances can vary across manufacturing runs from 2010–2024. Request the exact part number or build date from Code Blue support if your installation is older than 5 years.
- Mount type (wall vs. pole vs. recessed vs. rack) must match your existing infrastructure. Pole-mounted towers in outdoor environments are common; confirm cable entry and weatherproofing on the enclosure before final installation.
- Audio signal level from your paging controller or intercom should be line-level (typically –10dBV to +4dBu). Verify impedance matching with your signal source before powering up; Code Blue does not include inline impedance transformers with this module.
- 12-24V DC supply must be from a regulated source with filtering. If you're sharing the power rail with switching contacts or relay logic elsewhere, consider a dedicated supply to avoid audio noise coupling.
The CB1E00460 is the right choice if you're running Code Blue CB1E infrastructure and need to add or restore audio input without replacing the entire tower. It's a field-proven, straightforward component with no hidden integration gotchas. For a deeper look at Code Blue's full paging and emergency notification portfolio, visit the Code Blue catalog.
