Code Blue Z13083-44 Emergency Help Point Tower
Overview

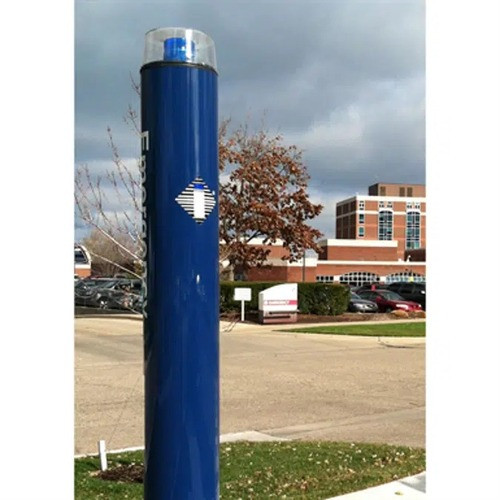

The Code Blue Z13083-44 is a 108-inch tall emergency communication tower built from 0.135" (10-gauge) steel—the right choice for outdoor campus, parking, and facility security deployments where you need a ruggedized standalone endpoint that can take weather and foot traffic. At 160 lbs, it's heavy enough to resist tipping in wind-prone zones while remaining deployable without specialized rigging. The unit is designed to ADA specifications and meets UL 62368-1 safety and NEMA 3S enclosure standards, meaning it handles rain, ice, and dust without component failure.
Compatibility
The Z13083-44 integrates with Code Blue's LS1000 VoIP speakerphone and LS2000 VoIP handset systems, as well as the IA4100 analog speakerphone. Power input accepts 12–24V AC/DC, making it compatible with standard facility power circuits or emergency backup supplies. The full-duplex analog interface (IA4100) supports legacy PBX and hybrid VoIP infrastructures where mixed analog and IP endpoints coexist.
Installation Notes
The tower's 12.75-inch diameter footprint requires a standard floor-mount base (not included with unit). NEMA 3S construction means it's sealed against dust and rain but not submersion—position away from low-lying water accumulation or areas prone to flooding. LED faceplate lighting and beacon/strobe are factory-wired; verify 12–24V supply voltage matches your facility distribution before energizing. The 108-inch height clears most obstruction for audio distribution in outdoor plazas and parking structures.
