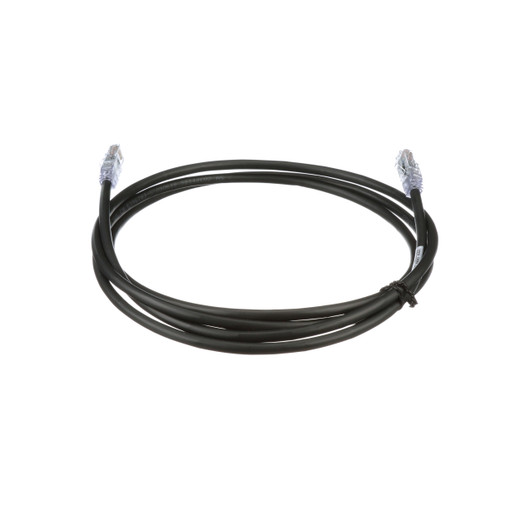

Panduit UTP6AX8MBL Patch Cord

Overview

The Panduit UTP6AX8MBL is an 8-meter (26.2 ft) Category 6A unshielded twisted pair (U/UTP) patch cord. Constructed with 24 AWG solid conductors and a CM flammability rating, this black cord is engineered to support 10 Gb/s Ethernet transmission by limiting alien crosstalk via its solid foil tape construction. The tangle-free latch on the RJ45 modular plugs simplifies installation and removal, streamlining network infrastructure management in data centers and enterprise environments. This cable is equipped with pre-installed barcodes for use with Panduit's RapidID system, simplifying port mapping and asset tracking.

Compatibility

This Category 6A patch cord is designed to exceed ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards, ensuring compatibility with standard RJ45 interfaces found on most network switches, routers, servers, and endpoint devices. It is rated for 2500 cycles with IEEE 802.3af, 802.3at, and 802.3bt (Type 3 and Type 4) Power over Ethernet (PoE) standards, making it suitable for connecting high-power PoE devices without signal degradation. The solid conductor construction is best suited for fixed installations or infrequent moves, rather than frequent patching in high-density environments where stranded cable is preferred.

Installation Notes

The solid 24 AWG conductors provide a stable connection for high-speed data but are less flexible than stranded conductors, requiring care during installation to avoid kinking or stressing the cable. The integrated tangle-free latch on the RJ45 connectors ensures secure connection and easy release, preventing accidental disconnections and simplifying moves, adds, and changes. The CM rating indicates suitability for use in building riser applications.
