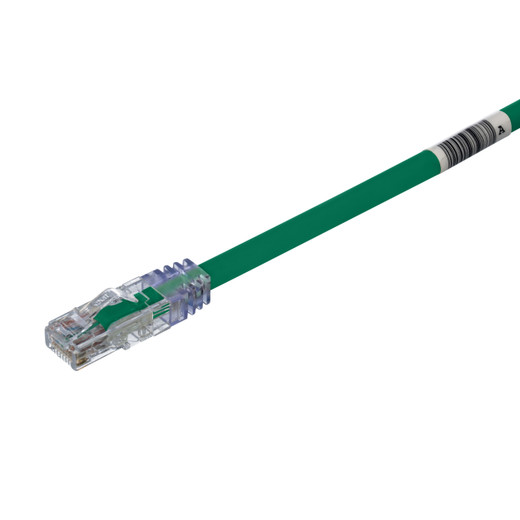

Panduit UTP6AX2GR Cat 6A 2ft Patch Cord Green

Panduit UTP6AX2GR Cat 6A 10Gig Patch Cord

The Panduit UTP6AX2GR delivers 10GBASE-T performance in a 2-foot Cat 6A patch cord engineered for data center server connections, top-of-rack switch deployments, and high-density cabinet builds. Built on 24 AWG solid copper conductors with U/UTP construction, this patch cord meets the permanent-link component requirements of ANSI/TIA-568.2-D while maintaining a slim 6.4mm diameter for efficient cable management. The tangle-free modular plug latch and pre-installed RapidID barcodes address two of the most time-consuming pain points in structured cabling—snag-free deployment and rapid documentation—making this a practical choice for integrators managing large-scale rollouts or frequent MAC (moves, adds, changes) work.

Key Features

• 10GBASE-T Certified: Exceeds ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards across the full 1-500 MHz spectrum, ensuring headroom for 10 Gb/s Ethernet with alien crosstalk margin
• Solid 24 AWG Conductors: Solid copper construction provides superior performance consistency and permanent-link compliance for short-run applications where stranded cable flexibility is unnecessary
• Tangle-Free Latch Design: Low-profile snag-resistant latch prevents cable bundle entanglement during pulls and simplifies extraction in congested patch panels
• RapidID Pre-Installed Barcodes: Factory-applied unique identifiers enable rapid port mapping and cable tracing using Panduit's RapidID software, eliminating manual labeling and documentation errors
• Full PoE++ Support: Supports IEEE 802.3af (15.4W), 802.3at (30W), and 802.3bt Type 3 (60W) and Type 4 (100W) Power over Ethernet, suitable for high-power devices like PTZ cameras, Wi-Fi 6E access points, and IP phones
• Slim 6.4mm Diameter: Reduced cable diameter improves airflow in high-density environments and eases routing through cable managers and overhead ladder rack
• CM-Rated Jacket: UL 1863 and CSA C22.2 listed CM (communications) flammability rating for general building use; verify local code requirements for plenum or riser applications
• Universal Wiring Compatibility: Wired to be compatible with both T568A and T568B termination schemes, ensuring interoperability across mixed-standard installations

Solid Conductor Design for Short-Run Performance: The UTP6AX2GR uses 24 AWG solid copper conductors rather than stranded wire. While stranded cable offers superior flex life for user cords and frequent-disconnect applications, solid conductors provide better high-frequency performance and lower DC resistance—critical for 10GBASE-T signaling at 500 MHz. In the 2-foot length, the reduced flexibility of solid cable is a non-issue, while the performance advantage ensures consistent 10 Gb/s throughput even under temperature variation and aging. The U/UTP (unshielded twisted pair) construction relies on tight pair geometry and balanced transmission to reject electromagnetic interference, making this cable suitable for most commercial environments where screened or shielded cable is not mandated. Each pair is precision-twisted to maintain the 100-ohm characteristic impedance required by TIA-568.2-D, and the overall jacket provides abrasion resistance without adding bulk. The modular plugs are factory-terminated with gold-plated contacts and include load bars to maintain pair separation and ensure reliable 50-microinch contact during mating cycles.

Tangle-Free Latch and RapidID Integration: Panduit's tangle-free latch design addresses a common field issue: patch cords snagging on adjacent cables during installation or removal, leading to accidental disconnects or damaged latches. The low-profile latch sits closer to the plug body and features a rounded profile that slides past neighboring cables rather than hooking them. This design reduces the force required to extract a cable from a congested 48-port patch panel and minimizes the risk of breaking the latch tab—a failure mode that renders the cable unreliable and difficult to remove without tools. The RapidID barcode system takes cable documentation to the next level: each cord ships with a factory-applied barcode label that encodes a unique identifier. Using Panduit's RapidID software and a handheld barcode scanner, technicians can scan the patch cord at both ends during installation, automatically populating a cable management database with port-to-port mappings, cable length, and installation date. This eliminates the manual spreadsheet or label-maker workflow, reduces documentation errors, and accelerates troubleshooting—when a link goes down, you can instantly identify the cable run and its endpoints without tracing cables through a bundle.

Deployment Context—Data Center and Enterprise Networks: The 2-foot length of the UTP6AX2GR is optimized for short-hop connections in data center environments: server NIC to top-of-rack (ToR) switch, ToR switch to aggregation switch in adjacent racks, or patch panel to active equipment within the same cabinet. In hyperconverged infrastructure deployments, where each server may have four or more 10GbE uplinks, using the correct patch cord length is critical—over-length cables create cable management challenges and impede airflow, while under-length cables create strain on connectors. The 2-foot length strikes the balance for typical 42U racks with equipment spacing of 2-6U. The Cat 6A performance headroom is essential for 10GBASE-T, which operates at the edge of Category 6's performance envelope; Cat 6A provides additional margin against alien crosstalk (interference between adjacent cables) and insertion loss, ensuring link stability even in high-density 48-port switch environments where dozens of cables run in parallel bundles. The green jacket color aids in color-coded network segmentation—common schemes include green for production networks, blue for management, yellow for storage, and red for out-of-band or emergency links. The CM flammability rating is suitable for general office and data center spaces; if you are routing cable through plenum air-handling spaces, you will need a CMP-rated version (consult Panduit's TX6A plenum patch cord line).

PoE++ Capability for Converged Networks: The UTP6AX2GR's conductor gauge and pair balance make it fully compatible with IEEE 802.3bt Type 4 PoE, delivering up to 100 watts to powered devices. This matters in security and building-automation contexts: a modern 4K PTZ camera with IR illumination, heater, and wiper may draw 60-90W, requiring 802.3bt; a Wi-Fi 6E access point with 8×8 MIMO can draw 40W+; and industrial PoE-powered switches or media converters can exceed 30W. Using a non-compliant patch cord (excessive resistance, poor pair balance, or inadequate jacket insulation) in high-power PoE applications can lead to voltage drop, overheating, or PD (powered device) instability. Panduit's TX6A patch cords are tested to carry the full DC current load of 802.3bt Type 4 (960 mA per pair, 1.92A total) without exceeding temperature rise limits. The solid 24 AWG conductors have lower DC resistance than 26 AWG or 28 AWG stranded equivalents, reducing I²R losses and keeping the cable cooler. For multi-camera installations where every drop is PoE-fed, this thermal margin translates to longer cable life and fewer service calls related to intermittent power.

Standards Compliance and System Integration: The UTP6AX2GR exceeds ANSI/TIA-568.2-D Category 6A component specifications for insertion loss, return loss, near-end crosstalk (NEXT), power sum NEXT (PS-NEXT), alien crosstalk (ANEXT), and power sum alien NEXT (PS-ANEXT) across the 1-500 MHz range. It also meets ISO/IEC 11801 Class EA requirements, ensuring global standards compatibility for multinational deployments. The patch cord is UL listed under UL 1863 (communications cable) and CSA certified, with RoHS compliance for lead-free and restricted-substance regulations. As part of Panduit's TX6A 10Gig copper system, the UTP6AX2GR is designed to interoperate with Panduit's Mini-Com TX6A PLUS jacks, angled and flat patch panels, and shielded or unshielded bulk cable, providing a complete warranted channel when installed per TIA-568 guidelines. The tangle-free latch and RapidID features are exclusive to Panduit's TX6A patch cord line and are not available as aftermarket accessories, making this cord a key enabler for integrators who prioritize operational efficiency and long-term cable plant documentation.
