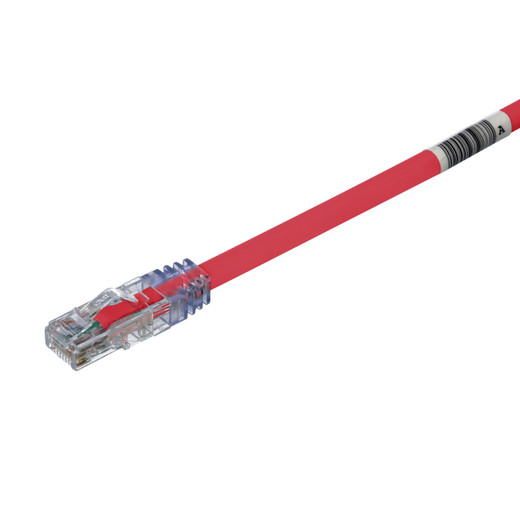

Panduit UTP6AX2.5MRD Cat 6A 2.5m Red Patch Cord

Panduit UTP6AX2.5MRD Cat 6A UTP Patch Cord

The Panduit UTP6AX2.5MRD is a TX6A™ 10Gig Cat 6A unshielded twisted pair patch cord engineered for 10GBase-T Ethernet deployments in data centers, high-density wiring closets, and converged network environments requiring full PoE++ power delivery. Built with 24 AWG solid conductors in a 0.250" (6.4 mm) diameter U/UTP construction, this 2.5-meter red patch cord delivers certified 10 Gb/s performance across all 500 MHz of Category 6A bandwidth while maintaining alien crosstalk margins through solid foil tape shielding within each pair. Field techs gain pre-installed RapidID barcodes for automated asset tracking and a tangle-free modular plug latch that accelerates MAC cycles in live production racks.

Key Features

• 10GBase-T certified Cat 6A performance — exceeds ANSI/TIA-568.2-D and ISO 11801 Class EA standards across 1–500 MHz for full 10 Gb/s throughput
• 24 AWG solid copper conductors with U/UTP construction — solid foil tape per pair limits alien crosstalk in high-density bundle environments
• RapidID pre-installed barcodes — integrates with Panduit RapidID port-mapping software for zero-touch cable documentation and instant trace in multi-tier data center fabrics
• Tangle-free modular plug latch — low-profile snag-free design enables one-handed release in back-of-rack deployments without cable damage
• IEEE 802.3bt Type 3 and Type 4 PoE support — handles up to 100 W power delivery for Wi-Fi 6E access points, PTZ cameras, and high-power edge devices without voltage drop
• CM flammability rating — meets general-purpose plenum-alternative requirements for installation in cable trays, conduit, and non-plenum horizontal pathways
• T568A/T568B wiring compatibility — factory-terminated to work with either standard, eliminating field guesswork on mixed-standard installations
• Red jacket — high-visibility color coding for VLAN segregation, out-of-band management networks, or critical-infrastructure circuit identification

The UTP6AX2.5MRD uses Panduit's TX6A modular plug system with a field-proven termination geometry that maintains pair balance and return loss across the plug-to-jack interface. Solid foil tape applied to each individual twisted pair creates a localized shield that blocks alien crosstalk from adjacent cables in bundle installations — critical when running 40+ patch cords in a single cable manager. The 24 AWG solid conductor construction provides lower DC loop resistance than stranded equivalents, ensuring full IEEE 802.3bt Type 4 power delivery (100 W) over the 2.5-meter span without exceeding the 12.5 W channel insertion loss budget. This makes the cord suitable for powering Cisco Catalyst 9130 APs, Axis Q6135-LE PTZ cameras, and other high-draw PoE devices at the edge without requiring midspan injectors. The cord exceeds Category 6A insertion loss and return loss margins by 3 dB or more at 500 MHz, providing headroom for connector wear over multi-year service life in production environments.

Field deployment benefits from Panduit's RapidID barcode system — each cord ships with machine-readable labels pre-applied to both plug boots, carrying a unique serial number tied to length, color, and category in the RapidID database. Installers scan cords during termination to auto-populate port maps, eliminating manual spreadsheet entry and reducing trace time during troubleshooting from minutes to seconds. The tangle-free latch uses a molded strain relief that sits flush with the plug body, preventing snags when pulling cords through vertical cable managers or 1U horizontal finger ducts in 42U racks. Panduit rates the latch for 150+ insertion cycles without breakage — 3× the TIA minimum — making the cord suitable for labs, training environments, and frequently reconfigured TOP-of-rack switch fabrics. The 2.5-meter length (8.2 ft) is optimized for middle-of-rack server connections in standard 42U enclosures, spanning from a TOP-of-rack switch to servers 15–20U below without excess slack that causes airflow blockage or cable-management bulk.

This patch cord is designed for hyperconverged infrastructure deployments where 10GBase-T server NICs connect to 10 Gb/s access switches, eliminating the SFP+ transceiver cost and power draw of fiber or Twinax DAC links while maintaining sub-1 µs latency. The U/UTP construction supports deployment in environments with moderate EMI — typical office buildings, retail back-rooms, and IDF closets — without requiring the added cost and bend-radius restrictions of shielded F/UTP alternatives. For installations subject to NEC Article 800 fire code, the CM rating allows use in general-purpose horizontal pathways, cable trays, and riser shafts not requiring CMP plenum rating, reducing material cost on budget-constrained projects while maintaining UL 1863 and CSA C22.2 safety compliance.
