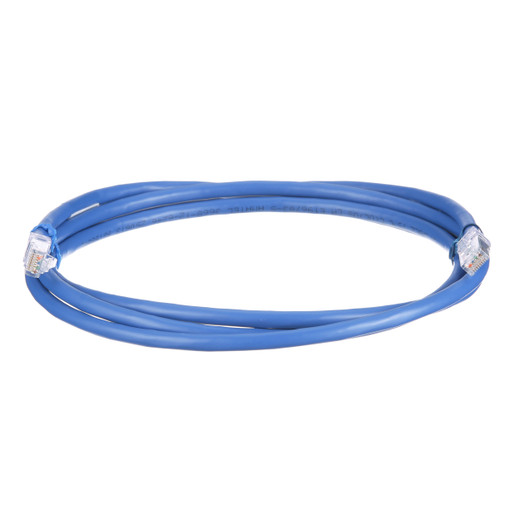

Panduit UTP6AX13MBU Cat 6A 13m Patch Cord

Panduit UTP6AX13MBU Cat 6A UTP Patch Cord

The Panduit TX6A 10Gig UTP6AX13MBU delivers enterprise-grade 10GBASE-T performance in a 13-meter unshielded patch cord designed for extended horizontal runs and high-density datacenter environments. Built with 24 AWG solid conductors and internal foil tape shielding, this Cat 6A cable maintains 10 Gb/s transmission rates while controlling alien crosstalk in bundled installations. The 0.250-inch (6.4mm) slim profile, tangle-free latch design, and integrated RapidID barcode system streamline deployment and documentation in enterprise networks, IDF/MDF closets, and PoE++-powered IP security infrastructures.

Key Features

• 10 Gb/s transmission over 13 meters (42.7 feet) with Cat 6A performance exceeding ANSI/TIA-568.2-D and ISO 11801 Class EA
• 24 AWG solid conductors with internal foil tape shielding to limit alien crosstalk in high-density cable bundles
• PoE++ capable: supports IEEE 802.3af/at and 802.3bt type 3 (60W) and type 4 (90W) power delivery
• Tangle-free latch prevents snags during installation and ensures fast, reliable release for moves/adds/changes
• RapidID pre-installed barcodes enable automated port mapping and cable documentation via Panduit RapidID software
• 0.250-inch (6.4mm) diameter slim profile for improved airflow and easier pathway fill management
• CM flammability rating for general building installations; rated for 2500 mating cycles with PoE loads
• High-performance modular RJ45 plugs on both ends with gold-plated contacts for low insertion loss

The UTP6AX13MBU employs a U/UTP (unshielded twisted pair) construction with 24 AWG solid copper conductors and an internal solid foil tape barrier that isolates the twisted pairs from external electromagnetic interference and alien crosstalk. This design choice delivers 10GBASE-T performance without the added bulk, termination complexity, or grounding requirements of shielded F/UTP or S/FTP cables. The solid foil tape layer is critical in high-density environments where multiple Cat 6A cables run in parallel bundles—common in datacenter top-of-rack switch deployments, enterprise IDF closets, and backbone connections between floors. By maintaining the 500 MHz bandwidth and stringent alien NEXT/AFEXT limits required by ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA, the cable ensures full 10 Gb/s duplex operation over the entire 13-meter length, with headroom for environmental variables like temperature fluctuation and bundled installation derating. The 24 AWG gauge balances conductor diameter for reliable termination inside the modular plugs while keeping the overall cable diameter at 6.4mm—substantially slimmer than early-generation Cat 6A cables, which often exceeded 8mm and created pathway congestion in high-density racks.

At 13 meters (42.7 feet), the UTP6AX13MBU is purpose-built for installations that exceed the 3-5 meter range of typical desktop patch cords but don't require full 100-meter permanent link distances. This length is ideal for cross-aisle datacenter connections (connecting switches in adjacent racks), longer horizontal runs in open-plan offices (where desks are distributed across a floor), and IDF-to-satellite closet links in multi-floor commercial buildings. The cable's PoE++ capability—validated for IEEE 802.3bt type 3 (60W) and type 4 (90W)—makes it a backbone component for high-power IP security installations, including PTZ cameras with heaters, multi-sensor panoramic cameras, and PoE-powered access control panels distributed across parking structures or perimeter fences. The 24 AWG solid conductors minimize DC loop resistance compared to stranded-conductor patch cords, reducing power loss over the 13-meter run and ensuring stable voltage delivery to endpoint devices. The integrated RapidID barcode system addresses one of the most persistent challenges in enterprise network management: accurate cable documentation. Each cord ships with pre-printed barcodes that integrate with Panduit's RapidID software, allowing installers to scan both ends of the cable during deployment and auto-populate port mapping databases, eliminating manual spreadsheet tracking and reducing troubleshooting time during MAC (moves, adds, changes) operations.

The UTP6AX13MBU exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA requirements, meets ANSI/TIA-1096-A modular plug transmission performance standards, and is UL 1863 listed with a 2500 mating cycle rating under PoE loads—ensuring reliable mechanical performance in environments where cables are frequently disconnected and reconnected, such as hot-aisle/cold-aisle datacenter maintenance or field-replaceable IP camera installations. The CM (Communications) flammability rating qualifies the cable for general building use in horizontal pathways, while RoHS compliance ensures it meets European and global environmental standards for commercial deployment. For integrators managing high-density 10 Gb/s networks, PoE++-powered IP security infrastructures, or enterprise backbone links requiring extended patch cord lengths, the Panduit UTP6AX13MBU combines performance, durability, and documentation features that reduce both installation time and long-term operational overhead.
