Panduit UTP6AX12BL TX6A 10Gig Cat 6A Patch Cord, 12 ft

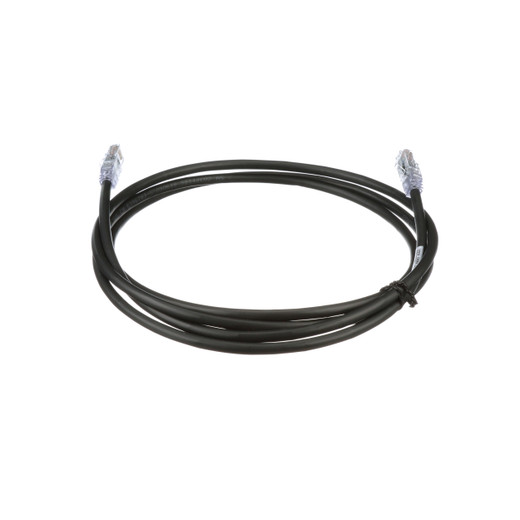

Panduit UTP6AX12BL TX6A 10Gig Cat 6A UTP Patch Cord, 12 ft, Black

The Panduit TX6A UTP6AX12BL delivers 10 Gb/s Ethernet over twisted pair in a 12-foot patch cord engineered for high-density datacenter and commercial network environments. Built on 24 AWG solid conductor U/UTP cable with internal foil tape shielding, this Cat 6A cord suppresses alien crosstalk between adjacent cables while maintaining the flexibility installers need for tight-radius cabinet routing. The tangle-free latch design eliminates snags during MAC operations, and factory-installed RapidID barcodes enable one-scan port mapping when paired with Panduit's cable-management software. Rated for 2500 mating cycles and full PoE++ power delivery (802.3bt type 4, up to 100W), this cord handles everything from 10GbE switch uplinks to high-power PTZ cameras and wireless access points on a single infrastructure pull.

Key Features

• 10 Gb/s performance — exceeds ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA for 10GBASE-T Ethernet up to 100 meters
• Alien crosstalk mitigation — internal solid foil tape isolates each pair, critical for high-density bundled runs in cable trays and vertical risers
• Tangle-free modular latch — low-profile boot prevents snags on adjacent patch cords and ensures fast, one-hand release during moves and troubleshooting
• RapidID barcode integration — pre-applied QR codes tie physical layer to logical topology in asset-management databases, eliminating manual labeling
• 2500-cycle durability — UL 1863 listed plug assembly withstands repeated connect/disconnect in test labs and frequently reconfigured edge-switch installations
• Full PoE++ support — rated for IEEE 802.3bt type 3 (60W) and type 4 (100W) Power over Ethernet, delivering four-pair power to PTZ cameras, digital signage, and 802.11ax APs without dedicated injectors
• 0.250-inch (6.4 mm) slim diameter — fits high-density patch panels and switch ports with minimal congestion; black jacket supports color-coding schemes in multi-tenant or segmented networks

Panduit constructs the UTP6AX12BL with 24 AWG solid copper conductors rather than stranded wire. Solid conductors exhibit lower DC loop resistance and better high-frequency characteristics, making them the preferred choice for permanent datacenter links where the patch cord remains in place for months or years between equipment refreshes. The U/UTP (unshielded twisted pair) construction relies on precise pair geometry and internal foil tape to cancel crosstalk, avoiding the grounding complexity of screened or shielded designs while still meeting Class EA alien-crosstalk limits. This approach simplifies field termination and eliminates ground-loop faults that plague improperly bonded STP installations. The Pan-Net sub-brand designates Panduit's structured cabling portfolio; all TX6A patch cords ship with independent third-party verification of category compliance, and every cord carries a serialized barcode that traces back to manufacturing lot and test data. In environments where uptime is measured in "nines," this lot-level traceability supports root-cause analysis when a link fails.

Deploy the UTP6AX12BL anywhere 10 Gb/s copper is required and you need verifiable alien-crosstalk performance in a bundled installation. Typical applications include top-of-rack switch uplinks in virtualized server farms, SAN extension over twisted pair, 4K/8K video-encoder feeds in broadcast studios, and high-throughput security NVR backhaul. The 12-foot length suits intra-rack connections and short cross-connects between adjacent cabinets; for longer horizontal runs or inter-row links, Panduit offers the same TX6A construction in lengths up to 100 feet. The black jacket integrates into most color-coding schemes—reserve black for management or out-of-band networks, or use it as a neutral default when cable function is documented in the RapidID database rather than by visual inspection. When planning high-density installations, note that Cat 6A's 500 MHz bandwidth and alien-crosstalk headroom eliminate the need to de-rate bundle sizes; you can fill a 2-inch runway with TX6A cords and still achieve 10GBASE-T line rate, whereas Cat 6 in the same scenario would require larger spacing or fall back to 1 Gb/s.

The UTP6AX12BL meets ANSI/TIA-1096-A (formerly FCC Part 68) for telephony applications, IEC 60603-7 for 8P8C modular connectors, and RoHS material restrictions. It exceeds all permanent-link insertion loss and return-loss requirements in TIA-568.2-D Table 8-1, and passes ISO 11801 Class EA alien NEXT and alien FEXT limits with margin. PoE++ type 4 operation is validated across the full 2500-cycle service life, ensuring that conductor contact resistance remains within spec even after years of MAC activity. Panduit ships the UTP6AX12BL in cartons of 10 with each cord individually bagged and barcoded; the CM flammability rating qualifies it for general building plenum substitute (use Panduit's LSZH or plenum-rated variant where fire code mandates CMP or low-smoke construction). For integrators managing multi-site rollouts or large datacenter builds, the RapidID barcode ecosystem is the differentiator—scan cords during installation to auto-populate port maps, then use those maps for remote hands troubleshooting, capacity planning, and decommissioning audits without ever opening a cabinet door.
