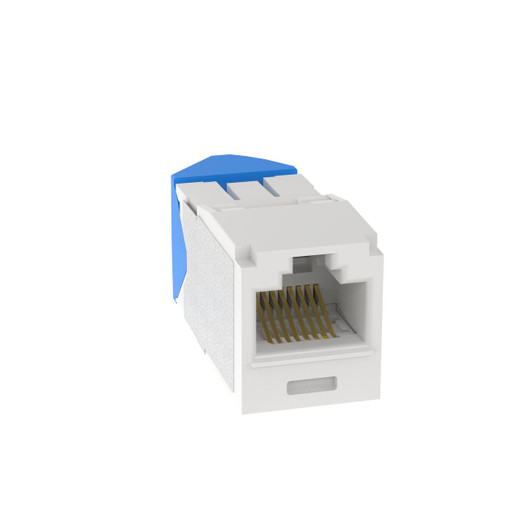

Panduit CJLR6X88TGAW Jack Module

Overview

The Panduit Mini-Com® Cat 6A UTP RJ45 Left/Right 45° Angled TG Jack Module, model CJLR6X88TGAW, is engineered for terminating 4-pair, 22-26 AWG twisted pair cable. Its angled design significantly improves cable routing in confined spaces, preventing strain and maintaining signal integrity. This module is 100% factory tested to exceed industry performance standards, ensuring reliable data transmission for high-bandwidth applications.

Compatibility

This jack module is designed for use with Panduit Mini-Com® Modular Patch Panels and Faceplates. It meets IEEE 802.3af, 802.3at, and 802.3bt Type 3 and Type 4 standards, making it suitable for powering devices via PoE++ (up to 60W), essential for network infrastructure supporting Power over Ethernet devices.

Installation Notes

The TG style termination is integrated into the module, eliminating the need for specialized termination tools and simplifying installation. Each jack is individually serialized for traceability. The module supports 2500 connection cycles, ensuring longevity in demanding environments.
