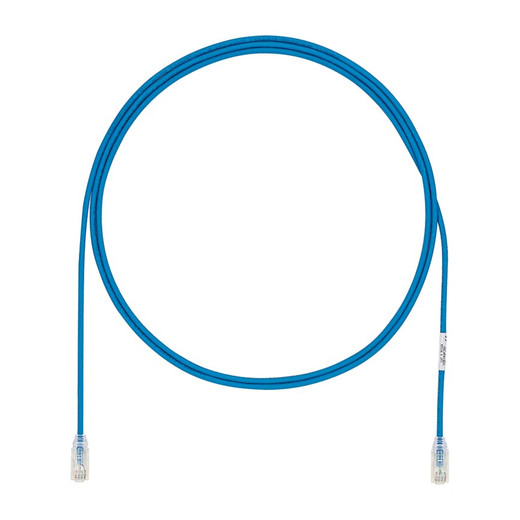

Panduit UTP28X10VL Cat6A Patch Cord

Overview

The Panduit UTP28X10VL is a 10-foot Cat 6A UTP patch cord designed for high-density network environments. Its 28 AWG solid conductor construction and 0.185-inch diameter simplify cable management in data centers, supporting 10GBASE-T Ethernet and consolidation applications. The integrated tangle-free latch ensures secure connections and easy release, streamlining moves, adds, and changes.

Compatibility

This patch cord is engineered to exceed ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA performance requirements up to 500 MHz. It is suitable for 10GBASE-T Ethernet deployments, data center I/O consolidation, server virtualization, backbone aggregation, and high-speed computing. The cable supports IEEE 802.3af/at/bt PoE applications, including PoE++ (802.3bt) types 3 and 4, making it suitable for powering network devices.

Installation Notes

Constructed with a CM/LSZH (Communications Multipurpose/Low Smoke Zero Halogen) flammability rating, this cable is suitable for plenum spaces where required by code. The centered de-embedded plug design and integral pair manager contribute to reliable termination and performance. Pre-installed RapidID barcodes facilitate port mapping with compatible software.
