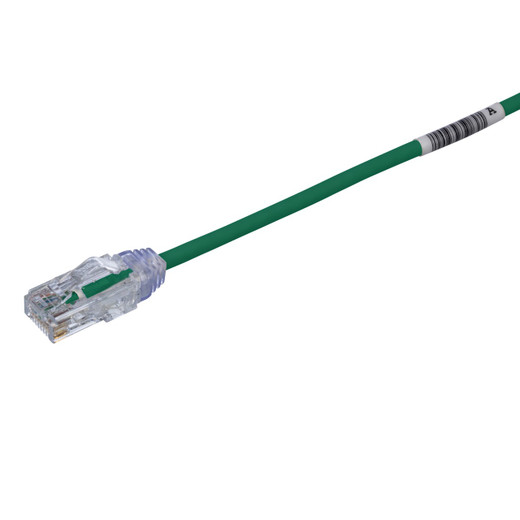

Panduit UTP28SP9GR 9ft Cat6 28AWG Green Patch Cord

Panduit UTP28SP9GR Cat 6 28 AWG UTP Copper Patch Cord

The Panduit UTP28SP9GR is a 9-foot Cat 6 unshielded twisted pair patch cord engineered for high-density datacenter and network closet installations where cable management overhead and airflow constraints demand a smaller-diameter solution. Built with 28 AWG stranded conductors in a 0.150-inch (3.8 mm) profile—30% thinner than standard 24 AWG patch cords—this green cord reduces bundle diameter at the rear of switches and patch panels, simplifies routing through high-density cable managers, and improves cooling efficiency in packed racks. Part of Panduit's TX6-28™ product family and Pan-Net® performance tier, the UTP28SP9GR ships with RapidID pre-installed barcode labels for automated port mapping and exceeds all ANSI/TIA-568.2-D Category 6 requirements from 1 to 250 MHz.

Key Features

• 28 AWG stranded copper construction in 0.150-inch diameter reduces bundle size by 30% versus 24 AWG cords
• RapidID enabled with pre-installed barcode labels for fast port documentation and automated cable management
• Patented tangle-free latch design prevents snags during installation and ensures one-hand release for fast MACs
• 100% factory tested for wire map, NEXT, and return loss to guarantee field performance
• Centered de-embedded plug with integral pair manager maintains geometry through the termination for consistent insertion loss
• CM/LSZH dual-rated jacket meets NEC plenum-alternative requirements and low-smoke/low-toxicity mandates for international deployments
• Supports IEEE 802.3af/at PoE and 802.3bt Type 3 (60W) and Type 4 (90W) for high-power devices

High-density switch environments—Top-of-Rack datacenter fabrics, enterprise IDF closets with 48-port PoE switches, and surveillance recording arrays—generate two operational problems that standard 24 AWG patch cords exacerbate: congested cable pathways at the rear of equipment and restricted airflow through densely packed bundles. The UTP28SP9GR addresses both. Its 28 AWG stranded construction drops the overall cable diameter to 3.8 mm, allowing 40% more cables to fit through the same D-ring or horizontal cable manager slot compared to a 24 AWG cord bundle. This matters when you're landing 96 connections in a 42U rack with shared vertical managers—every tenth of an inch you recover in bundle diameter translates to cleaner bend radii and fewer kinked cables. The stranded conductors provide the flexibility required for tight turns behind equipment without introducing the insertion-loss penalties that plague solid-conductor patch cords in repeated flexing applications. Panduit's centered plug design—where the conductor pairs maintain their factory-tuned twist geometry all the way through the RJ45 termination—ensures that the de-embedded NEXT and return loss performance you see on the test report remains stable through hundreds of mating cycles. Each cord leaves the factory with 100% verification of wire map, near-end crosstalk, and return loss across the full 1–250 MHz spectrum, eliminating the field failures common with economy patch cords that skip per-unit testing.

The RapidID barcode system integrated into the UTP28SP9GR solves the documentation problem that turns routine switch migrations into multi-day troubleshooting events. Each cord ships with a permanent, machine-readable barcode label installed on the cable jacket near both ends. When used with Panduit's RapidID software and a handheld scanner, installers scan the cable at the switch port, scan the cable at the far-end patch panel or workstation, and the software auto-generates a port map, cable schedule, and as-built documentation without manual data entry. This workflow cuts port-mapping time by 70% on typical IDF refresh projects and eliminates the transposition errors that occur when techs hand-write 96 connections on a clipboard. For surveillance and access control integrators managing PoE camera installations, the UTP28SP9GR's IEEE 802.3bt Type 3 (60W) and Type 4 (90W) compliance ensures compatibility with the latest PTZ cameras, multi-sensor arrays, and door controllers that draw 40–70 watts per port—well beyond the 30-watt ceiling of older 802.3at cords. The patented tangle-free latch—a low-profile, snag-resistant release tab—allows one-handed unplugging in dense switch banks where traditional latch designs catch on adjacent cables, and the green jacket color supports the TIA-606-B administration standard for designating building or campus backbone links, simplifying MACs for day-two operations teams who inherit your installation.

The UTP28SP9GR meets ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E transmission requirements, is UL 1863 and CAN/CSA-C22.2 listed (file E129886), and complies with RoHS restrictions on hazardous substances. The CM/LSZH dual rating allows the same cord to serve NEC commercial applications and international projects with EN 50575 or IEC 60332 low-smoke requirements, reducing the SKU count you carry for multi-site deployments. For integrators and datacenter operators facing high-density patching challenges—96-port leaf switches, 10GBASE-T server fabrics, or PoE-intensive surveillance arrays—the 28 AWG compact profile, factory test verification, and RapidID documentation workflow in the UTP28SP9GR deliver measurable install-time savings and long-term reliability that justify the premium over commodity 24 AWG patch cords.
