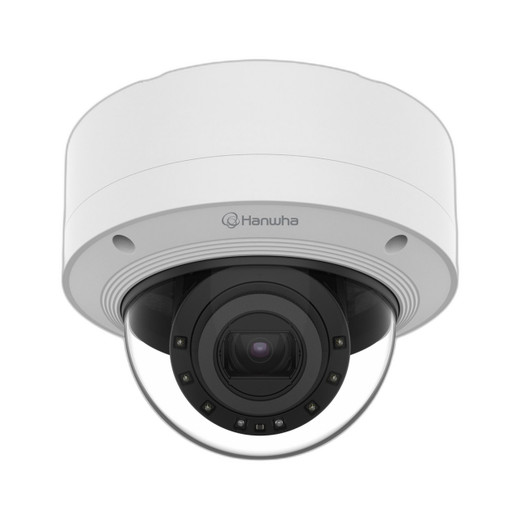

Hanwha XNV-6123R/KEX 2MP Network Camera
The Hanwha XNV-6123R/KEX delivers professional-grade surveillance with 2MP resolution and advanced imaging technology designed for outdoor and demanding environments.
Image quality is supported by WDR (Wide Dynamic Range) technology and IR night vision, enabling clear footage in challenging lighting conditions. The camera achieves 0.06 Lux sensitivity at F1.6, capturing details in low-light scenarios. Varifocal DC auto iris lens provides flexible focal length adjustment and automatic aperture control, allowing installers to optimize framing for diverse deployment scenarios. Multiple compression standards—H.265, H.264, and MJPEG—ensure bandwidth efficiency and compatibility across modern IP surveillance systems.
Built for durability, the XNV-6123R/KEX carries IP66/IP67 weatherproofing ratings, protecting against dust and water ingress, while its IK10 impact rating ensures resistance to physical damage. Operating across -40°C to +60°C temperature ranges with support for up to 95% non-condensing humidity, this camera performs reliably in extreme climates. Metal shielded RJ-45 connectivity (10/100/1000BASE-T) resists electromagnetic interference in industrial and outdoor installations.
Power delivery via PoE+ (IEEE 802.3at, Class 4) eliminates the need for separate power runs, simplifying installation and reducing cabling costs. The camera also supports 12VDC input, offering flexibility in mixed-power environments. Integrated 2GB RAM and 512MB Flash storage facilitate local processing and edge analytics when paired with compatible systems.
Integration is seamless through ONVIF Profile S/G/T/M compliance, enabling interoperability with third-party management platforms and video management software (VMS). Audio input capability supports two-way communication and event-triggered recording workflows. On-camera text overlay supports up to 85 characters for timestamp and metadata display.
- 2MP resolution with WDR and IR night vision for 24/7 surveillance
- IP66/IP67 weatherproof, IK10 impact-rated construction
- Varifocal DC auto iris lens with flexible focal length
- PoE+ powered with optional 12VDC support
- ONVIF Profile S/G/T/M certified for broad system compatibility
- H.265/H.264/MJPEG compression for bandwidth optimization
Expert Take from Marty Allison
The XNV-6123R/KEX is well-suited for outdoor perimeter monitoring, industrial facilities, and applications requiring robust weatherproofing without sacrificing image quality. The combination of IP67 rating, wide operating temperature range, and varifocal lens makes it adaptable to most field installations. PoE+ power keeps wiring simple, and ONVIF compliance ensures you're not locked into proprietary software ecosystems.
