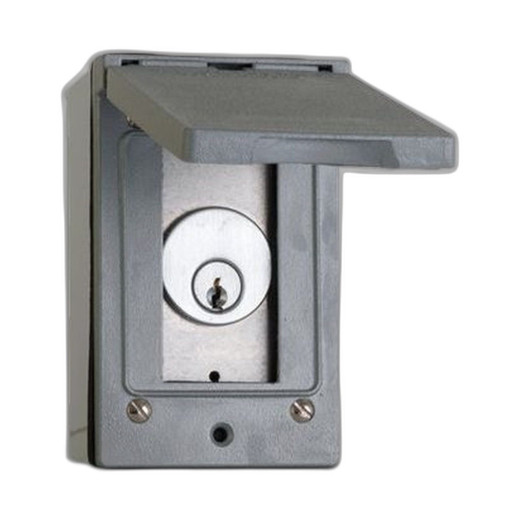

Camden CI-1050CP Surface Mortise Key Switch with Enclosure
The Camden CI-1050CP is a surface-mounted mortise key switch assembly designed for access control and door strike applications where retrofit installation or flush-mount alternatives are impractical. The unit ships complete with enclosure housing and cover plate, eliminating the need for mortise cavity preparation — a significant installation advantage on existing door frames and metal jambs. Mechanical key operation provides fail-safe strike control independent of power loss, making it a reliable supplemental access mechanism for emergency exits, manual override points, and standalone door control scenarios.
Key Features
- Surface-Mount Design: Single gang mortise key switch mounts directly to the door frame surface. No mortise cavity routing required — reduces installation time and eliminates structural compromise of existing frames.
- Complete Package: Enclosure housing and cover plate included. Ready-to-mount assembly reduces BOM complexity and site coordination overhead.
- Mechanical Key Operation: Durable key-actuated switch mechanism. Operates independently of electronic power — ideal for fail-safe strike control or manual override during system downtime.
- Retrofit-Friendly Installation: Surface mounting suits renovation projects, metal door frames, and applications where mortise preparation is cost-prohibitive or structurally risky.
- Standard Integration: Pairs with electromagnetic strikes, access control panels, and door control relays. Mechanical contact closure compatible with 12/24VDC strike circuits.
- Compact Footprint: Single gang form factor fits standard door frame mounting locations without oversized cutouts or extensive cavity prep.
Mechanical key switches remain the default option for critical access points where electronic sensor dependency introduces risk. The CI-1050CP's surface-mount enclosure allows retrofit deployment on existing frames without the cost and structural liability of mortise cavity cutting. Installers find the complete package — switch, housing, and cover plate included — simplifies site logistics and reduces coordination with framers or metalworkers.
Key-operated switches are commonly paired with electromagnetic door strikes on emergency exits, mechanical override stations, and manual access points that require independent operation from the main access control system. The CI-1050CP's mechanical contact closure integrates directly into 12/24VDC strike control wiring, allowing manual activation without networked dependencies. This topology is essential in life-safety contexts where electronic failure must not prevent manual egress or emergency override.
Surface mounting also suits high-security or high-traffic environments where mortise installation would weaken door frame integrity. Metal door frames, reinforced jambs, and architectural applications with aesthetic constraints all favor surface-mount hardware. The enclosure housing protects the switch mechanism from weather, dust, and casual tampering, while the included cover plate provides a finished appearance without additional trim pieces or field modifications.
The Camden CI-1050CP carries manufacturer warranty coverage and integrates seamlessly with standard access control architectures. Mechanical key operation ensures compliance with fail-safe egress requirements and life-safety codes that mandate manual override capability independent of electronic systems. Pair this unit with door control relays, strikes, and emergency exit hardware to build resilient hybrid systems that balance automation with mechanical redundancy.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've installed hundreds of surface-mount key switches across retrofit access control projects, and the CI-1050CP solves a real problem: existing door frames that can't tolerate mortise routing. On metal-frame commercial doors, reinforced wood jambs, and heritage buildings where structural cutting is off-limits, the mortise cavity prep cost and liability often exceed the cost of the switch itself. Surface mounting eliminates that friction entirely. The complete package — switch, enclosure, and cover plate — means one delivery, one SKU to track, and no field improvisation on cover finishes. We've seen integrators spec this unit specifically for retrofit retrofits where the alternative would be tearing out the frame or installing a flush-mount electric lock (which introduces cost, power requirements, and electronic dependencies that don't fit the application). The mechanical key operation is the real value-add: no network dependency, no battery backup needed, and it works during a power outage or network failure. That makes it the default choice for emergency exits, manual override stations, and supplemental strike control on hybrid systems.
Technical Highlights:
- Mechanical Contact Closure: Direct 12/24VDC strike relay integration — no electronic interface or power conversion required. The switch simply completes a circuit; the strike relay handles voltage/current management. Simplified wiring and higher reliability in noisy electrical environments.
- Fail-Safe Topology: Operates without power — essential for life-safety egress and emergency override scenarios where electronic failure cannot block manual access. Satisfies code requirements for independent manual release.
- Surface Enclosure Design: Protects switch internals from weather, dust, and casual tampering. Cover plate included — no additional trim or field finishes needed. Mounted directly to frame surface; installation time measured in minutes on retrofit jobs.
- Retrofit Cost Model: Eliminates mortise routing labor, cavity prep, frame reinforcement, and potential structural liability. Total installation cost lower than flush-mount alternatives on existing frames.
- Standard Wiring Compatibility: Works with any 12/24VDC strike relay circuit. No proprietary controllers, no special interfaces — pairs with legacy access control panels, modern cloud systems, or standalone timer relays.
Deployment Considerations:
- Surface mounting is visible — confirm aesthetic acceptance before specifying. Some clients prefer hidden mortise mechanisms; this unit is not the answer for those projects.
- Key security depends on lock quality and key distribution discipline. Surface-mounted hardware is slightly more accessible to physical attack than mortise-set equipment. Pair with restricted keyways and key control procedures on high-security sites.
- Verify strike relay and door closer compatibility before installation. Key switches drive contacts only; the relay must be rated for door strike amperage and duty cycle.
- Cover plate finish matches enclosure housing — confirm color/material match against surrounding door frame and hardware trim before ordering.
- Position switch at comfortable hand height — typically 36–48 inches from floor. Surface mounting allows flexible placement without routing constraints; use this flexibility to optimize ergonomics and visibility on the job site.
The CI-1050CP is the right choice for retrofit access control retrofits on existing frames, emergency override stations, and hybrid systems where mechanical key operation must work independently of electronic power. Integrators building life-safety-compliant installations or working on buildings where frame modification is prohibited should evaluate this unit as a cost-effective alternative to mortise routing or flush-mount electronic locks. For more surface-mount and mechanical access control options, browse the Camden catalog.
