Overview

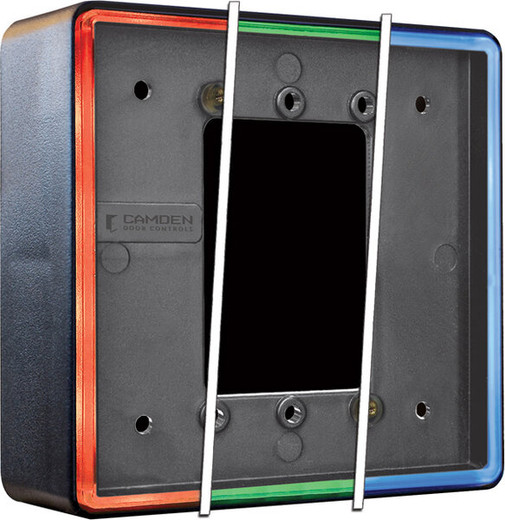

The Camden CM-54i is a surface-mounted access control enclosure designed to provide real-time visual feedback in secured entry installations. The tri-color LED indicator (red, green, blue) signals system status and door access events without requiring operators to monitor a remote interface — a practical advantage in high-traffic access points where immediate feedback reduces confusion and support calls. Standard depth construction integrates cleanly into existing door control and credential reader deployments, whether during new build or retrofit.

Key Features

• Tri-Color LED Status Indication: Red, green, and blue LED arrays deliver distinct status signals for access granted, denied, fault, or alarm conditions. This eliminates ambiguity at the door and keeps operators and security personnel informed without additional wiring to remote displays.
• 12VDC Operation: Runs on standard 12-volt DC power already present in most access control installations. No exotic power requirements mean simpler integration with existing door strike and reader power infrastructure, reducing installation cost and complexity.
• Surface-Mount Form Factor: The CM-54i mounts flush to any wall without recessing, speeding installation in retrofit scenarios and avoiding the structural work required for in-wall boxes. Ideal for facilities where retrofitting conduit or cutting into walls adds time and expense.
• Auxiliary Status Integration: Designed to pair with access control panels, electronic strikes, and magnetic locks that require external status feedback. Compatible with both legacy and modern 12VDC control architectures commonly found in commercial and industrial door management systems.
• Clear Operator Visibility: The illuminated indicator is positioned for visibility from both near and far distances, reducing the need for operators to approach the door to verify access state. Particularly valuable in warehouses, secure facilities, and multi-door entrances.
• Retrofit and New Construction Support: Works equally well in existing installations and new deployments. Surface mounting accommodates layouts where recessed enclosures are impractical or cost-prohibitive.

Integration & Compatibility

The CM-54i integrates with any access control ecosystem that outputs 12VDC status signals — card readers, biometric systems, electronic locks, and relay-based door controls. Its straightforward LED interface means no software drivers or VMS licensing; it functions as a hardwired status lamp tied directly to your door control logic. If your installation uses a traditional access control panel or modern networked reader, the CM-54i will consume one or more status outputs from your panel to drive the LED states. Pair it with standard 12VDC power supplies already deployed in your mechanical room, or tap into existing door strike power circuits where available. No special cabling beyond standard shielded twisted pair is required.

Typical Deployment Scenarios

Warehouse and Logistics: Position the CM-54i at each external or secure-zone entry to give loading dock staff immediate feedback on badge acceptance or denial, eliminating wait times and repeated badge attempts.

Data Centers and Server Rooms: Install at physical security checkpoints to signal alarm conditions or restricted-hour lockouts without requiring engineers to check their phones or access a security dashboard.

Multi-Tenant Office Buildings: Use the tri-color feedback to enforce after-hours access policies visually; blue or red signals alert tenants that their badge is not valid for that time window.

Manufacturing and Clean Rooms: Integrate with interlock systems to indicate gowning status or contamination alerts at entry doors, keeping operators informed at a glance.

What's in the Box

The CM-54i comes as the surface-mounted enclosure with integrated tri-color LED array. Mounting hardware, power leads, and status input terminals are included for direct integration into 12VDC control circuits. Consult the installation guide for wiring schematics and terminal specifications for your specific access control panel.

Frequently Asked Questions

Q: Can I use the CM-54i with my existing access control panel?

A: Yes, provided your panel outputs 12VDC status or relay contacts. The CM-54i connects to those outputs to drive the LED states. Consult your panel's documentation to identify available status outputs and their voltage ratings.

Q: What happens if I lose power to the CM-54i?

A: The LEDs will extinguish. The CM-54i itself has no backup power; it relies on the same 12VDC supply as your door strike or reader. To maintain indication during power loss, wire it through a UPS-backed circuit.

Q: Is the CM-54i suitable for outdoor installation?

A: The standard CM-54i is designed for indoor or protected-entry use. If you need outdoor mounting, confirm environmental ratings and sealing with the manufacturer or your systems integrator; surface-mount enclosures may require additional weatherproofing or housing.

Q: How many status states can the tri-color LEDs display?

A: With three independent LED circuits, you can program multiple combinations: green (access granted), red (access denied), blue (alarm or special condition). Your access control panel determines how many distinct states you can assign.

Q: Does the CM-54i integrate with IP-based access control systems?

A: The CM-54i is a 12VDC hardwired device. If your IP-based system includes relay outputs or 12VDC status lines, it can drive the CM-54i. For pure IP-only systems without hardwired outputs, you will need a gateway or converter module.

Q: What is the typical cable run length from my access control panel to the CM-54i?

A: Standard shielded twisted pair is recommended for runs up to 50 feet under normal conditions. For longer distances or high-noise environments, confirm with your integrator to avoid LED dimming or intermittent indication.

Karl Wilson

The CM-54i delivers straightforward visual feedback at the point of access — no software, no network, no licensing overhead. In my experience, the hardest part of access control deployment is not the badge reader or the lock; it's giving operators and security teams immediate, unambiguous feedback about what just happened at the door. The tri-color LED on the CM-54i solves that by turning a silent relay event into a visible status signal everyone can read from across the room.

Technical Highlights:

• 12VDC Operation: Uses the same low-voltage power already running your door strikes and readers — no additional transformer or supply circuit required. If your access control cabinet is 50 feet away, standard 12VDC twisted pair gets the job done without signal degradation over reasonable cable runs.
• Tri-Color LED Array: Three independent LED circuits mean you can map any combination of access states (granted, denied, alarm, lockout, special mode) to red, green, or blue. Your panel determines the logic; the CM-54i just turns the lights on and off.
• Surface-Mount Form Factor: No structural work, no in-wall conduit, no cutting into finished walls. Install it in an afternoon on any building entry and move on — a real time saver in retrofit deployments where recessed boxes would add days of coordination with building trades.

Deployment Considerations:

• The CM-54i is hardwired to your access control panel's status outputs. If your panel has only a single relay output, you can drive only one LED at a time; confirm your panel supports at least three independent 12VDC outputs or contacts if you want full tri-color functionality.
• Outdoor or high-vibration environments may require additional weatherproofing or strain relief. Standard industrial enclosures can be retrofitted around the CM-54i, but the base unit is not rated for direct rain or washdown.
• Power loss to the unit = loss of indication. If your facility requires 24/7 feedback regardless of UPS status, plan to wire the CM-54i through a battery-backed supply or accept periodic dark periods during maintenance windows.

Deploy the CM-54i at any secured entry where operators need immediate, visual confirmation that access was granted or denied — warehouses, server rooms, secure labs, and multi-door checkpoints all benefit from removing the guesswork. It's a small detail that dramatically improves user experience and reduces unnecessary badge-retry frustration.
