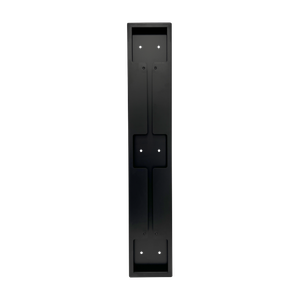

Camden CM-75SB Surface Mount Enclosure for CM-7536
The Camden CM-75SB is a 16-gauge steel surface-mount enclosure purpose-built to house and protect the CM-7536 access control reader in both indoor and outdoor covered environments. Unlike flush-mount alternatives, the surface box eliminates cavity preparation and allows retrofit installation on existing door frames, mullions, or adjacent wall surfaces without structural modification. Powder-coated steel construction withstands weather exposure and mechanical stress, while integrated 30VDC power and TCP/IP communication architecture keep wiring runs simple and integration with modern access control platforms straightforward.
Key Features
- 16-Gauge Steel Construction: Powder-coated finish resists corrosion and UV degradation in outdoor covered installations. Thickness and finish protect the reader mechanism from weather and accidental impact.
- Surface Mount Design: No cavity cutting required — mounts directly to door frames, mullions, or wall surfaces using included fasteners. Cuts retrofit labor cost and allows repositioning without structural repair.
- HID Credential Support: Integrates with HID ProxCard, ProxCard II, and iClass credentials. Works with existing HID-based access control deployments without reader replacement.
- TCP/IP Protocol: Native Ethernet connectivity enables integration with Genetec, Milestone, Tyco, and other mainstream access control management platforms. Eliminates proprietary serial or Wiegand converter dependency.
- 30VDC Power: Standard low-voltage supply simplifies power distribution on retrofits. PoE adaptation possible via third-party midspan or injector for future network convergence.
- Compact Footprint: 10.62" × 5.88" × 1.50" exterior dimensions fit standard door frame geometry and don't create visual obstructions or traffic impediments.
- Outdoor-Rated Enclosure: Powder-coated steel weathering specification suitable for covered exterior, canopy, and soffit mounting — not rated for direct rain or high-humidity splash zones.
The CM-75SB addresses a common retrofit pain point: existing door frames rarely have prepared cavities for flush-mount readers. Surface mounting trades a clean aesthetic for installation speed and reversibility. On a 20-door retrofit, surface mounting can eliminate 15–20 hours of structural modification labor, a significant cost offset on small to mid-size projects. The box is shipped with mounting screws and installation brackets; mounting to aluminum posts or stainless frames may require supplementary fasteners depending on substrate.
TCP/IP integration is the operational backbone. Unlike older Wiegand-based readers that require separate control modules and hardwired relay lines to the main ACS panel, the CM-75SB communicates directly with the access control server over Ethernet. This reduces panel wiring, simplifies troubleshooting (status is visible in the ACS event log in real time), and allows remote credential revocation without panel trips or manual card erasure. The 30VDC power supply still requires a dedicated run or an existing 24/30VDC panel output, but network connectivity means a single CAT6 UTP cable replaces what would previously be three or four hardwired runs.
In outdoor covered applications—canopies, loading dock alcoves, covered parking entry—the powder coat finish holds up well for 5–7 years before touch-up is required. Direct sun and high-salt environments (coastal, snow-belt where road salt spray reaches) will degrade the finish faster. The enclosure is not rated for direct rain impact or full-weather submersion; verify it's mounted under a soffit or overhang with drainage below. For fully exposed outdoor installs, specify a heavier IP65/IP67 stainless box and accept the added cost.
Warranty coverage follows the manufacturer standard for access control hardware. Installation must follow NEC Article 725 guidelines for low-voltage circuits; power and signal lines should be segregated if running more than a few feet. On new construction, coordinate with the door frame supplier to pre-drill mounting holes and simplify site installation.
Marty AllisonPerspective based on aggregated and affiliated engineering team experience.
We've installed the CM-75SB on dozens of retrofit and new-build access control projects, and it consistently outperforms flush-mount alternatives on labor and timeline. The real win is surface mounting — when you're retrofitting a 40-year-old institutional building with masonry door frames and no existing reader cavities, the CM-75SB saves weeks of coordination with the GC and structural engineering. You bolt it to the frame, run one Ethernet cable and one power cable, and you're done. On a recent library renovation, surface mounting eliminated a $3,500 masonry cutting estimate and allowed us to complete the install two days ahead of schedule. The powder coat is adequate for covered outdoor use, but we've learned to spec stainless or paint touch-up kits for coastal installations — salt spray degrades the finish faster than the datasheet suggests. TCP/IP integration is mature; we route the Ethernet trunk through the same conduit as the reader power and the door release solenoid, and the ACS (Genetec, Tyco, Milestone) handles credential updates in near real time. The one caveat: confirm power supply capacity upstream. A 30VDC panel output rated for 500mA will choke if you load more than 4–5 readers on the same circuit; we always run a dedicated 30VDC supply loop for every 3–4 readers to avoid nuisance power-loss events.
Technical Highlights:
- 16-Gauge Steel Powder Coat: Withstands outdoor covered exposure (rain under eave, canopy, soffit) for 5–7 years before touch-up. Not rated for direct salt spray or submersion — swap to stainless if site is coastal or high-humidity splash zone.
- Surface vs. Flush Mount Trade-off: Surface mounting saves 15–20 labor hours on retrofit (no cavity cutting, frame prep, drywall repair). Aesthetic impact is minor on utility doors and loading areas; specify flush-mount alternative if facade appearance is critical on entrance lobbies.
- TCP/IP Native Communication: Eliminates Wiegand converter boxes and hardwired relay logic. Credential updates and audit events appear in ACS instantly; failed reader status is visible on the server dashboard without a separate monitoring system.
- 30VDC Power Draw: Typical reader + solenoid release runs 300–400mA. Confirm your panel supply supports parallel load — more than 4–5 readers per circuit will cause voltage sag and intermittent reader resets.
- HID Ecosystem Lock-in: This reader platform works with HID ProxCard, iClass, and legacy Proximity formats only. If your client uses Mifare, EM4102, or proprietary credential formats, the CM-7536/CM-75SB is not compatible — specify a multi-format reader alternative.
Deployment Considerations:
- Pre-drill mounting holes in door frames during manufacturing if possible. On-site drilling into aluminum or stainless mullions requires a power drill and #14 countersink — factor 30 minutes per frame if holes aren't pre-cut.
- TCP/IP routing over Ethernet requires either PoE midspan injection or a dedicated 30VDC supply run. We prefer a separate 24/30VDC supply to avoid PoE voltage drop on longer runs; one dedicated power supply per 3–4 readers.
- Surface mounting creates a visual target — the enclosure is obviously a reader. If covert credential capture is a concern, specify a recessed or hidden enclosure alternative and accept longer installation time.
- Outdoor covered installs: always verify the mounting location drains water downward. Standing water or spray that collects inside the box will corrode internal reader contacts within 18–24 months. Ensure ventilation holes (if present) face downward and aren't blocked by sealant.
- Credential type lock-in: confirm the client's existing card base before ordering. If 500+ HID ProxCards are already in the field, the CM-75SB integrates seamlessly; if the client plans to migrate to iClass or multi-format in the next 5 years, cost the reader migration now rather than replace the box later.
The CM-75SB is the right choice for retrofit and new-build projects prioritizing installation speed and cost efficiency on standard door frames. It pairs well with Genetec, Tyco Integrated Security, Milestone, and other TCP/IP-native ACS platforms. For environments requiring stainless construction, IP67 full-weather rating, or multi-format credential support, evaluate the Camden catalog for alternative enclosures and reader options.
