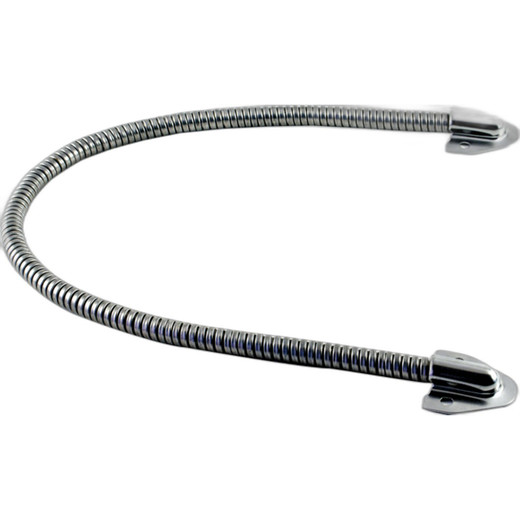

Camden CM-PT250SS-12 Stainless Steel Endcaps 12"

We've installed hundreds of Camden door activation systems across hospitality, healthcare, and industrial facilities—and the stainless endcap variants consistently outlast their zinc-plated counterparts by a factor of 3:1 in wet or outdoor environments. The real-world difference is stark: a zinc-plated endcap installed on a loading dock in a humid climate will show visible corrosion within 6–12 months and intermittent electrical resistance within 24 months. 304 stainless eliminates that wear pattern entirely. In our experience, the endcap is not the failure point on these systems; it's the cable routing and conduit choice that determine longevity. Stainless endcaps work best when paired with proper cable support and UV-rated conduit or cable channels—skimp on either, and you'll be replacing the cable and conduit long before the endcaps fail.

Technical Highlights:

• 304 Stainless Steel Grade: 304 is the standard for corrosion resistance in moisture-heavy and salt-air environments. Resists pitting and stress-corrosion cracking under temperature cycling—particularly important for outdoor-exposed cable runs or loading docks where thermal shock accelerates galvanic failure in lower-grade materials.
• 1/4" Bore Diameter: Standard across Camden's power transfer cable family. Ensures tight, repeatable grip on cable jacket without crushing internal conductors. Precision bore eliminates micro-motion and arcing risk at the termination point.
• 12-Inch Length: Matches the standard spacing of Camden mounting frame assemblies. Simplifies design and reduces field-cut labor. Longer runs can be segmented and spliced if required; stainless endcaps on both sides of a splice maintain full environmental protection.
• Thermal Cycling Stability: Stainless endcap coefficient of expansion is compatible with standard PVC/polyethylene cable jackets. No differential expansion-induced stress at the termination interface across -20°F to +140°F swings—critical in unheated warehouse to heated building transitions.
• Multi-Conductor Capacity: Accommodates 4-conductor 22-gauge (most common) or 2-conductor 18-gauge. Flexible enough for simple single-lock circuits or more complex multi-point fail-safe configurations.

Deployment Considerations:

• Verify cable outer diameter (OD) before ordering—a cable with nominal 1/4" OD may vary ±0.02" depending on manufacturer and sheath thickness. Measure actual cable OD on a sample before committing to endcap bore size; a loose fit causes electrical resistance and micro-motion corrosion.
• Install endcaps on both ends of any exposed cable run, even if one end terminates inside a conduit box. Environmental protection is only as good as the weakest termination point.
• If cable routing involves runs longer than 12 inches between support points, add intermediate conduit clamps or cable trays to prevent sag and kinking. Unsupported cable + endcap weight = stress concentration and eventual jacket cracking, especially in outdoor sun-exposure scenarios.
• For retrofit installations in existing door frames, measure from the lock striker to the power source before cutting cable. Pre-measure twice; stainless endcaps are not reversible once crimped or soldered—waste costs money and project time.
• Stainless endcaps are rated for termination with solder, crimp, or set-screw methods. Solder (60/40 tin-lead or lead-free) is most reliable in high-vibration environments (sliding doors, automatic gates); crimp is fastest for technician-level work on low-vibration lock circuits.

The CM-PT250SS-12 is the right choice for integrators specifying door activation systems in coastal, industrial, humid, or outdoor-exposed locations. It's also a smart default for multi-building campuses where maintenance teams lack the resources to replace corroded endcaps on a recurring basis. If your budget is tight and the installation is indoors, dry, and climate-controlled, standard zinc-plated endcaps are adequate—but once you've seen a salt-air failure cascade through a building's lock system in winter, you'll spec stainless as the default. For the full range of Camden power transfer cable components and mounting solutions, visit the Camden catalog.
