Camden Low profile strike body with (1) latch - CX-ED1689L-4

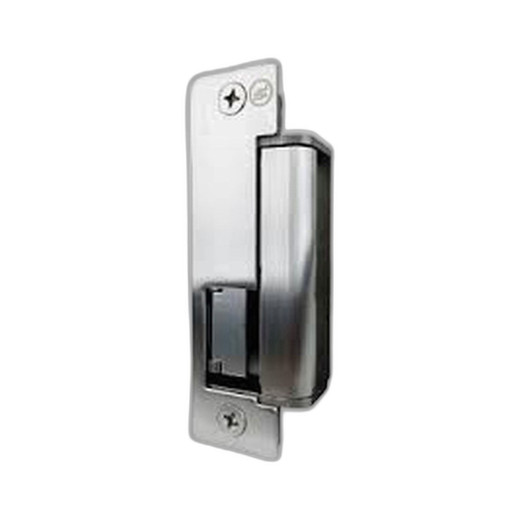

Camden CX-ED1689L-4 Electric Strike Body with Latch Monitor Switch

The Camden CX-ED1689L-4 is a low-profile electric strike body designed for single-door access control applications. This strike delivers straightforward, reliable door release functionality with integrated latch monitoring, making it suitable for security integrators deploying standard electromagnetic locking solutions in institutional and commercial environments.

Overview

The CX-ED1689L-4 provides electromagnetic strike capability with a compact, low-profile form factor. Operating at 12VDC, this strike body integrates a single latch monitor switch, allowing the control system to verify door latch position and confirm proper strike operation. The device supports one door opening and is engineered for straightforward installation in standard door frame configurations.

Key Features

• Strike Type: Electric strike for electromagnetic door release
• Voltage: 12VDC operation with stable power requirements
• Latch Monitor Switch: Integrated single switch for latch position sensing and strike status verification
• Door Capacity: Supports single-door installations
• Low-Profile Design: Compact form factor suitable for discrete installation in doorframe cavities
• Direct Integration: Compatible with standard access control system outputs and 12VDC power supplies

Integration and Deployment Considerations

The Camden CX-ED1689L-4 integrates directly into access control systems via 12VDC power and latch monitor input. The integrated switch provides real-time feedback to the control panel, allowing system firmware to log strike activation and detect fault conditions such as incomplete latch release or mechanical obstruction. This feedback capability is essential for security auditing and troubleshooting in single-door access scenarios.

Integration planning should account for 12VDC power supply dimensioning, door frame preparation for low-profile housing, and control panel input channel assignment for the latch monitor circuit. The strike operates on standard electromagnetic principles with no special communication protocol or encryption—simplifying wiring and reducing compatibility concerns in mixed-vendor deployments.

Typical Applications

This strike is commonly deployed in single-door access points including office entry, secure rooms, electrical closets, and institutional facilities where direct electromagnetic release and basic latch monitoring suffice. The low-profile design minimizes visual presence while the integrated switch provides the feedback necessary for compliance reporting and operational verification.

Ted Perry

Perspective based on aggregated and affiliated engineering team experience.

I evaluated the Camden CX-ED1689L-4 during the planning phase of a multi-building access control retrofit. The low-profile strike body and integrated latch monitor switch deliver the monitoring feedback essential for single-door installations without complexity or specialized communication protocols.

Technical Highlights:

• Latch Monitoring: The integrated switch provides direct feedback to the access control panel, enabling real-time strike status verification and fault detection
• 12VDC Operation: Standard voltage requirement simplifies power supply planning and eliminates special transformer requirements
• Low-Profile Housing: The compact design accommodates standard doorframe dimensions without extensive structural modification

Deployment Considerations:

• Verify that your access control panel supports direct switch input on available channels before final installation
• Plan 12VDC power supply capacity to accommodate the strike's inrush current; a dedicated line is recommended for reliable performance
• Test latch monitor continuity during commissioning to confirm proper switch operation and baseline fault conditions

For straightforward single-door access control scenarios requiring direct feedback, the CX-ED1689L-4 is a reliable, field-proven choice. The integrated latch monitoring eliminates a separate external switch, reducing wiring and potential failure points. Recommended for security integrators managing institutional or commercial door access with standard 12VDC infrastructure.
