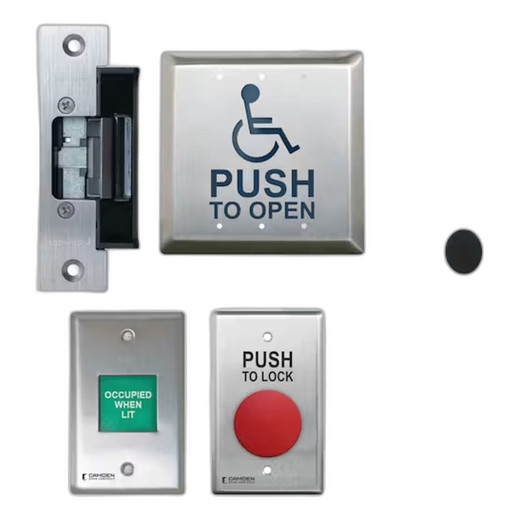

Camden CX-WC17 Wide Column Switch with LED Annunciator Restroom System Controller

Overview

The Camden CX-WC17 is a dedicated access control controller designed for single-door restroom and facility management applications. This wide-column format switch integrates keypad-based credential reading with LED annunciator status indication, providing visual and operational feedback for door access events. The CX-WC17 operates on 24VDC power and communicates via TCP/IP protocol, making it suitable for networked access control deployments where centralized monitoring and control are required.

Key Features

• Single-Door Capacity: Manages access control for one secured door, ideal for restroom facilities, utility rooms, or single-point access nodes
• Keypad Reader Interface: Integrated keypad-based credential entry eliminates the need for separate reader hardware in compact installations
• Electric Strike Control: Native support for electric strike locks with integrated relay output for solenoid activation and monitoring
• LED Annunciator Display: 6-inch wide column design featuring visual status indicators to communicate door state, access grant/deny events, and system status to facility users and staff
• TCP/IP Communication: Network-based protocol for real-time integration with access management systems, enabling remote monitoring, audit logging, and centralized credential management
• Industrial Operating Temperature Range: Operates reliably from −20°C to 70°C (−4°F to 158°F), supporting both climate-controlled indoor facilities and semi-conditioned utility spaces
• 24VDC Power Requirement: Low-voltage operation simplifies power delivery infrastructure and reduces electrical installation complexity in retrofit and new construction scenarios
• Compact Form Factor: Wide-column mounting profile fits standard door frame installations while maintaining clear visual annunciator display for end users

Integration & Compatibility

The CX-WC17 (often searched as CX WC17) integrates into TCP/IP-based access control networks, allowing connection to enterprise door controllers, cloud-based management platforms, and third-party access management software. The keypad interface supports numeric PIN credential entry, making it suitable for facilities transitioning from mechanical locks or badge-based systems. Electric strike compatibility ensures reliable electromagnetic lock control for both fail-safe and fail-secure applications depending on facility security policy. Installation requires standard 24VDC power supply with sufficient current capacity for strike activation and keypad circuit operation.

Typical Applications

Security integrators deploy the CX-WC17 in restroom access control, employee facilities management, utility room lockdown, and single-point secure areas within larger buildings. The LED annunciator reduces user confusion by providing immediate feedback when credentials are accepted or rejected, improving user experience and reducing false entry attempts. IT managers benefit from TCP/IP connectivity enabling integration with existing network-based security infrastructure without requiring separate standalone systems.

Ted Perry

I've evaluated the CX-WC17 during several restroom access control deployments, and it addresses a real gap in the market for single-door facilities that need more than mechanical locks but don't justify full badge reader infrastructure. The keypad-based credential entry keeps installation simple, and the LED column annunciator eliminates user confusion—I've seen significant reductions in tailgating attempts when users get clear visual feedback on their entry status.

Technical Highlights:

• Single-Door Simplicity: No multi-door expansion required; CX-WC17 is purpose-built for one access point, reducing cost and configuration overhead
• Network-Native: TCP/IP communication integrates directly into access management systems; no serial-to-network converters needed
• Thermal Robustness: Operating range from −20°C to 70°C handles both conditioned spaces and outdoor utility room installations without derating
• Strike-Ready: Built-in electric strike relay eliminates external control modules for fail-safe or fail-secure solenoid locks

Deployment Considerations:

• Verify 24VDC power capacity; strike activation draws significant current—sized power supplies prevent nuisance lockouts during simultaneous access events
• Confirm TCP/IP network availability at installation location; wireless fallback is not supported, so wired Ethernet drops must be pre-planned
• Test keypad response under high-traffic conditions; numeric PIN systems work well for low-turnover facilities but may require longer credential sequences in high-volume areas
• Plan LED annunciator visibility from both sides of the door if two-way user guidance is required

The CX-WC17 is a solid choice for organizations standardizing on network-based access control but needing a compact, cost-effective single-door solution. It removes the complexity of badge reader procurement and integration while maintaining full audit trail and remote management capabilities. I recommend it for restroom, janitorial, mechanical room, and secure storage applications in buildings with existing TCP/IP infrastructure.
