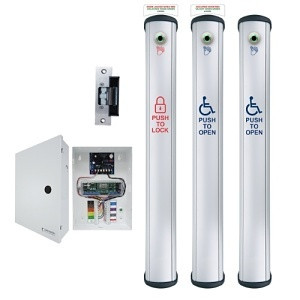

Camden CX-WC18SL Side Load Column Switch Controller

Overview

The Camden CX-WC18SL is a 4-1/2" wide side load column switch designed for integrated access control installations requiring networked door strike management. This controller combines physical keypad entry with TCP/IP network communication, making it suitable for multi-door deployments where centralized monitoring and control are essential. The unit features an LED annunciator for real-time status feedback to users and operators.

Key Features

• Network-Ready Communication: TCP/IP protocol support enables integration with access control management systems and remote monitoring from a centralized console
• Electric Strike Control: Native electric strike output for solenoid-based door locking mechanisms, supporting standard fail-secure and fail-safe configurations
• LED Annunciator Display: Visual status indication for user feedback during access events, alarms, and system conditions
• Side Load Column Design: 4-1/2" width profile fits standard door frame cavity installations with minimal surface protrusion
• Controller-Class Architecture: Standalone intelligence for local decision-making and failover operation when network connectivity is interrupted
• Compact Form Factor: Vertical column mounting reduces aesthetic impact in commercial and institutional environments

Integration & Compatibility

The CX-WC18SL communicates via TCP/IP, allowing seamless integration into existing IP-based access control networks. Security integrators can manage this device alongside other networked controllers using standard access management platforms. The electric strike output accommodates electromagnetic locking hardware commonly found in commercial door hardware configurations. TCP/IP connectivity enables event logging, remote unlock commands, and real-time alarm reporting to a central management station.

Typical Applications

This controller is well-suited for office buildings, healthcare facilities, educational institutions, and secure entry points where multiple doors require coordinated access control. The networked architecture supports both standalone installations and multi-site deployments with centralized management. Integrators commonly specify the CX-WC18SL (often searched as CX WC18SL) in retrofit projects where column-based controllers minimize disruption to existing door hardware.

The side load design of the CX-WC18SL makes installation straightforward in standard hollow metal or aluminum door frames. Electric strike compatibility covers both standard voltage configurations used in North American commercial installations. TCP/IP communication ensures the unit can be integrated into IP security networks without proprietary gateways or additional interface hardware.

Ted Perry

Perspective based on aggregated and affiliated engineering team experience.

I've specified the Camden CX-WC18SL in several multi-building access control deployments, and it performs reliably as a networked strike controller. The TCP/IP communication is straightforward to integrate into existing management platforms, and the side load column profile minimizes visual impact in professional environments. The LED annunciator provides immediate user feedback without requiring separate call boxes.

Technical Highlights:

• TCP/IP Networking: Direct integration with access management systems eliminates need for external gateways; supports remote monitoring and command execution
• Electric Strike Output: Compatible with standard solenoid strike hardware; supports typical fail-secure and fail-safe door locking scenarios
• LED Status Feedback: Real-time visual indication of access granted/denied conditions and system alarms without additional signage hardware

Deployment Considerations:

• Verify voltage requirements match your facility's power distribution before installation; coordinate with electrical contractors on strike circuit capacity
• Test TCP/IP connectivity and failover behavior in your network environment; confirm that the controller maintains local logic during network interruptions
• Confirm compatibility with your access control platform's API and controller management tools before ordering; some legacy systems may require protocol converters

The CX-WC18SL delivers solid performance in networked access installations. Sizing multiple units for larger facilities is straightforward, and the column design keeps installation costs down. I'd recommend confirming reader/credential requirements separately, as this is the strike controller component of a larger system.
