Middle Atlantic C324LG Sngl Disp Mtunv - C3-24-LD1U

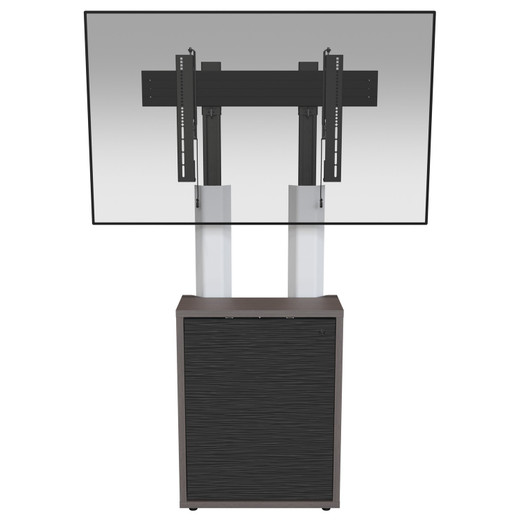

Middle Atlantic C3-24-LD1U Single Display Mount for C3 Credenza

The Middle Atlantic C3-24-LD1U is a height-adjustable, single-display upright mount designed specifically for the 24-inch Middle Atlantic C3 Credenza base series. It handles screens from 40 to 98 inches and supports up to 150 lbs — enough headroom for virtually any commercial-grade flat panel in that size range. If you're building a display mounting solution on a C3 credenza platform and need a clean, upright single-screen configuration, this is the dedicated hardware for that job.

Key Features

• 40–98 Inch Display Compatibility: The C3-24-LD1U accommodates screens from compact 40-inch conference room panels all the way up to 98-inch large-format displays. That range means you're not locked into a single screen generation — swap or upgrade the panel without replacing the mount infrastructure.
• 150 lb Weight Capacity: A 150-lb rated load capacity gives you real margin beyond what most commercial displays weigh. A 98-inch commercial panel typically runs 100–130 lbs; the extra headroom means you're not operating at the structural limit, which matters for long-term integrity in permanent installations.
• Height Adjustable: Field-adjustable height lets installers dial in the optimal viewing position after the credenza is in place. This is especially useful in rooms where the final furniture layout or seating height isn't confirmed until the day of installation — you're not locked to a fixed position at mount time.
• Steel Construction: The mount is fabricated from steel, not aluminum or composite, which is the right call for a structure supporting panels up to 98 inches. Steel delivers the rigidity needed to keep a large-format display stable over years of daily use without creep or flex.
• Dedicated C3 24-Inch Credenza Fit: This mount is engineered specifically for the 24-inch C3 Credenza base series. That purpose-built fit means no improvised adapters, no guesswork on structural alignment — the upright integrates with the credenza as a matched system, which also simplifies the final appearance.
• Mounting Hardware Included: All mounting hardware ships in the box, so you're not sourcing fasteners separately on installation day. For integrators running multiple rooms, that's one fewer variable to manage on the job site.
• Compact Profile — 2.9 in Depth: The mount adds only 2.9 inches of depth to the credenza footprint. In boardrooms or exec suites where furniture clearance is tight, that slim profile keeps the overall credenza-plus-display assembly from intruding into circulation space.
• Black Finish: The black finish blends with commercial AV equipment and minimizes visual distraction in presentation environments — appropriate for the boardroom and conference center contexts where C3 credenzas are typically deployed.

Integration and Compatibility

The C3-24-LD1U (often searched as C3 24 LD1U) is purpose-built for the Middle Atlantic C3 Credenza 24-inch base series. It is not a universal upright — verify your credenza base is a C3 24-inch unit before ordering. The height-adjustable column accommodates displays from 40 to 98 inches, so compatibility with the screen itself comes down to the panel's VESA pattern and weight, both of which fall within the mount's 150-lb structural rating for the supported size range. For multi-display configurations or different credenza widths, Middle Atlantic offers companion units in the C3 line — verify your specific base width and desired display count before selecting hardware. Consult the AV mounting hardware category for related credenza accessories and complementary infrastructure.

Frequently Asked Questions

Q: What credenza base is the C3-24-LD1U compatible with?

A: The C3-24-LD1U is designed specifically for the Middle Atlantic 24-inch C3 Credenza base series. It is not a universal mount — confirm your credenza base model before ordering.

Q: What is the maximum display size supported?

A: The C3-24-LD1U supports displays from 40 to 98 inches.

Q: How much weight can the C3-24-LD1U hold?

A: The mount is rated for up to 150 lbs (68 kg), which covers the full supported screen size range including large-format 98-inch commercial panels.

Q: Is the display height adjustable after installation?

A: Yes. The C3-24-LD1U is height adjustable, allowing the installer to set optimal viewing position in the field after the credenza is placed.

Q: Does the mount support multiple displays?

A: No. The C3-24-LD1U is a single-display mount. For dual or multi-display configurations on a C3 credenza, a different model in the C3 display mount family is required.

Q: Is mounting hardware included?

A: Yes, mounting hardware is included with the C3-24-LD1U.

Jerry Tildsen

The C3-24-LD1U is a purpose-built upright for the Middle Atlantic 24-inch C3 Credenza platform — and the key spec to understand here is the 150-lb weight capacity paired with 98-inch max screen support. Those two numbers together mean you can confidently spec this for large-format commercial displays without stress-testing the structural limit.

Technical Highlights:

• 150 lb Load Rating: At 150 lbs capacity against a 98-inch panel that typically runs 100–130 lbs, you have real structural margin — not a marginal pass. That headroom matters in permanent installations expected to run for years without adjustment.
• Height Adjustability: Field-adjustable height is a practical asset on installations where seating layout or table height gets confirmed late in a project. You're not committed to a fixed position at the time of rough-in.
• 2.9-Inch Depth Profile: The 2.9-inch mount depth keeps the overall credenza footprint predictable. In exec suites or boardrooms with tight clearance between furniture and walls, that slim column profile avoids surprises during final placement.

Deployment Considerations:

• Verify the credenza base is a C3 24-inch unit before ordering — this mount does not cross-fit other C3 base widths or other Middle Atlantic credenza lines. The wrong base width means the upright column won't align with the base mounting points.
• The 60.5-inch overall column height (153.7 cm) drives total system height when combined with the credenza base — account for ceiling clearance and any HVAC or lighting obstacles directly above the credenza position during pre-installation site survey.

This mount is the right call for boardrooms, executive conference suites, and corporate briefing centers where a single large-format display (70–98 inches) needs to be integrated cleanly into a credenza furniture system — specifically where the C3 24-inch base is already specified or on-site.
