Panduit H2X2YL10 FiberRunner 2x2 10-Foot Yellow Fiber Routing Channel
Overview

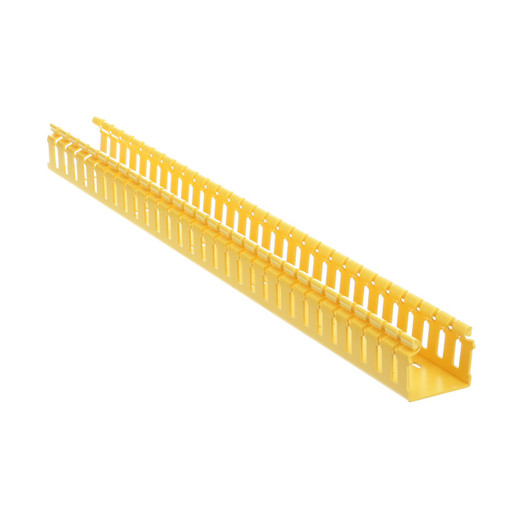

The Panduit H2X2YL10 is a 2-inch by 2-inch FiberRunner® slotted fiber routing channel, 10 feet long, designed for data centers and telecom central offices where controlled, protected routing of fiber and high-performance copper cabling is a hard requirement. This is the channel body — it pairs with the HC2YL10 snap-on cover and is secured using QuikLock™ FBC2X2YL couplers, giving you a complete, modular routing system you can spec and expand in sections.
Yellow color coding makes the FiberRunner system immediately distinguishable from copper pathways during installs and maintenance — a practical advantage in dense cable environments where mis-routes are expensive.
Key Features
- 2" x 2" Internal Channel (55.1mm x 48.8mm): Sized for substantial fiber bundle counts in structured cabling backbones. The slot design lets you add or re-route cables without disassembling the full run — a real time-saver during moves, adds, and changes.
- UL-94V-0 Flame Rating: Self-extinguishing PVC construction. In a live data center, a flammable pathway is a liability; V-0 is the threshold most facilities managers and AHJs require before signing off on plenum-adjacent cable management.
- NEBS Level 3 / Telcordia GR-63-CORE Compliance: Meets seismic, thermal, and environmental stress requirements for carrier-grade telecom facilities. If you're deploying in a CO or any NEBS-qualified space, the H2X2YL10 checks that box without workarounds.
- RoHS Compliant: Restriction of Hazardous Substances compliance matters for enterprise and government procurement where environmental material restrictions are part of the spec sheet review.
- 10-Foot (3.05m) Section Length: Standard 10-foot runs reduce coupling points compared to shorter sections, which means fewer potential weak spots in long horizontal runs. Carton quantity of 10 units simplifies ordering for full rack rows or room-scale deployments.
- QuikLock Coupler System (FBC2X2YL): Tool-free channel-to-channel joining keeps installation fast. The HC2YL10 hinged cover snaps on after cabling, so you're not threading cables through a closed trough.
- Snap-In Cover Compatibility (HC2YL10): The channel ships without the cover — order the HC2YL10 separately if you need enclosed protection. This also means you can leave sections open during active installs and cover once the run is complete.
Integration & Compatibility
The H2X2YL10 is part of Panduit's FiberRunner system and is designed to work with the full range of fiber cable management fittings: couplers, brackets, horizontal and vertical fittings, and wall-entry hardware. Additional support brackets are required for horizontal runs — consult Panduit's FiberRunner system guide for support spacing requirements. If you're planning a complete pathway infrastructure, review the cable management planning guide for tray sizing and fill-ratio considerations, and pair with Panduit FiberRunner couplers and fittings for a complete bill of materials.
What's in the Box
- 1x Panduit H2X2YL10 FiberRunner 2"x2" slotted channel, 10 ft, yellow
Frequently Asked Questions
Q: Does the H2X2YL10 include the cover?
A: No. The H2X2YL10 is the channel body only. The compatible snap-on cover is the HC2YL10, sold separately.
Q: What coupler do I use to join H2X2YL10 sections?
A: Use the Panduit FBC2X2YL QuikLock coupler to connect channel sections and fittings end-to-end.
Q: Is the H2X2YL10 rated for telecom central office environments?
A: Yes. It meets requirements for relevant tests in Telcordia GR-63-CORE and NEBS Level 3, making it suitable for carrier-grade and CO deployments.
Q: Is the H2X2YL10 RoHS compliant?
A: Yes. The H2X2YL10 is RoHS compliant and also UL Listed per the 2024 standard for fiber optic cable routing assemblies.
Q: Do I need additional hardware for horizontal runs?
A: Yes. Panduit specifies that additional support brackets are required in horizontal applications. Spacing requirements are defined in the FiberRunner system documentation.
The H2X2YL10 is the channel section I spec when a project calls for NEBS Level 3 compliance and the design can't afford a non-compliant pathway holding up carrier approval. That GR-63-CORE seismic and environmental qualification is genuinely hard to find on off-brand trough — Panduit's FiberRunner earns its place on the BOM here.
Technical Highlights:
- UL-94V-0 PVC: Self-extinguishing at the material level — not just the assembly. In a live CO with 24/7 uptime obligations, the difference between V-0 and V-2 is the difference between a contained event and a facility shutdown.
- 2" x 2" (55.1mm x 48.8mm) cross-section: Comfortably handles high-density fiber backbone runs. The slot profile means you're not delidding the entire channel to add a drop — pull the cover section, route, replace.
- 10-ft section length: Fewer couplers per 100-foot run compared to 6-ft alternatives — each coupler is a potential alignment issue, so minimizing them in long horizontal backbone runs matters for both install time and long-term cable health.
Deployment Considerations:
- This SKU ships as channel only — budget the HC2YL10 cover and FBC2X2YL couplers separately. Missing either from your PO means the run sits open or unjoined on install day.
- Horizontal runs require additional support brackets at Panduit-specified intervals. Skipping this step risks sag over time, which puts lateral stress on fiber bends — a slow failure mode that won't show up during commissioning.
Best fit: structured cabling backbone in a carrier-grade telecom facility or enterprise data center where NEBS Level 3 and UL-94V-0 are written into the facilities standard, not optional.
