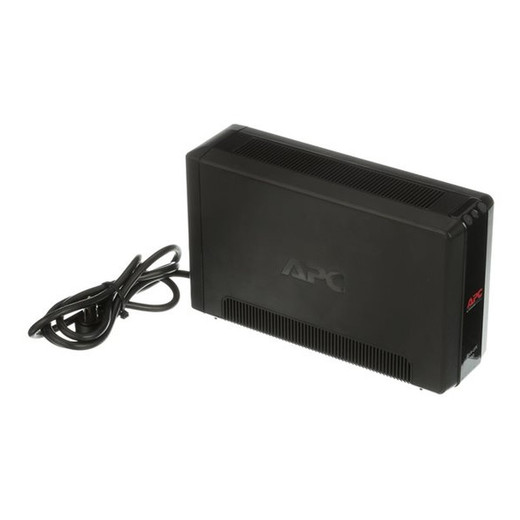

APC by Schneider Electric BX850M Compact Tower UPS with AVR and LCD Display
Overview
The APC BX850M is an 850VA/510W compact tower UPS designed to keep workstations, network equipment, and security appliances running through power disturbances — brownouts, surges, and brief outages alike. At 850VA/510W, it covers a single workstation with peripherals, a small NVR with attached storage, or a network closet edge switch and access layer gear. The built-in Automatic Voltage Regulation (AVR) corrects undervoltage (down to 88V) and overvoltage (up to 139V) without switching to battery, which matters in facilities with notoriously unstable utility power — every unnecessary battery discharge shortens battery lifespan. An LCD status display gives you real-time load percentage, battery charge level, and input voltage at a glance, without needing software installed.
Eight NEMA 5-15R outlets split into two banks: four battery-backed outlets for gear that must stay online and four surge-only outlets for peripherals where uptime isn't critical. This lets you prioritize your switch or NVR on battery while keeping a monitor or printer on surge protection — a practical layout that stretches your battery runtime on the devices that actually matter. For UPS and battery backup options across power ranges, the BX850M sits at the practical entry point for single-node edge protection.
Key Features
- 850VA / 510W Capacity: Enough headroom for a typical workstation, NVR, or edge switch — check your connected load against the 510W real-power ceiling before deploying. VA ratings are often misleading; 510W is the actual working limit.
- Automatic Voltage Regulation (AVR): Corrects input voltage from 88V to 139V without touching the battery. In electrically noisy environments — retail floors near HVAC, warehouses with heavy motor loads — AVR alone extends battery life significantly by reducing unnecessary battery cycling.
- 8 Outlets (4 Battery + 4 Surge-Only): Battery bank covers your critical load; surge-only bank handles non-critical peripherals. This segmentation is intentional — it maximizes battery runtime on what matters and avoids wasting capacity on devices that can tolerate a brief outage.
- 1,103 Joule Surge Energy Rating: Above-average for a unit in this class. Handles transient surges from nearby lightning strikes and power switching events. Not a substitute for whole-building surge suppression at the panel, but solid last-line protection for connected equipment.
- Battery Runtime — 2.1 Min at Full Load / 8.9 Min at Half Load: At full 510W, you get just over two minutes — enough for a clean OS shutdown sequence. At half load (255W), nearly nine minutes. Size your load accordingly if you need extended runtime; at full draw this is a graceful-shutdown unit, not a long-run UPS.
- LCD Status Display: Shows load level, battery state of charge, and input voltage in real time. Removes the guesswork during brownouts — you can see whether AVR is compensating or whether the battery has actually engaged.
- USB Interface: Connects to a host system for PowerChute Personal Edition or compatible UPS management software. Enables graceful automated shutdown when battery reaches a configured threshold — essential for unattended deployments.
- Network and Coax Data Line Protection: Built-in RJ-45 (10/100/1000 Base-T) and coaxial connectors for CATV/SATV/modem/AV pass-through surge protection. Covers the data lines that a standard power strip ignores — relevant for edge deployments with both power and data running to the same device.
- Green Mode / Energy Management: Reduces idle energy consumption in normal operating conditions. Marginal at the single-unit level, but measurable across a large deployment of edge UPS units running 24/7.
- Sealed Lead Acid Battery, 12-Hour Recharge: Standard VRLA chemistry — field-replaceable without tools in most APC back-UPS form factors. Plan for a 12-hour recharge window after a full discharge before the unit returns to full runtime capacity.
- Regulatory Approvals: UL 1778, FCC Part 15 Class B, ENERGY STAR (USA), and California CEC Battery Charger compliance. UL 1778 is the relevant safety standard for UPS equipment — confirms the unit has been tested to recognized safety criteria for uninterruptible power supplies.
Integration and Compatibility
The BX850M connects to any host system via USB for software-based monitoring and managed shutdown. It accepts power management via APC's PowerChute Personal Edition (Windows/Linux), which monitors battery state and triggers graceful shutdown at configurable thresholds. The NEMA 5-15P input plug connects to any standard 15A household or commercial outlet — no dedicated circuit required for typical loads. Input frequency is 60 Hz ± 3 Hz, making this a North American 120V unit; it is not suitable for international 230V deployments.
The 10/100/1000 Base-T Ethernet pass-through surge protection covers network-connected devices. The coaxial pass-through handles CATV, SATV, modem, and AV coax lines — useful in deployments where a cable modem or satellite receiver shares the same protection circuit. For security integrators pairing this with network video recorders or small PoE switches, verify your combined load stays under 510W; a 4-channel NVR with drives plus a small PoE switch typically runs 80–150W at steady state, well within range.
Compact tower dimensions (7.48
