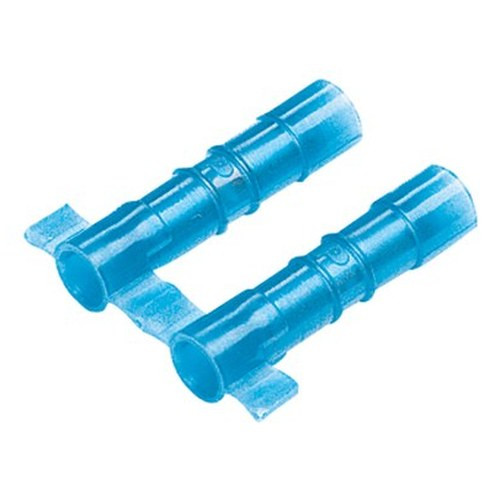

Panduit BSN14-3K Nylon-Insulated Butt Splice Connector

The Panduit BSN14-3K is a blue nylon-insulated butt splice rated for 18-14 AWG conductors (1–2.5 mm²), delivering a 600V, 125°C-rated connection in a compact 0.95 in. body. It ships in a standard pack of 3,000 — sized for production wiring runs, panel shops, and security installation contractors who burn through splices at volume. The Panduit wiring and connectivity line is a consistent choice in commercial low-voltage work, and BSN14-3K fits squarely in that tradition.

Key Features

• 18-14 AWG range (1–2.5 mm²): Covers the most common control-wiring gauges in access control, alarm panels, and camera power runs — one SKU handles the majority of your field splices without swapping connector bins.
• 600V maximum voltage rating: Compliant for both low-voltage signal wiring and standard branch-circuit applications up to 600V, giving you flexibility across panel and device wiring without needing a separate high-voltage splice.
• 125°C UL and CSA temperature rating: Survives proximity to heat sources common in enclosures — motor control panels, UPS cabinets, and tightly packed rack enclosures — without insulation degradation over time.
• Nylon insulation: Nylon resists abrasion and chemical exposure better than vinyl, which matters in industrial or warehouse environments where wiring may contact conduit edges, solvents, or cleaning agents.
• 0.17 in. max insulation diameter: Accommodates standard-jacketed control cable without stripping back insulation — confirm your cable OD before ordering if using heavy-wall or specialty jacketing.
• 5/16 in. strip length: Standardized strip length means technicians can pre-set their wire stripper and maintain consistent crimp quality across a large splice run — reduces rework on high-volume jobs.
• UL 486C and CSA C22.2 No. 65 listed: Both UL and CSA listing means the BSN14-3K satisfies the connector standards required by inspectors in the US and Canada. If your job requires listed connectors — and most commercial work does — this box is covered.
• Blue color coding: Industry-standard blue for 18-14 AWG range. Consistent with the wider wire management color-coding scheme most installers already follow — speeds visual QC during inspection.
• 3,000-piece standard pack: Priced and packaged for contractors, not retail. A 3K pack supports large wiring harness jobs or a full quarter of panel-room splice work without constant reordering.

Integration and Compatibility

The BSN14-3K connects any two 18-14 AWG conductors in a straight inline splice — compatible with copper stranded or solid wire within the rated gauge range. Use with a ratchet crimping tool sized for insulated butt splices (confirm tool die compatibility with your crimper manufacturer). These connectors are well-suited to access control panel wiring, alarm system homerun splices, and low-voltage camera power distribution where conductors need to be extended or joined mid-run. The nylon insulation and dual UL/CSA listing make BSN14-3K appropriate for use inside listed enclosures and exposed conduit runs in commercial and light industrial spaces. For broader installation planning, see the low-voltage wiring guide for connector selection guidance by application.

Frequently Asked Questions

Q: What wire gauges does the BSN14-3K accept?

A: The BSN14-3K is rated for 18-14 AWG conductors, equivalent to 1–2.5 mm² metric sizing.

Q: What is the voltage rating for the BSN14-3K?

A: Maximum voltage is 600V, covering both low-voltage control wiring and standard branch-circuit applications.

Q: Is the BSN14-3K UL listed?

A: Yes. The BSN14-3K meets UL 486C and CSA C22.2 No. 65 standards, satisfying inspection requirements in both the US and Canada.

Q: What temperature rating does the BSN14-3K carry?

A: Both UL and CSA temperature ratings are 125°C, suitable for use near heat-generating equipment in enclosures.

Q: How many splices are in a standard pack?

A: The standard package quantity is 3,000 pieces per box.

Q: What is the recommended wire strip length for the BSN14-3K?

A: Panduit specifies a 5/16 in. strip length for consistent crimp quality.

Karl Wilson

The BSN14-3K is one of those consumables that looks trivial until you're in the middle of a 200-splice panel termination and your connector bin runs dry. The 3,000-piece pack format is deliberately contractor-scale — and the 125°C dual UL/CSA rating means I don't have to think twice about using these inside a crowded enclosure next to a transformer or power supply.

Technical Highlights:

• Dual standard listing (UL 486C / CSA C22.2 No. 65): Covers inspection requirements on both sides of the US-Canada border without sourcing two different connector SKUs for cross-border projects.
• 600V / 125°C rating: Handles everything from 12V access control wiring to 120V branch splices within the same connector — the temperature headroom is especially useful inside sealed enclosures where ambient runs high.
• Nylon vs. vinyl insulation: Nylon holds up to repeated flex and abrasion in wireways; vinyl can crack at low temperatures or nick against conduit edges. For permanent in-wall or in-conduit splices, nylon is the right material call.

Deployment Considerations:

• The 0.17 in. max insulation diameter is a real constraint — verify your cable's OD before ordering if you're working with heavy-wall plenum or armored cable; you may need a larger splice series.
• Pre-set your stripper to exactly 5/16 in. before starting a large run — inconsistent strip length is the single most common cause of failed pull-tests on insulated butt splices.

The BSN14-3K is the right call for commercial security and access control panel shops running high volumes of 18-14 AWG splices where UL/CSA listing is a job-spec requirement — the 3K pack keeps the supply room stocked without over-buying into a SKU you won't exhaust.
