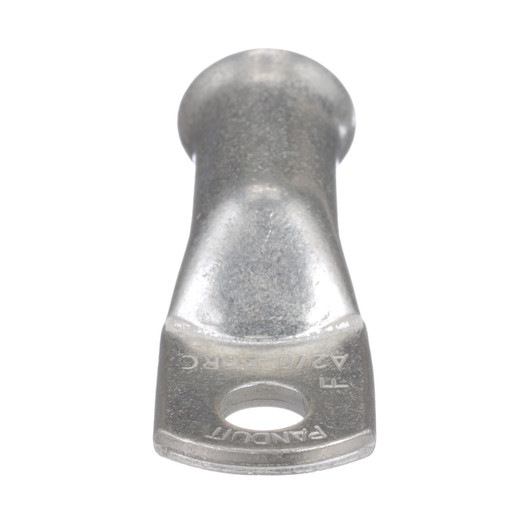

Panduit A2/0-38R-C 2/0 AWG 3/8" Compression Lug 100-Pack

Panduit A2/0-38R-C 2/0 AWG Compression Lug 3/8" Stud

The Panduit A2/0-38R-C Pan-Lug compression terminal delivers reliable, code-compliant wire termination for 2/0 AWG conductors on 3/8-inch stud applications. Engineered for high-current power distribution in UPS installations, battery banks, and critical infrastructure projects, this tin-plated copper lug combines flared-entry ease of installation with military-grade pullout strength. Each 100-piece carton supports large-scale datacenter builds, access control power risers, and surveillance system backbone deployments where termination integrity directly affects uptime.

Key Features

• 2/0 AWG wire compatibility with 3/8" stud mounting — sized for backbone power feeds and battery interconnects
• Tin-plated copper construction — superior conductivity with corrosion resistance for long-term reliability in equipment rooms and outdoor enclosures
• Flared entry design — guides wire insertion during compression, reducing prep time and installation errors on jobsites
• Embossed wire size marking — permanent identification prevents mix-ups during multi-gauge termination projects
• cULus Listed per UL 486A-486B — meets US and Canadian code requirements for power applications, eliminating inspection delays
• Military spec pullout compliance — engineered to withstand mechanical stress in vibration-prone rack environments and mobile installations
• 100-pack bulk packaging — cost-effective supply for battery strings, UPS cabinets, and multi-site rollouts

Compression lugs remain the gold standard for permanent wire termination in commercial low-voltage and power systems. Unlike mechanical set-screw terminals that loosen under thermal cycling, properly crimped compression lugs create a cold-weld joint that maintains contact pressure across decades of service. The A2/0-38R-C's tin plating provides a critical corrosion barrier in the mixed-metal environments common to security and IT infrastructure — where copper conductors meet aluminum busbars, steel studs, and brass hardware. The flared entry accelerates field installation: wire seats predictably in the barrel without hang-ups, and the embossed size marking (visible post-crimp) provides at-a-glance verification during QA walkthroughs and future service calls.

In datacenter and large-facility contexts, 2/0 AWG terminates the heavy-gauge feeders that power rack PDUs, modular UPS arrays, and centralized battery banks. The 3/8-inch stud size matches the connection points on industrial-grade circuit breakers, busbar lugs, and battery terminal posts rated for hundreds of amperes continuous load. Installers working battery strings for backup power or energy storage systems rely on the A2/0-38R-C's high pullout strength to prevent connection failures under the mechanical stresses of battery swaps, seismic activity, and thermal expansion. Surveillance integrators encounter this lug at the headend — terminating the mains feed into the central UPS that protects NVRs, core switches, and PoE injector racks from utility interruptions.

The cULus dual-listing simplifies cross-border projects and ensures acceptance by inspectors enforcing NEC Article 110 workmanship standards and CEC equivalents. Meeting US Military wire pullout specifications means the lug has survived test regimes that exceed typical commercial deployments — relevant for defense contractors, critical infrastructure operators, and integrators serving clients with aerospace or marine-grade reliability expectations. The 100-count packaging aligns with the economies of scale in enterprise builds: a single carton supports a 50-cell battery string (two lugs per interconnect) or feeds a dozen rack PDUs, reducing procurement overhead and ensuring lot consistency across the entire installation.

Panduit Pan-Lug compression terminals are specified when termination failure is not an option — UPS systems protecting 911 centers, hospital imaging suites, and financial trading floors; battery backup for airport CCTV headends and transit access control hubs; primary power feeds into modular datacenters and co-location facilities. The A2/0-38R-C sits at the intersection of electrical integrity and operational continuity, turning wire and stud into a permanent, inspector-approved connection that integrators and facility managers trust for the next 20 years of service.
