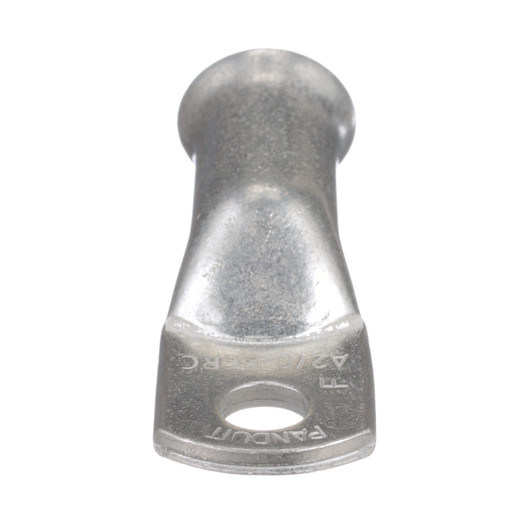

Panduit A1/0-56R-C 1/0 AWG 5/16" Compression Lug

Panduit A1/0-56R-C Pan-Lug™ Compression Lug for 1/0 AWG Battery Cable

The Panduit A1/0-56R-C is a heavy-duty compression lug engineered for reliable termination of 1/0 AWG battery cables to 5/16" stud connections. Designed for backup power, UPS, and battery bank installations where pullout strength and long-term conductivity are non-negotiable, this tin-plated copper lug delivers cULus-listed performance in a 100-pack format optimized for multi-cabinet or rack-level deployments. The flared barrel entry and embossed wire-size marking reduce installation time and field errors — critical when terminating dozens of battery strings under service windows or during emergency power commissioning.

Key Features

• 1/0 AWG capacity, 5/16" stud — precise sizing for common battery post and busbar connections in 12V–48V DC systems
• Tin-plated copper construction — high conductivity with corrosion resistance for long service life in battery enclosures
• Compression termination — cold-weld mechanical bond eliminates crimp-tool variability and delivers consistent pullout strength
• Flared entry barrel — guides stranded wire insertion without pre-twisting, reducing prep time per termination
• Embossed wire size — permanent marking on lug body prevents mix-ups when working across multiple wire gauges
• cULus Listed to UL 486A-486B — third-party verified for power applications in US and Canada
• Meets US Military pullout specs — high-vibration and shock-load performance for critical infrastructure and defense installations
• 100-pack — batch quantity reduces per-lug cost and ensures you have spares for multi-string battery cabinets

Compression lugs form a gas-tight mechanical bond by deforming the barrel around the conductor under hydraulic or manual crimping force. Unlike traditional crimp connectors that rely on die geometry and operator technique, compression creates a cold-weld joint with predictable contact resistance and pullout strength independent of installer skill level. The Panduit A1/0-56R-C uses a seamless copper barrel with a flared entry that accepts 1/0 AWG stranded wire (53.5 kcmil cross-section) without pre-forming. The tin plating provides a sacrificial barrier against oxidation in battery rooms where hydrogen off-gassing and temperature cycling accelerate corrosion. Embossed wire-size marking (visible post-crimp) prevents the common field error of mismatched lug-to-wire sizing during service or expansion work when original as-builts are unavailable.

This lug is purpose-built for DC power distribution in UPS battery strings, telecom rectifier plants, solar inverter arrays, and emergency lighting systems where a single failed termination can cascade into system-wide downtime. The 5/16" stud bore fits standard battery posts on valve-regulated lead-acid (VRLA) and lithium iron phosphate (LiFePO4) modules commonly deployed in 12V, 24V, and 48V configurations. The 2.01" overall length provides clearance for stacking multiple lugs on shared busbars or paralleling battery banks without mechanical interference. In multi-cabinet installs (think 10–40 battery strings in a data center or 911 center), the 100-pack eliminates mid-job material runs and ensures consistent vendor stock across the entire termination job. Tin plating maintains low contact resistance over 10+ year service intervals typical of standby battery deployments, avoiding the re-termination costs associated with bare copper oxidation.

cULus listing to UL 486A-486B confirms this lug meets North American safety standards for electrical connectors in power circuits, covering temperature rise, current-carrying capacity, and mechanical strength under fault conditions. Compliance with US Military wire pullout specifications means this termination will hold under shock loads and vibration profiles that exceed commercial building requirements — relevant for installations in seismic zones, transportation infrastructure, or anywhere backup power must survive physical disturbance. The flared entry and embossed sizing aren't convenience features; they're install-error mitigations that matter when you're terminating 200 lugs in a battery room on a weekend cut-over and can't afford a callback for a floated connection or wrong-gauge mismatch discovered during commissioning load tests.
