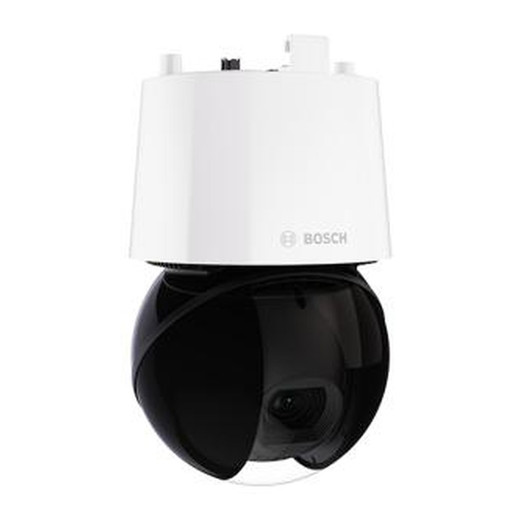

Bosch NDP-7802-Z40L AUTODOME 7100i IR 2MP Outdoor PTZ Camera

Bosch NDP-7802-Z40L PTZ Network Camera

Overview

The Bosch NDP-7802-Z40L is a robust pan-tilt-zoom network surveillance camera engineered for demanding indoor and outdoor security deployments. This 2MP PTZ unit combines wired connectivity with PoE power delivery, 40x optical zoom capability, and an IK10 vandal-resistant construction. The NDP-7802-Z40L supports multiple video compression standards and integrated infrared night vision, making it suitable for 24/7 monitoring applications where detail capture and environmental resilience are critical.

Key Features

• 2MP Video Capture: Delivers 1920 x 1080 resolution at up to 30 fps, with additional resolution options including 1536 x 864, 1280 x 720, 704 x 576, and lower bandwidth resolutions for network-constrained environments.
• 40x Optical Zoom Varifocal Lens: Enables field-of-view flexibility and long-distance object identification without digital zoom degradation. Varifocal design allows pinpoint focus adjustment across the zoom range.
• PoE (802.3af) Power: Single-cable deployment via standard Power over Ethernet. Eliminates separate power runs and simplifies installation in locations where discrete wiring is required.
• IP66 Environmental Rating: Sealed against water jets and dust ingress. Suitable for outdoor mounting, rooftop installations, and corrosive or high-humidity environments.
• IK10 Vandal Resistance: Impact-rated housing withstands 20 joules of kinetic force. Standard requirement for public-facing or accessible mounting locations.
• Day/Night IR Capability: Integrated infrared illumination enables surveillance in complete darkness. Automatic IR on/off switching maintains image clarity in mixed-lighting conditions.
• Triple Codec Support: Simultaneous H.265, H.264, and MJPEG compression. H.265 delivery reduces bandwidth and storage overhead by up to 50% compared to H.264 at equivalent quality; H.264 ensures universal playback compatibility; MJPEG is available for streaming or archive applications.
• Built-in Microphone: Audio capture for situational awareness and forensic review. Supports synchronized audio-video recording in compatible management systems.
• Pan-Tilt-Zoom Mechanics: Full-range pan/tilt actuation with preset position recall. Enables rapid repositioning for wide-area coverage from a single mounting point.

Integration & Compatibility

The NDP-7802-Z40L connects via standard wired Ethernet (RJ45), supporting ONVIF-compliant video management systems and third-party NVR platforms. Dual-streaming output allows simultaneous H.265 high-quality recording and H.264 or MJPEG secondary streams for mobile or low-bandwidth remote viewing. The microphone input integrates with VMS audio recording where licensing permits.

Jerry Tildsen

I've specified the Bosch NDP-7802-Z40L in both indoor and outdoor surveillance deployments where zoom reach and environmental durability matter. The 40x optical zoom is the primary differentiator—it delivers genuine telephoto capability without the image quality loss that digital zoom introduces. The IK10 vandal-resistant rating combined with IP66 sealing makes this camera viable in exposed locations where standard domes would fail within a season.

Technical Highlights:

• Optical Reach: 40x zoom allows identification of subjects 100+ feet away while maintaining 2MP resolution. Particularly effective for parking lots, perimeter monitoring, and campus-scale deployments.
• Codec Efficiency: H.265 compression reduces bandwidth demand to roughly half that of H.264. In systems with dozens of cameras or limited WAN capacity, this translates to measurable infrastructure cost reduction.
• PoE Simplicity: 802.3af delivery means standard gigabit PoE injectors work without upgrade to PoE+ switches. Reduces infrastructure cost on retrofit projects.

Deployment Considerations:

• Confirm your VMS supports ONVIF Profile S (at minimum) for PTZ control. Legacy NVR platforms may require vendor-specific integration plugins.
• Position presets should be configured during commissioning to minimize operator training time. Document pan/tilt/zoom coordinates for each monitored zone.
• Verify that your PoE infrastructure can sustain worst-case 12.95W draw during simultaneous pan, tilt, and zoom activity. Under-provisioned PoE can cause brownouts.

The NDP-7802-Z40L is a pragmatic choice for integrators who need zoom and durability without deploying separate fixed and PTZ cameras. Budget 1–2 hours for network commissioning and preset configuration.
